8-1
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of the electrical
parts list.
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
SLV-EX5/EX8S/EX9S
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

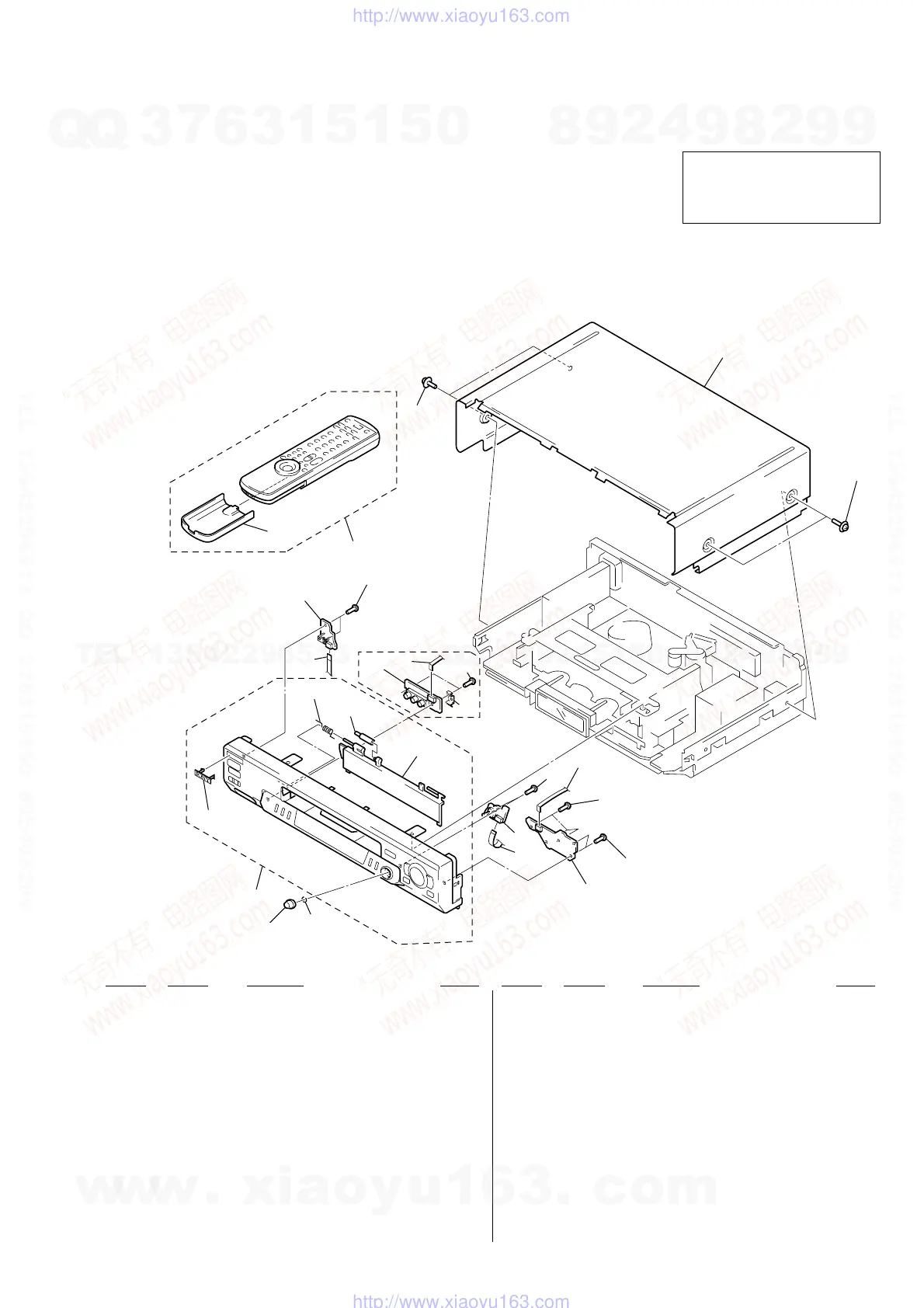

8-1-1. FRONT PANEL AND CABINET ASSEMBLIES
1 3-057-158-31 KNOB, ETR (EX9S)
1 3-057-158-41 KNOB, ETR (EX5/EX8S)
2 3-055-077-01 SPRING, ETR (P5)
3 X-3950-285-1 PANEL ASSY, FRONT (EX5)
3 X-3950-287-1 PANEL ASSY, FRONT (EX8S)
3 X-3950-288-1 PANEL ASSY, FRONT (EX9S)
5 3-943-995-51 EMBLEM (NO.5), SONY
6 3-953-432-01 SPRING (GE), FL
7 1-792-428-11 CABLE, FLAT (FDS-6)
* 8 A-6713-710-A DS-92 BOARD, COMPLETE
* 9 A-6713-711-A KK-24 BOARD, COMPLETE
10 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
* 11 A-6713-715-A FJ-26 BOARD, COMPLETE (EX8S)
* 11 A-6713-723-A FJ-26 BOARD, COMPLETE (EX9S)
12 3-057-165-11 PLATE, EARTH (EX8S/EX9S)
* 13 A-6713-712-A MF-321 BOARD, COMPLETE
14 1-792-427-11 CABLE, FLAT (FMF-39)
15 3-710-901-61 SCREW, TAPPING
16 3-057-168-41 CASE, UPPER (EX5/EX8S)
16 3-059-484-11 CASE, UPPER (EX9S)
17 1-418-873-11 COMMANDER, STANDARD (RMT-V299A)
(EX9S)
17 1-418-873-21 COMMANDER, STANDARD (RMT-V299B)
(EX5/EX8S)
18 3-709-129-01 COVER, BATTERY (for RMT-V299A/V299B)
19 1-792-426-11 CABLE, FLAT (FKK-3)
20 1-792-430-11 CABLE, FLAT (FFJ-3) (EX8S/EX9S)
2
1
3
5
6
13
14
17
15
16
15
10
11
20
10
12
10
10
10
8
7
19
9
not
supplied
18
EX8S/EX9S
