8-2

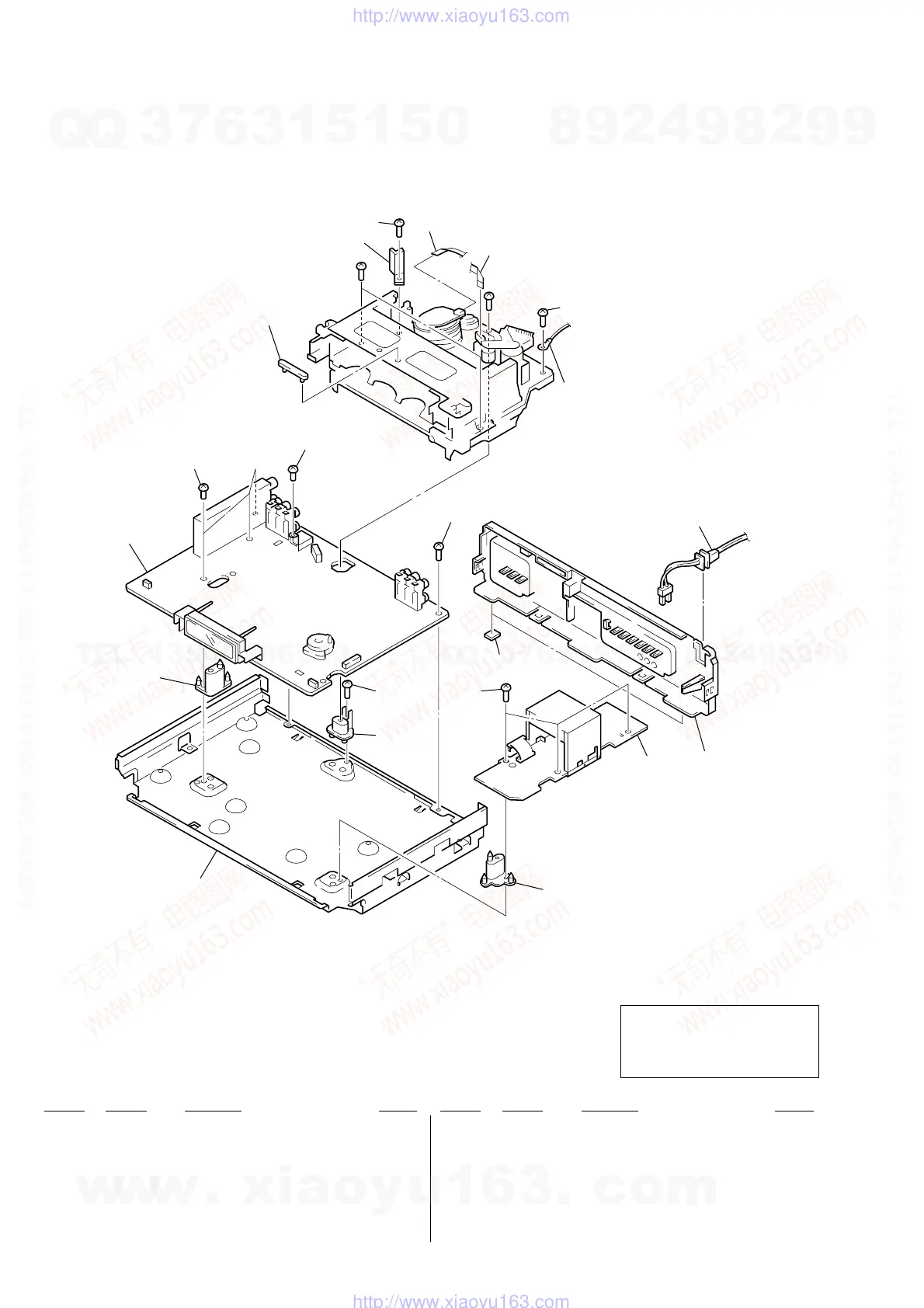

8-1-2. CHASSIS ASSEMBLY
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
51
52
53
54
53
53
58
not
supplied
#1
#1
not
supplied
not
supplied
53
57
53
53
56
61
not
supplied
60
62
59
51
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 3-959-383-01 BASE (R), MD
* 52 A-6713-720-A MA-377 BOARD, COMPLETE (EX5)
* 52 A-6713-721-A MA-377 BOARD, COMPLETE (EX8S)
* 52 A-6713-722-A MA-377 BOARD, COMPLETE (EX9S)
53 3-970-608-21 SUMITITE (B3), +BV
54 1-792-431-11 CABLE, FLAT (FMD-16)
56 3-959-372-21 CUSHION, FOOT
057 1-791-157-21 CORD, POWER
58 3-057-169-71 PANEL, REAR (EX8S/EX9S)
58 3-057-169-81 PANEL, REAR (EX5)
59 1-792-425-11 CABLE, FLAT (FAC-7)
60 X-3947-568-1 TC (N17S) ASSY
* 61 1-468-495-11 POWER BLOCK (PSM17-501)
62 3-979-112-01 SCREW SW (+) BVTP 3X10
