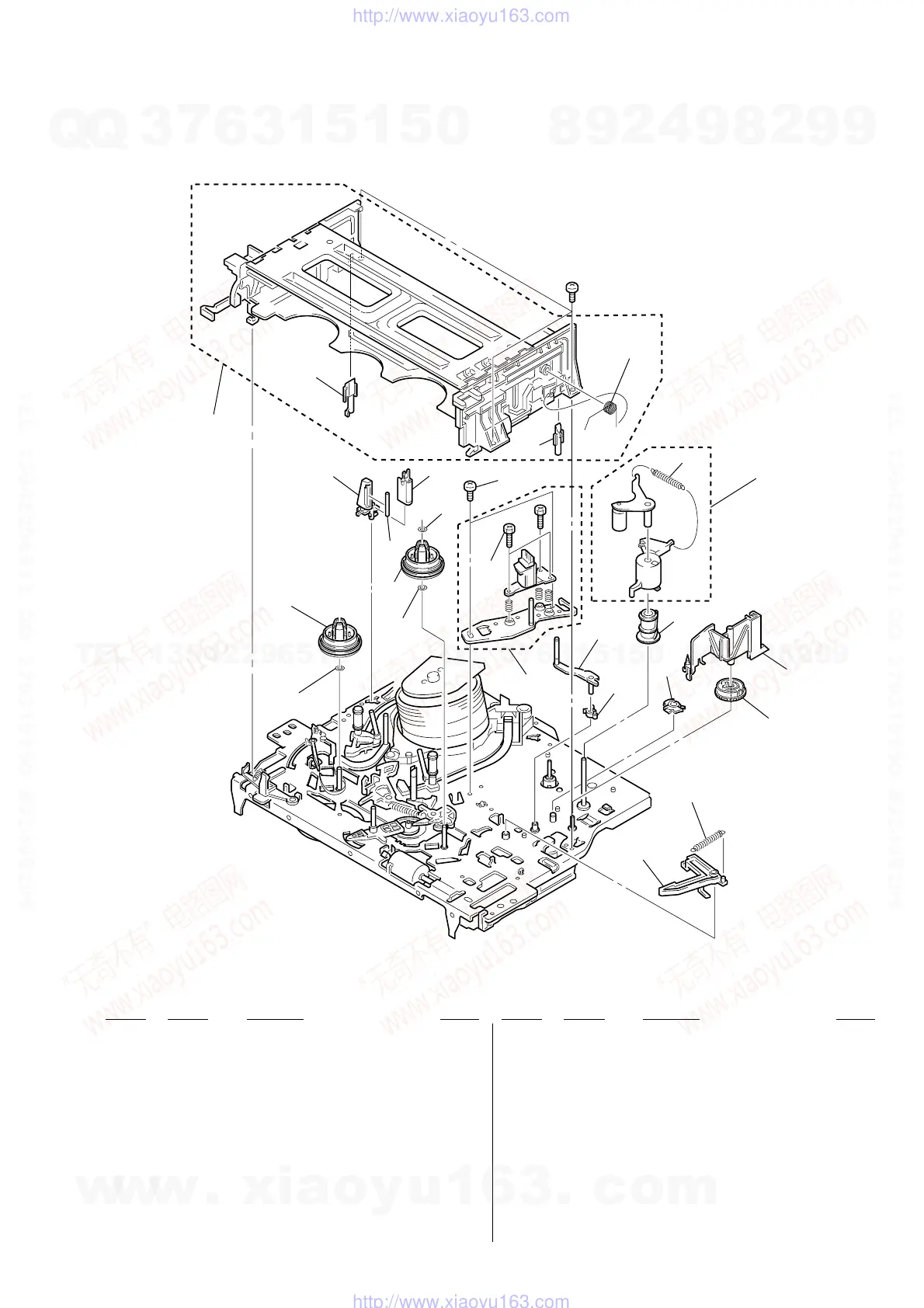

8-1-3. MECHANISM CHASSIS ASSEMBLY (1)
707
708
710
709
712
711
706
704
723
725
705
703
701
702
701
722
721
720
719
713
716
714
715
717
718
#3
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
701 3-977-509-01 WASHER, THRUST
702 3-977-507-01 TABLE, REEL (S)
703 3-977-508-01 TABLE, REEL (T)
704 1-500-144-11 HEAD, FE
705 3-977-495-01 SHAFT TG2
706 3-977-494-01 HOLDER, FEH
707 A-6759-619-B FL COMPLETE ASSY
708 3-977-535-01 PLATE, LUMINOUS (END SENSOR)
709 3-977-536-01 PLATE, LUMINOUS (TOP SENSOR)
710 3-970-471-01 SPRING (DECK OPEN), TORSION
711 A-6759-863-B PRESS BLOCK ASSY, PINCH
712 3-958-455-01 SPRING (PINCH), TENSION
713 3-977-447-01 GEAR, ELEVATOR
714 3-977-514-01 OPENER, LID
715 3-977-441-03 GEAR, PINCH PRESSING
716 3-977-445-02 GEAR, TG8 ARM DRIVING
717 3-062-763-01 SPRING, EXTENSION (RVS BRAKE)
718 X-3947-582-1 ARM ASSY, RVS BRAKE
719 3-977-446-01 GEAR, TG8 ARM
720 X-3947-590-1 TG8 ASSY
721 A-6775-791-A HEAD BLOCK ASSY, ACE FFC
722 3-974-556-11 + HEXA TT 2.6X9 (TAPER)
723 3-979-508-01 SCREW + HEXA TP SW 3X8
725 3-977-443-01 WASHER, STOPPER
