SLV-EX50/EX80S/EX90S
8-1
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
NOTE:
-XX, -X mean standardized parts, so they
may have some differences from the original
one.
Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
The mechanical parts with no reference
number in the exploded views are not
supplied.

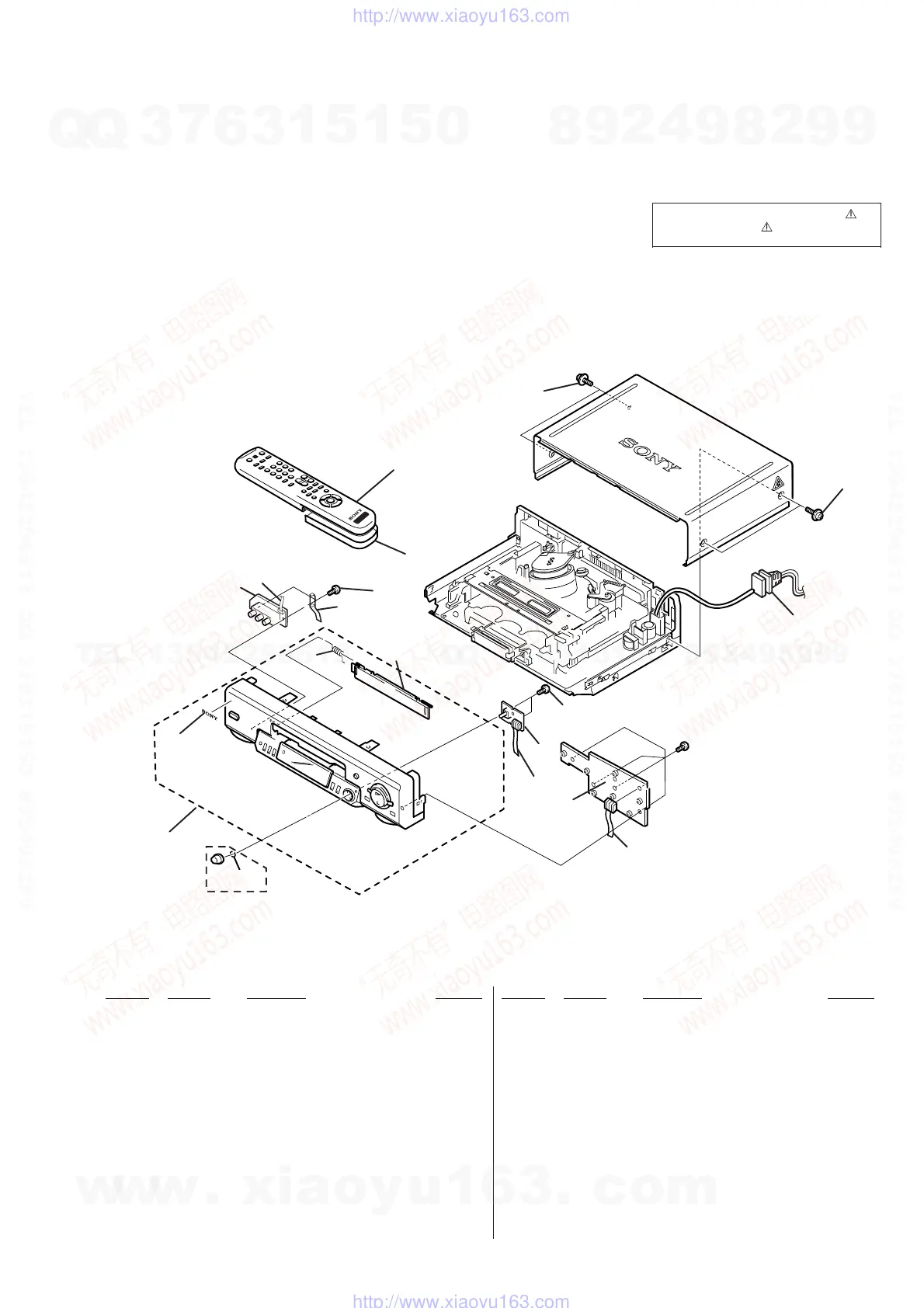

8-1-1. FRONT PANEL AND UPPER CASE SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
VIDEO
1
13
2
3
3
3
5
4
6
7
8
7
10
9
10
11
14
not supplied
not supplied
12
1 X-3951-617-1 PANEL ASSY, FRONT (EX90SAR)
1 X-3951-618-1 PANEL ASSY, FRONT (EX80SAR)
1 X-3951-619-1 PANEL ASSY, FRONT (EX50AR)
1 X-3951-620-1 PANEL ASSY, FRONT (EX90SBR)
1 X-3951-621-1 PANEL ASSY, FRONT (EX80SBR)
1 X-3951-622-1 PANEL ASSY, FRONT (EX50BR)
2 3-953-432-01 SPRING (GE), FL
3 4-921-277-41 SCREW (B2.6 x 8), TAPPING, BIND
* 4 A-6713-942-A DM-098 COMPLETE PWB
5 1-757-552-12 FLAT CABLE FDM-010
* 6 A-6713-943-A DI-081 COMPLETE PWB
7 1-757-553-11 FLAT CABLE FDI-002
* 8 A-6713-941-A FJ-031 COMPLETE PWB (EX90S)
The components identified by mark or
dotted line with mark are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
* 8 A-6713-947-A FJ-031 COMPLETE PWB (EX80S)
* 8 A-6713-949-A FJ-031 COMPLETE PWB (EX50)
9 1-791-157-31 CORD, POWER (EX50AR/EX80SAR/EX90SAR)
9 1-757-665-11 CORD, POWER (EX50BR/EX80SBR/EX90SBR)
10 3-710-901-62 SCREW, TAPPING
11 1-476-475-71 COMMANDER, STANDARD (RMT V-312)
(EX50/EX80S)
11 1-476-475-81 COMMANDER, STANDARD (RMT V-312A)
(EX90S)
12 3-709-433-11 COVER, REMOTE CONTROL BATTERY
13 3-943-995-51 EMBLEM (NO.5), SONY
14 3-055-077-01 SPRING, ETR (P5)
