SLV-EX50/EX80S/EX90S
8-2
60
55
51
51
#1
#1
#1
52
53
53
53
53
53
54
53
59
not
supplied
not supplied

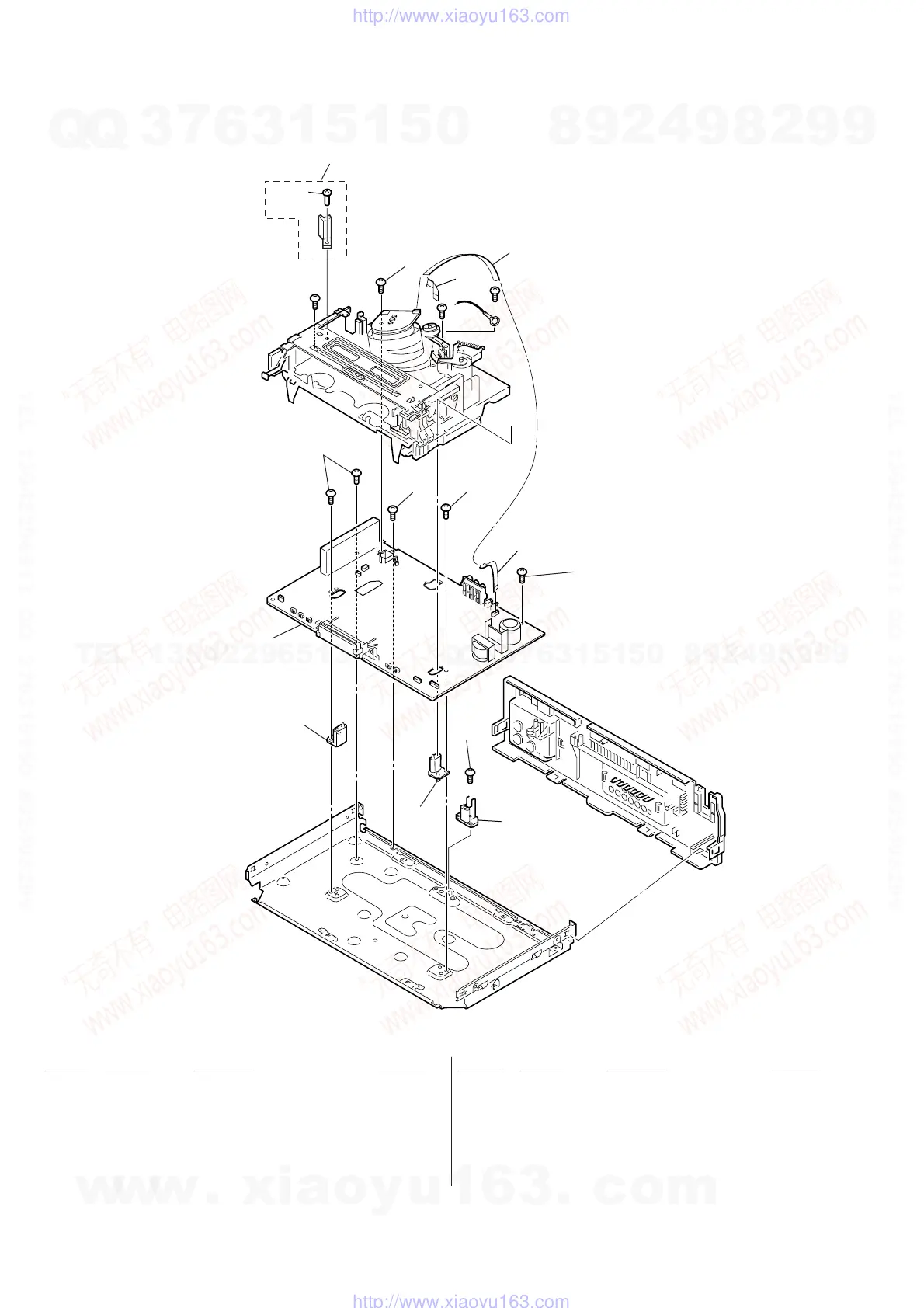

8-1-2. CHASSIS SECTION
Ref. No. Part No. Description Remarks
51 3-959-383-01 BASE (R), MD
* 52 A-6713-952-A MA-402 COMPLETE PWB (EX90SAR)
* 52 A-6713-940-A MA-402 COMPLETE PWB (EX90SBR)
* 52 A-6713-953-A MA-402 COMPLETE PWB (EX80SAR)
* 52 A-6713-946-A MA-402 COMPLETE PWB (EX80SBR)
* 52 A-6713-945-A MA-402 COMPLETE PWB (EX50AR)
Ref. No. Part No. Description Remarks
* 52 A-6713-948-A MA-402 COMPLETE PWB (EX50BR)
53 3-970-608-21 SUMITITE (B3), +BV
54 1-757-690-11 CABLE, FLAT (FMD-022)
55 1-757-551-11 CABLE, FLAT (FAC-009)
59 X-3950-969-1 TC(N17S) ASSY (SL) (EX80S/EX90S)
60 3-342-512-21 SCREW (B1.7 X 3.5), TAPPING
(EX80S/EX90S)
