SLV-EX50/EX80S/EX90S
8-4
770
772
763
765
768
767
769
761
757
756
766
755
754
752
751
753
759
763
762
760
758
771
#2
#3
764

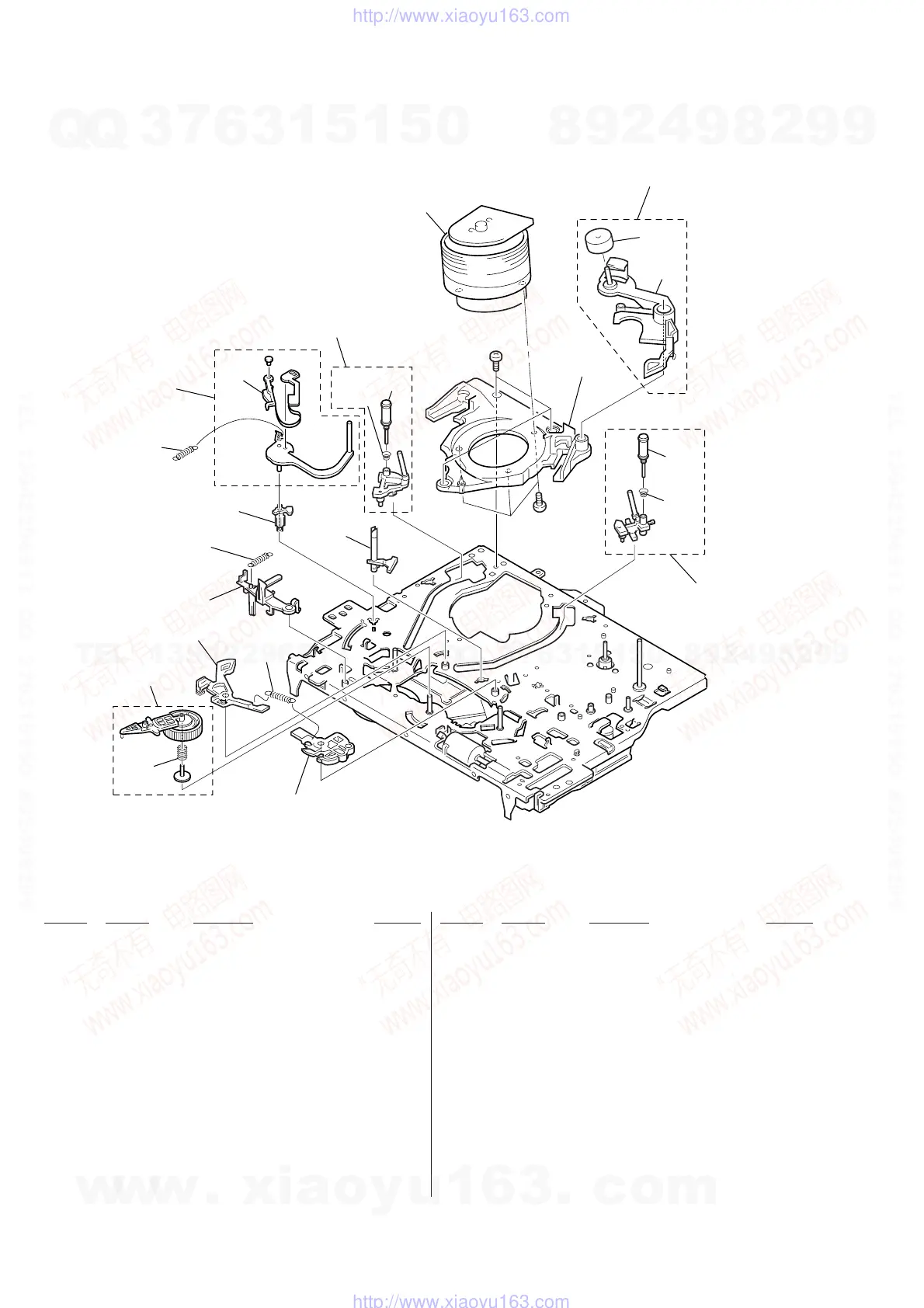

8-1-4. MECHANISM DECK SECTION-2
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
751 X-3949-363-1 BRAKE ASSY, MAIN (T)
752 3-053-882-01 SPRING, TENS (MAIN BRAKE)
753 X-3947-573-1 ARM ASSY, PENDULUM
754 X-3951-005-1 BRAKE ASSY, MAIN (S)
755 3-063-772-01 LEVER, REC PROOF (SL)
756 3-976-767-01 SPRING, TENS. (REC PROOF)
757 3-977-487-01 BOSS, TG1 FULCRUM
758 X-3950-966-1 TG1 ASSY (SL)
759 3-063-958-01 SPRING,COMP (SL PEND)
760 3-977-488-01 SPRING, EXTENSION (POWER TENSION)
761 A-6775-922-A SHUTTLE (S) BLOCK ASSY
762 X-3949-910-2 G. ROLLER ASSY
763 3-965-178-01 SPRING
764 3-062-687-01 BASE DRUM, K (UPPER MOTOR)
765 A-6750-328-E SHUTTLE (T) BLOCK ASSY
766 3-977-501-01 PLATE, LUMINOUS
767 A-6746-074-G ROLLER BLOCK ASSY, HC
768 X-3947-255-1 ROLLER ASSY, HC
769 3-975-724-07 ARM, HC
770 1-796-012-11 DRUM ASSY DZH-0D1A-R
(SLV-EX80SAR/EX90SAR)
770 1-772-366-11 DRUM ASSY DZH-0B7A-R
(SLV-EX80SBR/EX90SBR)
770 1-772-363-11 DRUM ASSY DZH-0B4A-R (SLV-EX50BR)
770 1-796-011-11 DRUM ASSY DZH-0D0A-R (SLV-EX50AR)
771 X-3950-968-1 BAND ASSY, TG1 (SL)
772 X-3949-910-1 G. ROLLER ASSY
#2 7-685-646-79 SCREW + BVTP 3 x 8 TYPE 2
#3 7-682-647-09 SCREW + P3 x 6
