Sony SLV-L49 - Disassembly; Upper Case, Panel Block Assembly; Boards

2-1
SLV-L49/L52/L59/L69HF/L72HF/L79HF/L89HF/X55/X66HF
SECTION 2
DISASSEMBLY
NOTE: Follow the disassembly procedure in the numerical order given.

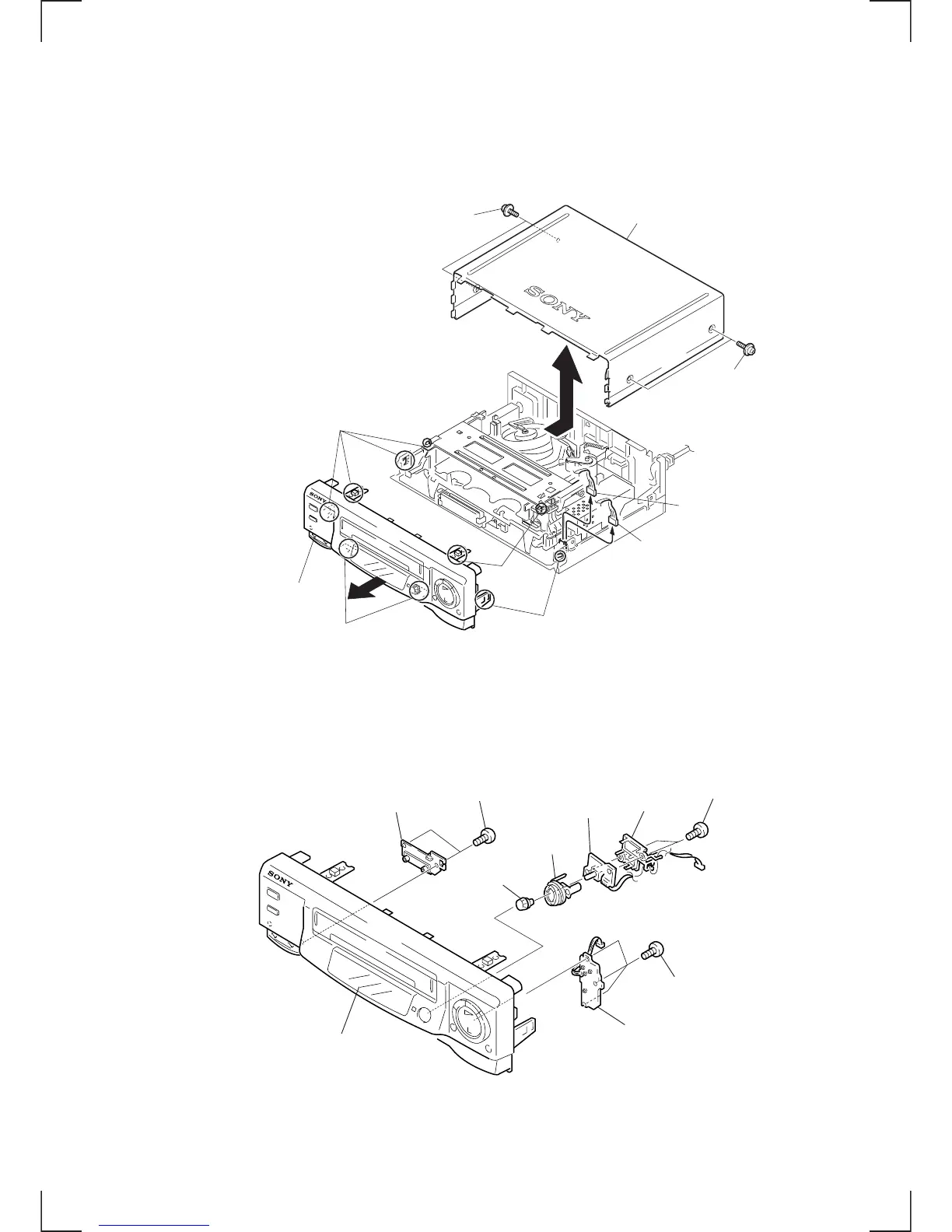

2-1. UPPER CASE, PANEL BLOCK ASSEMBLY
2-2. DS-84, DI-70, JK-168 BOARDS
Hooks
4 Connector
5 Connector
Hooks
Hooks
Hooks
2 Tapping scre
w
1 Tapping screw
3 Upper case
6 Panel block assembly
(Engaged by the hook.)
Front panel assembly
1 Three screw
s
(B2.6 × 8)
3 Two screws
(B2.6
× 8)
8 Two screws
(B2.6
× 8)
9 JK-168 board
4 holder
7 DI-70 board
6 ETR
escutcheon
5 ETR
knob
2 DS-84 board
