7-1
SLV-L49/L52/L59/L69HF/L72HF/L79HF/L89HF/X55/X66HF
SECTION 7
REPAIR PARTS LIST

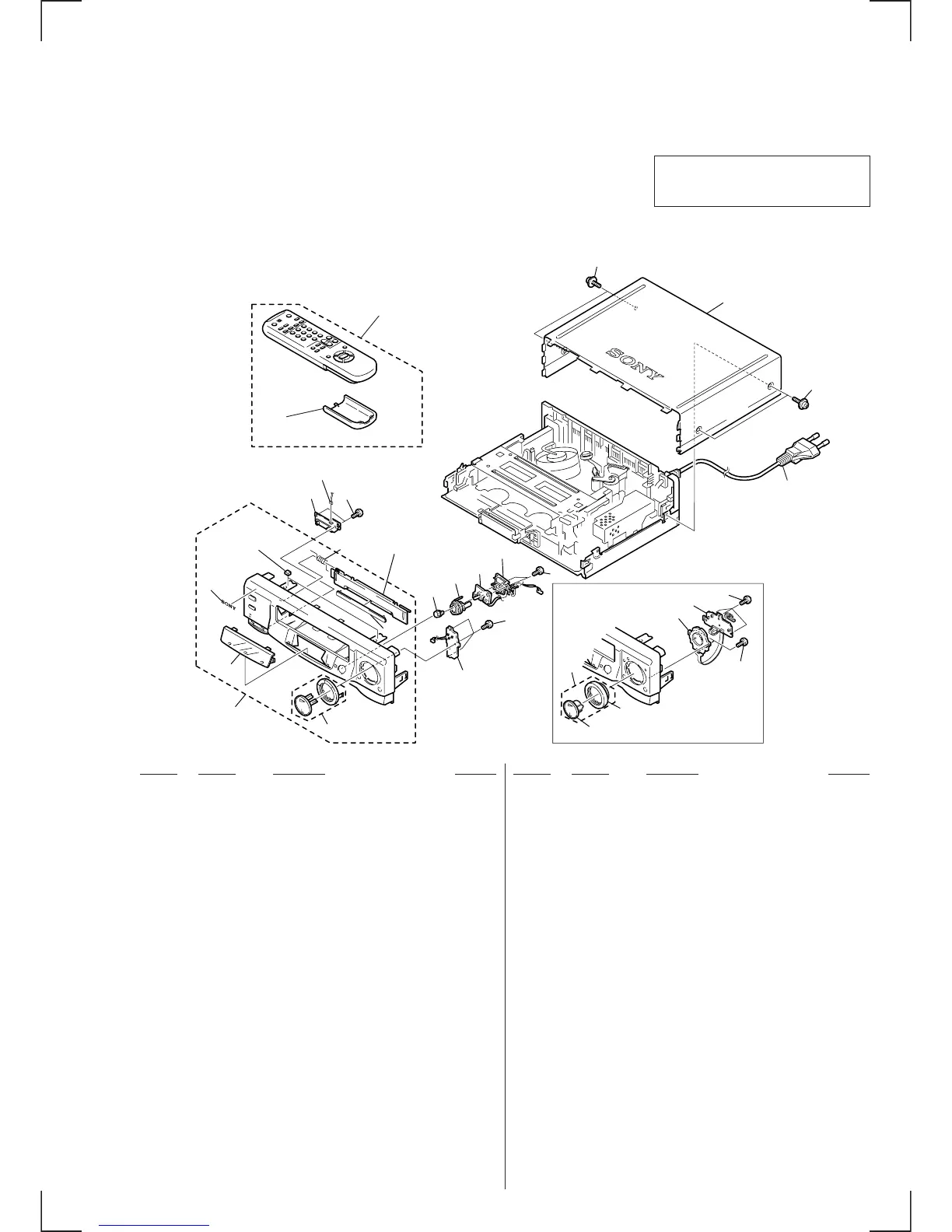

7-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
12
12
14
13
15
15
8
9
10
6
15
16
21
11
20
7
3
2
1
4
5
not supplied
15
15
6
19
2
22
not supplied
17
18
L89HF Model
1 X-3949-155-1 PANEL ASSY, FRONT (X55)
1 X-3949-156-1 PANEL ASSY, FRONT (L89HF)
1 X-3949-158-1 PANEL ASSY, FRONT (L49)
1 X-3949-159-1 PANEL ASSY, FRONT (L52)
1 X-3949-160-1 PANEL ASSY, FRONT (X66HF)
1 X-3949-161-1 PANEL ASSY, FRONT (L69HF)
1 X-3949-162-1 PANEL ASSY, FRONT (L72HF)
1 X-3949-266-1 PANEL ASSY, FRONT (L79HF)
1 X-3949-267-1 PANEL ASSY, FRONT (L59)
2 X-3949-164-1 BUTTON ASSY, FUNCTION
(L52/L59/L72HF/L79HF/X55/X66HF)
2 X-3949-165-1 BUTTON ASSY, FUNCTION (L49/L69HF)
3 3-053-232-11 RING, JOG (L89HF)
4 3-053-243-01 PLATE, FROSTED
(L49/L59/L69HF/L79HF/X55/X66HF)
4 3-053-243-11 PLATE, FROSTED (L52/L72HF/L89HF)
5 3-943-995-01 EMBLEM (NO.5), SONY
* 6 A-6794-649-A DS-84 BOARD, COMPLETE (EXCEPT L89HF)
* 6 A-6794-653-A DS-84 BOARD, COMPLETE (L89HF)
7 3-953-432-01 SPRING (GE), FL
8 3-053-228-01 KNOB, ETR
9 3-053-229-01 ESCUTCHEON, ETR
* 10 A-6794-650-A DI-70 BOARD, COMPLETE
* 11 A-6794-651-A JK-168 BOARD, COMPLETE (L49/L52/L59/X55)
* 11 A-6794-652-A JK-168 BOARD, COMPLETE
(L69HF/L72HF/L79HF/X66HF)
* 11 A-6794-654-A JK-168 BOARD, COMPLETE (L89HF)
12 3-710-901-01 SCREW, TAPPING
13 3-053-307-21 CASE, UPPER (L52/L59/L72HF/L79HF/
L89HF/X55/X66HF)
13 3-053-307-31 CASE, UPPER (L49/L69HF)
! 14 1-777-852-12 CORD, POWER (L49/L52/L59:VZ,L69HF/
L72HF/L79HF:VZ/L89HF:MX,VZ/X55/X66HF)
! 14 1-782-000-13 CORD, POWER (L59:CS,PR/
L79HF:CS,PR/L89HF:CS)
! 14 1-782-001-13 CORD, POWER (L59:CS,PR/
L79HF:CS,PR/L89HF:CS)
15 4-921-277-41 SCREW (B2.6X8), TAPPING, BIND
16 3-053-286-01 DOOR, CASSETTE (L52/L59/L72HF/L79HF/
L89HF/X55/X66HF)
16 3-053-286-11 DOOR, CASSETTE (L49/L69HF)
17 1-418-154-11 COMMANDER, STANDARD (RMT-V267)
(L69HF/L72HF/L79HF/L89HF/X66HF)
17 1-418-155-11 COMMANDER, STANDARD (RMT-V268)
(L49/L52/L59/X55)
18 3-709-128-01 COVER, BATTERY (L69HF/L72HF/L79HF/
L89HF/X66HF)
18 3-709-129-01 COVER, BATTERY (L49/L52/L59/X55)
19 1-762-844-21 SWITCH, ROTARY (L89HF)
20 1-779-725-11 CONNECTOR, BOARD TO BOARD 5P
21 3-053-240-01 PLATE, DOOR ORNAMENTAL (L49/L52/L59
/X55)
21 3-053-240-11 PLATE, DOOR ORNAMENTAL (L69HF/L72HF/
L79HF/L89HF/X66HF)
22 3-053-231-11 BUTTON, CENTER (L89HF)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
7-1-1. FRONT PANEL AND UPPER CASE SECTION
• Abbreviation
MX : Mexican
CS : Chilian, Bolivia, Peru
PR : Puerto Rico
VZ : Venezuelan
To Next Page
