Sony SLV-L49 - Internal Views

2-4
2-6. INTERNAL VIEWS
FE head
1-500-144-11
Reel (S) table
3-977-507-01
FL complete assembly
A-6759-619-C
Reel (T) table
3-977-508-01
Pinch press block assembly
A-6759-615-A
ACE head block assembly
A-6759-620-A
M901
(Drum Assembly
DZH-0A7A/Z-RP 8-839-057-51
(L69HF/L72HF/L79HF/L89HF/X66HF)
DZH-0A9A/Z-RF 8-839-059-02
(L49/L52/L59/X55)
M902
DC motor (capstan)
1-698-971-11
Rubber belt
3-977-510-01
M903
Cam motor assembly
X-3947-577-1

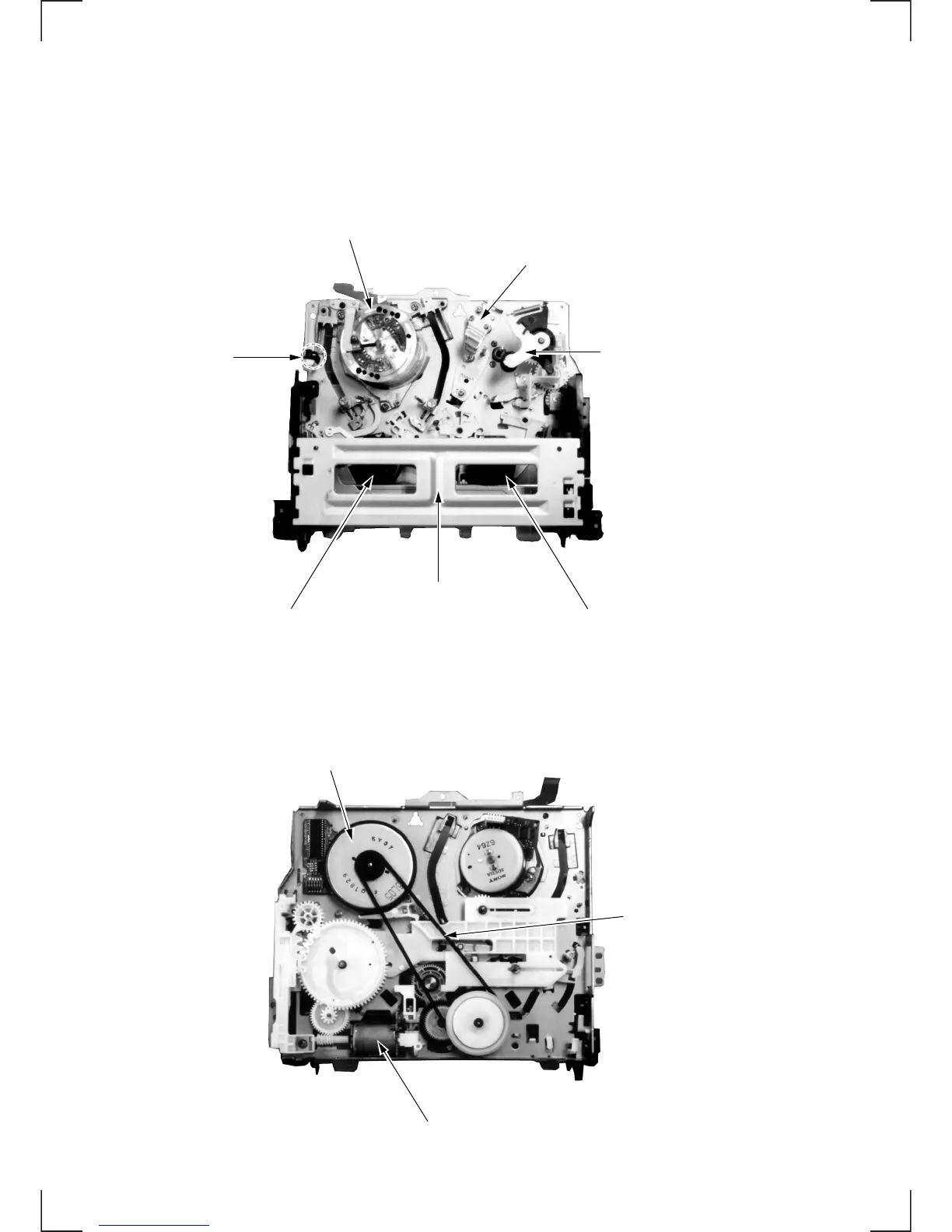

— Top View —
— Bottom View —
