Sony SLV-L49 - Chassis Section

7-2
54
54
54
56
58
54
55
51
53
52
#1
#1
#1
#1
#1
not supplied
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-959-383-01 BASE (R), MD
* 52 A-6794-655-A AR-20 BOARD, COMPLETE (L52/L72HF/L89HF)
* 53 A-6791-736-A MA-341 BOARD, COMPLETE (L49/L59:VZ,X55)
* 53 A-6791-737-A MA-341 BOARD, COMPLETE
(L69HF/L79HF:VZ/X66HF)
* 53 A-6791-738-A MA-341 BOARD, COMPLETE (L79HF:CS,PR)
* 53 A-6791-739-A MA-341 BOARD, COMPLETE (L59:CS,PR)
* 53 A-6791-740-A MA-341 BOARD, COMPLETE (L89HF:MX,VZ)
* 53 A-6791-741-A MA-341 BOARD, COMPLETE (L89HF:CS)
* 53 A-6791-742-A MA-341 BOARD, COMPLETE (L72HF)
* 53 A-6791-743-A MA-341 BOARD, COMPLETE (L52)
54 3-970-608-21 SUMITITE (B3), +BV
* 55 3-987-076-01 PANEL, REAR(L69HF/L72HF/L79HF/L89HF/
X66HF)
* 55 3-987-076-11 PANEL, REAR(L49/L52/L59/X55)
56 3-988-087-11 BRACKET (BP) (L59:CS,PR/
L79HF:CS,PR/ L89HF:CS)
58 3-970-608-21 SUMITITE (B3), +BV

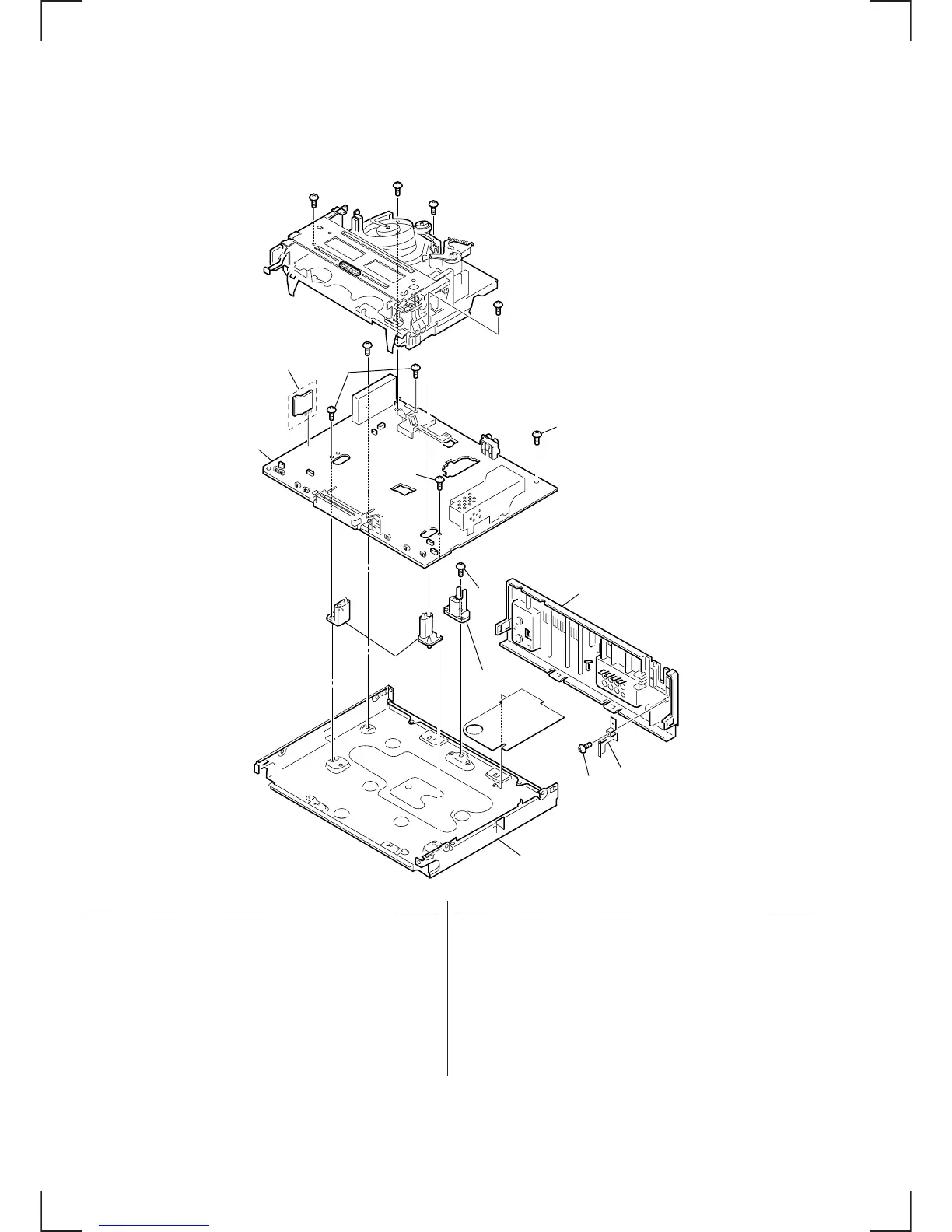

7-1-2. CHASSIS SECTION
