SLV-L49/L52/L59/L69HF/L72HF/L79HF/L89HF/X55/X66HF
VUDEO, AUDIO, SERVO/SYSTEM CONTROL, TUNER, POWER SUPPLY
MA-341
4-20

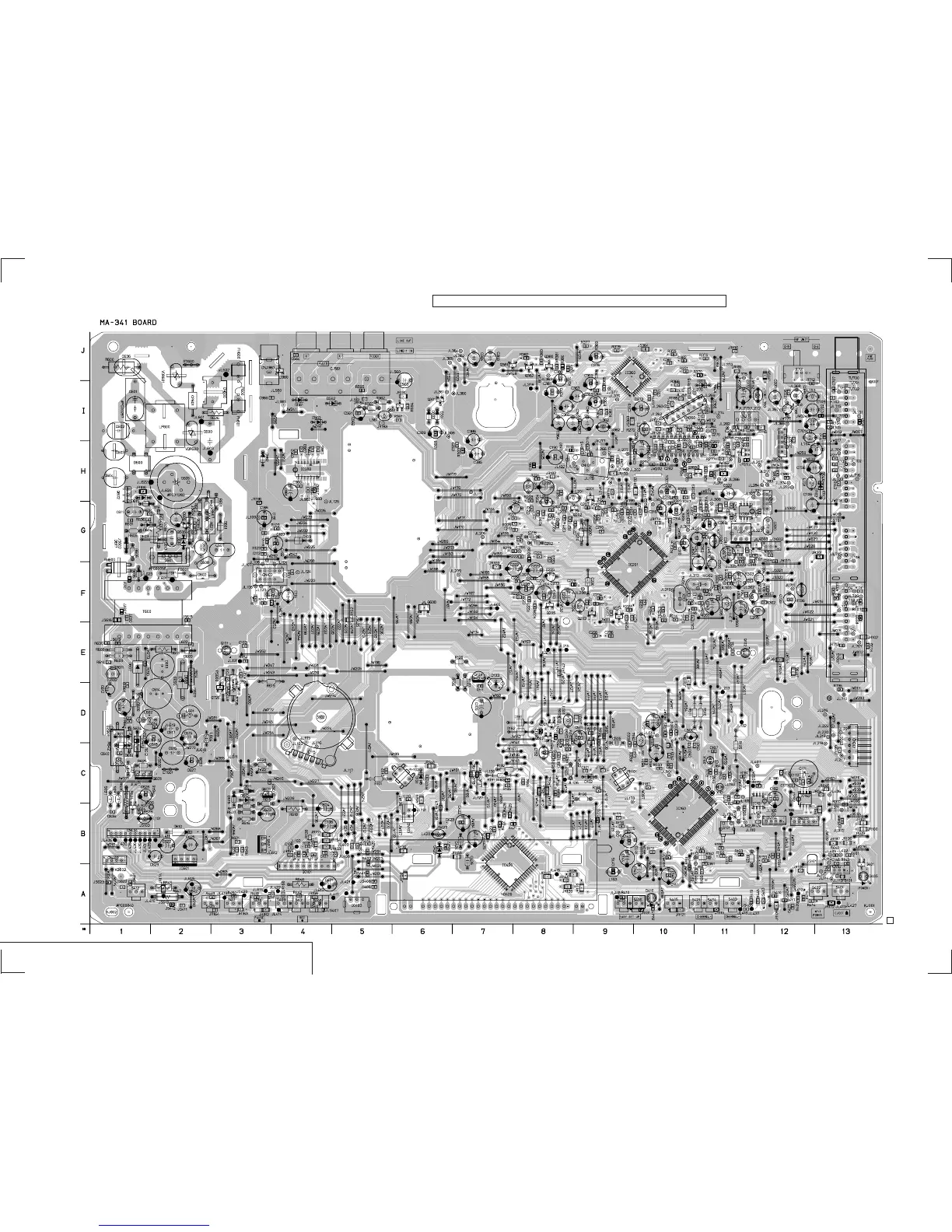

MA-341 (VUDEO, AUDIO, SERVO/SYSTEM CONTROL, TUNER, POWER SUPPLY) PRINTED WIRING BOARD
— Ref. No. MA-341 Board; 1,000 Series —
1-672-475-
13
There are few cases that the part printed on this diagram isn’t mounted in this model.
