SLV-L49/L52/L59/L69HF/L72HF/L79HF/L89HF/X55/X66HF
4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
4-5 4-6

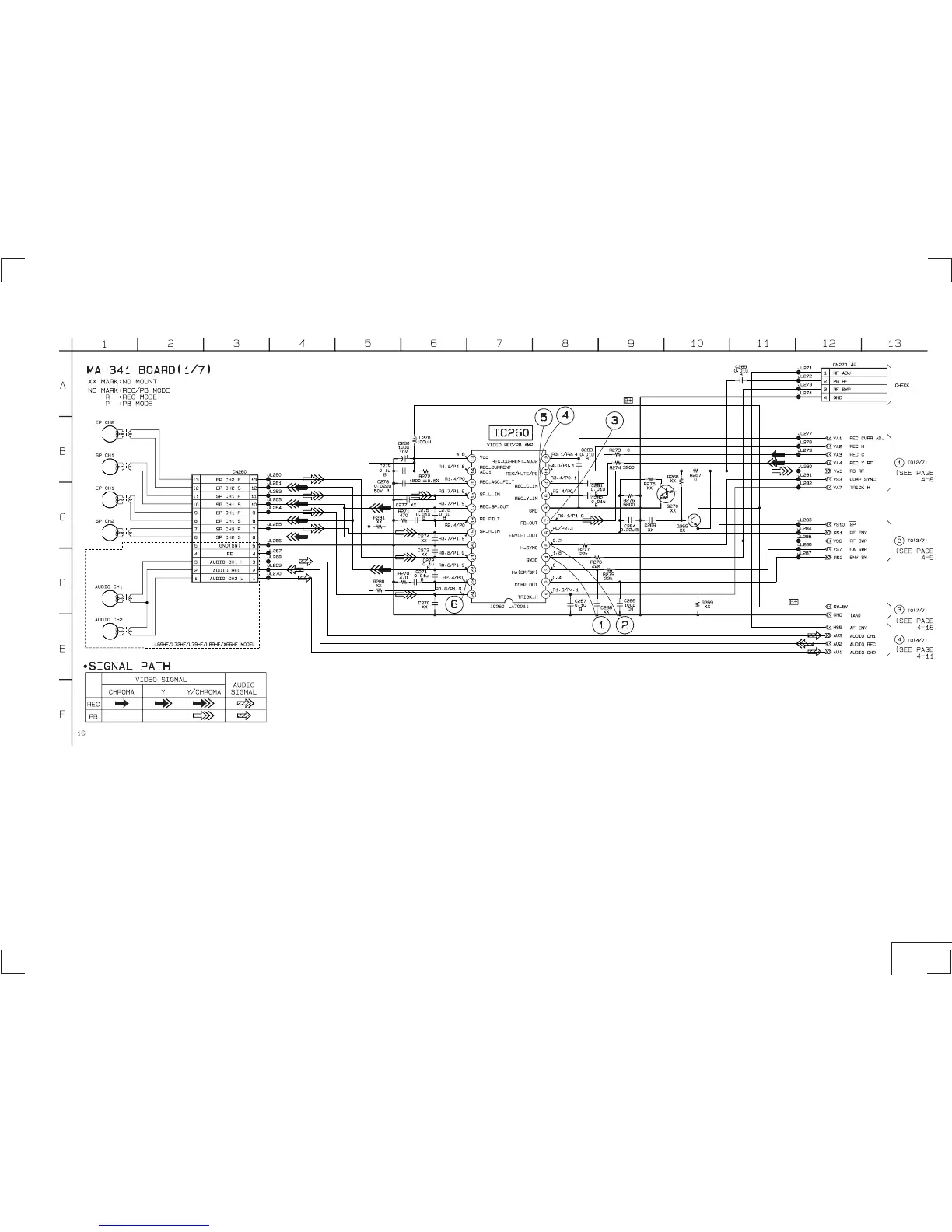

MA-341 (1/7) (VIDEO) SCHEMATIC DIAGRAMS
— Ref. No. MA-341 Board; 1,000 Series —
VIDEO
MA-341(1/7)
For schematic diagram
• Refer to page 4-19 for printed wiring board.
• Refer to page 4-2 for waveforms.
GND
EP_L_IN
_EP_OUT
PB FELT
EP_H_IN
