Sony SLV-L49 - Arc) Printed Wiring Board; Arc) Schematic Diagrams

4-25E

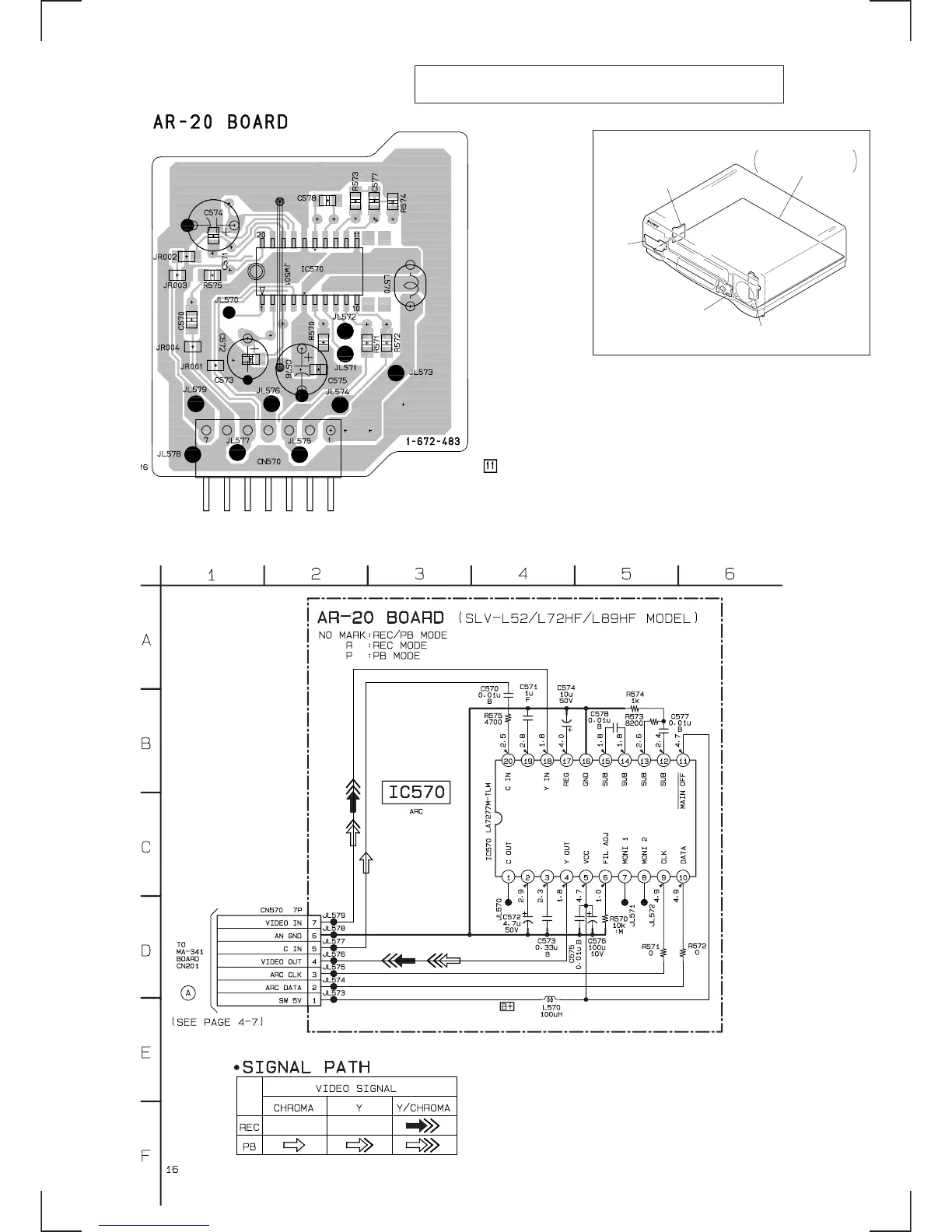

AR-20 (ARC) PRINTED WIRING BOARD
— Ref. No. AR-20 Boar d; 5,000 Ser ies —
DI-70
(DIAL TIMER SWITCH)
JK-168
(LINE IN)
AR-20
(ARC)
DS-84
(TAPE OPERATION)
MA-341
VIDEO, AUDIO,
SERVO/SYSTEM CONTROL,
TUNER, POWER SUPPLY
(SLV-L52/L72HF/L89HF MODEL)
AR-20 (ARC) SCHEMATIC DIAGRAMS
— Ref. No. AR-20 Boar d; 5,000 Ser ies —
SLV-L49/L52/L59/L69HF/L72HF/L79HF/L89HF/X55/X66HF
There are few cases that the part printed on this diagram isn’t
mounted in this model.
