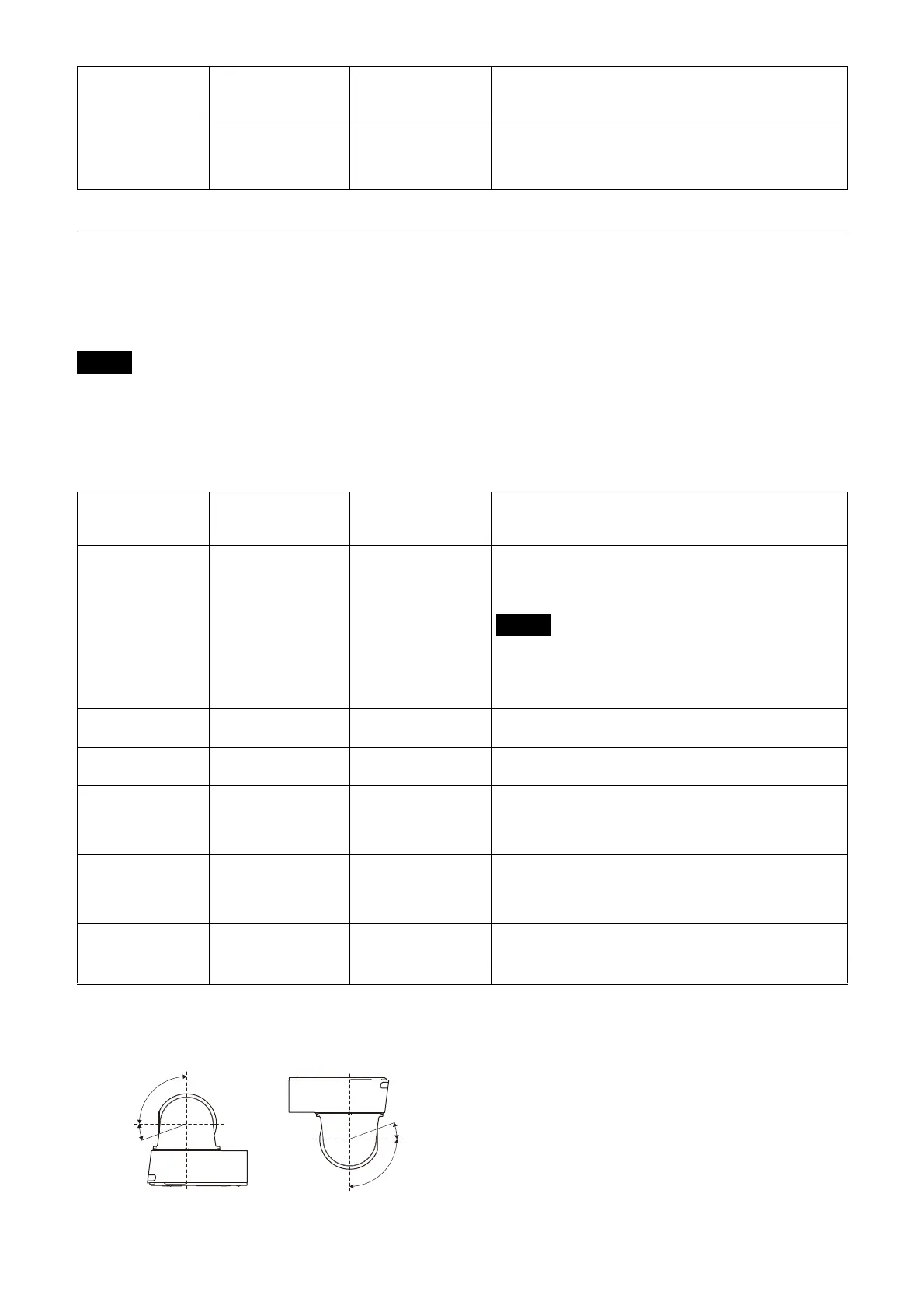

P/T Range Limit
Range Limit
Set the pan/tilt range limit.
Notes
• Switching Image Flip on/off turns the Pan-Tilt limit setting to the factory setting. Set the Image flip
function in accordance with the installation condition of the camera and select the value.
• When the [Range Limit] setting of pan/tilt is chang
ed, confirm the [Start Position] tab setting of the
[PTZ Auto Framing Settings] screen. When the setting range of [Range Limit] does not correspond to
the start position, PTZ Auto Framing may not be performed as you intended.
Setting the range of the Up/Down movement
Pict Freeze Preset On / Off On Select the output image state for preset recall.
When the checkbox is selected, frozen images are
out
put during preset recalling.
Menu item Detail and setting
va
lue
Initial setting value
of the factory
default setting
Content
Setting On / Off Off Pan/tilt range can be limited.
When this setting is valid, the following settings can
be
selected.
Note
Switching Image flip on/off turns the Pan-Tilt limit
setting to the factory setting. Set the Image flip
function in accordance with the installation condition
of the camera and select the value.
Left –170 to 169 –170 Set the limit of the pan’s left end.
Adjustable in 1 degree increments.
Right –169 to 170 170 Set the limit of the pan’s right end.
Adjustable in 1 degree increments.
Up –19 to 90
(Image Flip: Off)
–89 to 20
(Image Flip: On)
90 (Image Flip: Off)
20 (Image Flip: On)
Set the limit of the tilt’s upper end.
Adjustable in 1 degree increments.
Down –20 to 89
(Image Flip: Off)
–90 to 19
(Image Flip: On)
–20 (Image Flip: Off)
–90 (Image Flip: On)
Set the limit of the tilt’s downward end.
Adjustable in 1 degree increments.
Set Current Value ― ― The current position can be reflected to each setting
va
lue.
Reset ― ― Return the setting value to the initial value.
Menu item Detail and setting
va
lue
Initial setting value
of the factory
default setting
Content
90°
–20°
0°
(Image flip: OFF)
–90°
20°
0°
(Image flip: ON)
