— 24 —

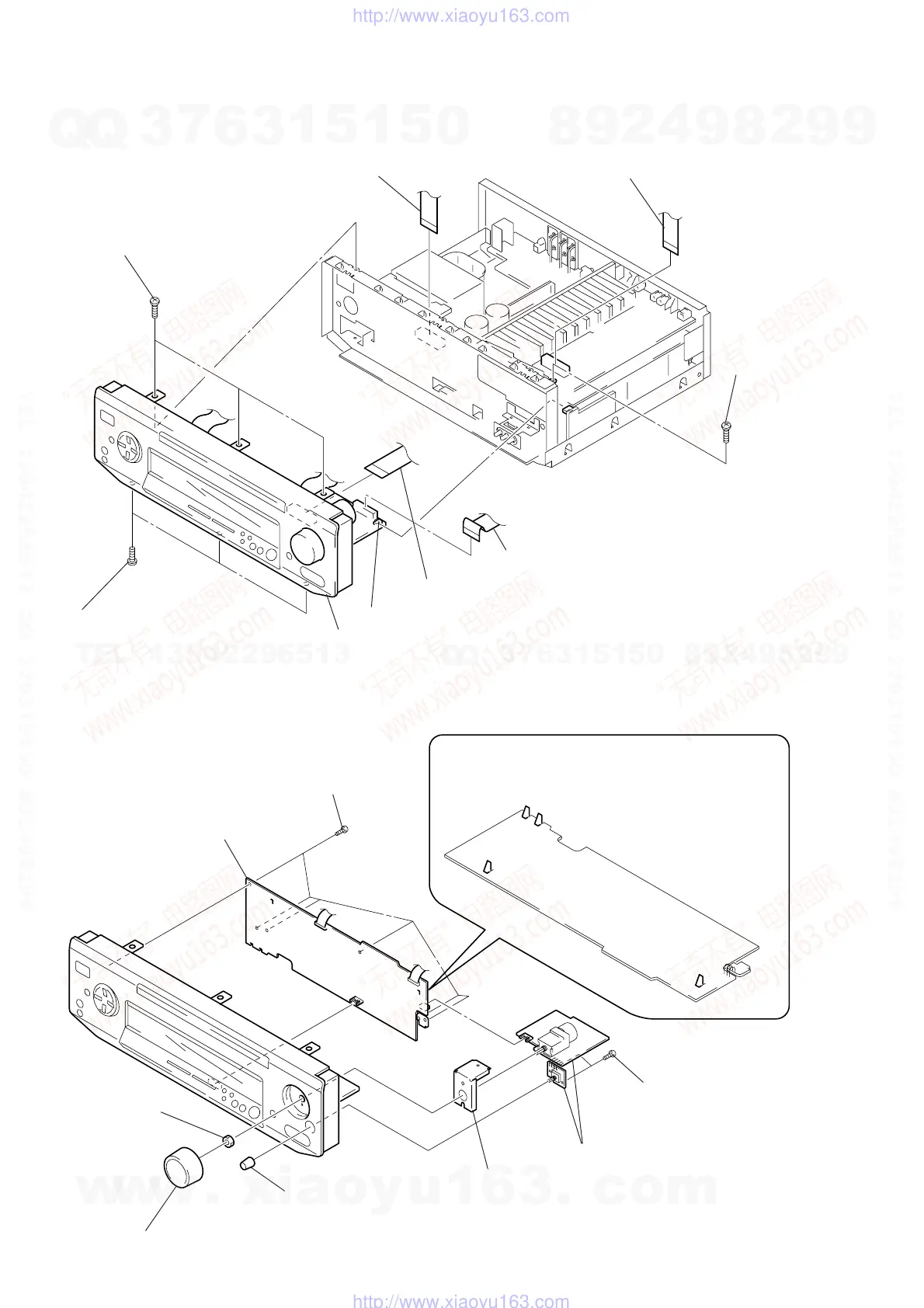

SECTION 3
DISASSEMBLY
3-1. FRONT PANEL
3-2. BALANCE BOARD, DISPLAY BOARD AND VOLUME BOARD
1
Three screws
(BVTP 3x8)
3
Flat type wire (19 core)
(CNS701)
4
Flat type wire (17 core)
(CNJ203)
2
Screw
(BVTP 3x8)
6
Flat type wire (19 core) (CNS402)
9
Front panel
5
Three screws
(BVTP 3x8)
8
Remove the four claws.
7
Six screws
(BVTP 2.6x8)
9
DISPLAY board
4
Two screws
(BVTP 2.6x8)
5
BALANCE board and
VOLUME board
6
Bracket
3
Knob
(Balance)
2
Nut
1
Knob
(Volume)
7
Flat type wire (19 core) (CNS105)
8
Remove the connector (CNP102)
