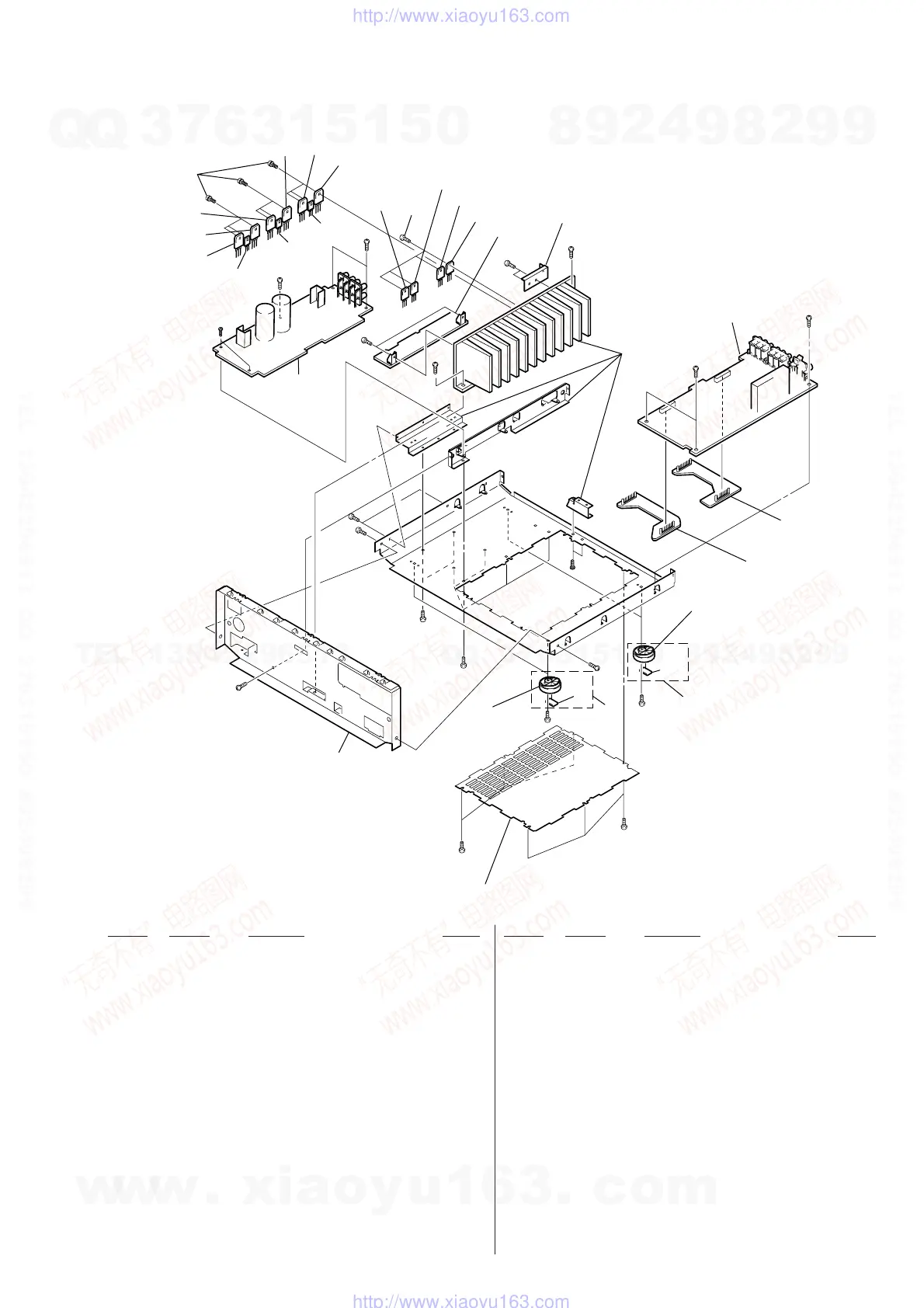

6-4. CHASSIS SECTION
158
158
152
151
153
154
155
157
156
156
157
#1
#1
#1
not supplied
#1
not
supplied
not supplied
not supplied
#3
#3
#3
#1
#1
#3
not
supplied
#1
#1
#1
#1
#1
not supplied
Q706
Q707
Q756
Q757
Q506
Q507
Q606
Q505
#1
Q605
Q555
#1
#1
Q557
Q556
Q607
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 151 A-4398-108-A AMP BOARD, COMPLETE
(DE815G:US,CND,E,PX)
* 151 A-4398-140-A AMP BOARD, COMPLETE (SP,MY)
* 151 A-4398-152-A AMP BOARD, COMPLETE (D760Z)
* 151 A-4398-189-A AMP BOARD, COMPLETE (AUS)
* 152 A-4398-115-A REAR AMP BOARD, COMPLETE (EXCEPT SP,MY)
* 152 A-4398-142-A REAR AMP BOARD, COMPLETE (SP,MY)
* 153 A-4398-109-A SURR BOARD, COMPLETE (US,CND)
* 153 A-4398-136-A SURR BOARD, COMPLETE (E,PX)
* 153 A-4398-141-A SURR BOARD, COMPLETE (SP,MY)
* 153 A-4398-147-A SURR BOARD, COMPLETE (AUS)
* 154 1-665-634-11 AMP.JOINT (R) BOARD
* 155 1-665-633-11 AMP.JOINT (F) BOARD
156 X-4947-207-1 FOOT ASSY (F50150S) (EXCEPT US,CND)
156 X-4947-208-1 FOOT ASSY (F50150S)(US,CND)
157 4-977-358-11 CUSHION (8X12.5)
158 3-905-609-01 SCREW (TRANSISTOR)
Q505 8-729-209-15 TRANSISTOR 2SD2012
Q506 8-749-010-25 IC MN2488-OPY-M
Q507 8-749-010-26 IC MP1620-OPY-M
Q555 8-729-209-15 TRANSISTOR 2SD2012
Q556 8-749-010-25 IC MN2488-OPY-M
Q557 8-749-010-26 IC MP1620-OPY-M
Q605 8-729-209-15 TRANSISTOR 2SD2012
Q606 8-749-010-25 IC MN2488-OPY-M
Q607 8-749-010-26 IC MP1620-OPY-M
Q706 8-749-010-25 IC MN2488-OPY-M
Q707 8-749-010-26 IC MP1620-OPY-M
Q756 8-749-010-25 IC MN2488-OPY-M
Q757 8-749-010-26 IC MP1620-OPY-M
