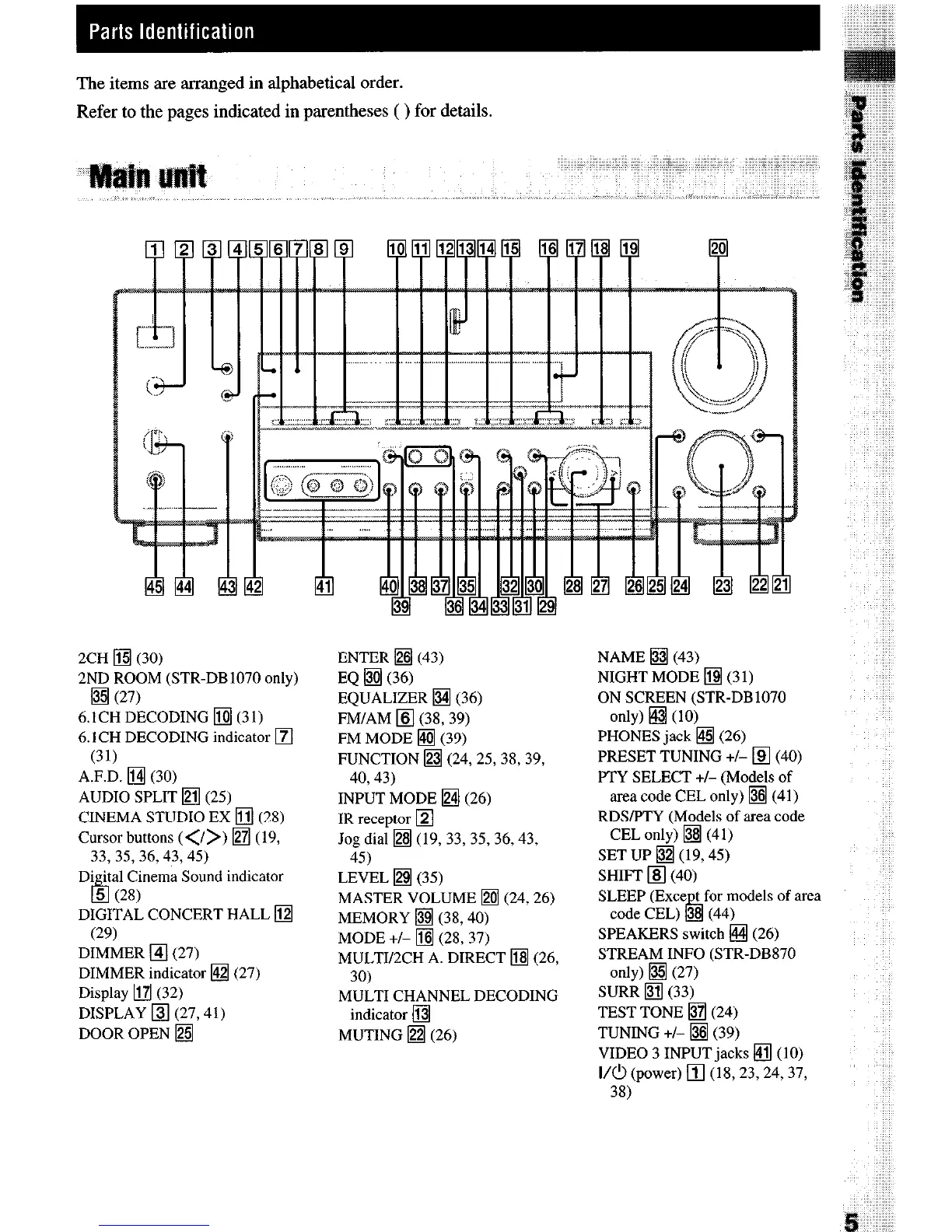

Sony STR-DB1070 - Parts Identification; Main Unit

The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.
2CH q (30)
2ND ROOM (STR-DB1070 only)
El (27)
6.1CH DECODING q (31)
6.1CH DECODING indicator q
(31)
A.F.D. q (30)
AUDIO SPLIT m (25)
CINEMA STUDIO EX q (28)
Cursor buttons (</>) q (19,
33, 35,36,43,45)
Di ital Cinema Sound indicator
?I
5 (28)
DIGITAL CONCERT HALL q
(29)
DIMMER q (27)
DIMMER indicator q (27)
Display q (32)
DISPLAY q (27,41)
DOOR OPEN q
ENTER q (43)
EQ q (36)
EQUALIZER q (36)
FM/AM q (3839)
FM MODE q (39)
FUNCTION q (24,25,38,39,
40,43)
INPUT MODE q (26)
IR receptor q
Jog dial q (19, 33, 35,36,43,
45)
LEVEL q (35)
MASTER VOLUME q (24,26)
MEMORY q (38,40)
MODE +/- q (28, 37)
MULTI/;?CH A. DIRECT i@ (26,
30)
MULTI CHANNEL DECODING
indicator q
MUTING q (26)
NAME q (43)
NIGHT MODE i@ (3 1)
ON SCREEN (STR-DB 1070
only) ii3 (10)
PHONES jack q (26)
PRESET TUNING +/- q (40)
PTY SELECT +/- (Models of
area code CEL only) q (41)
RDSiPTY (Models of area code
CEL only) q (41)
SET UP q (19,45)
SHIFT q (40)
SLEEP (Exe t for models of area
code CEL) 3 (44)
b
SPEAKERS switch H (26)
STREAM INFO (STR-DB870
only) q (27)
SURR q (33)
TEST TONE q (24)
TUNING +/- q (39)
VIDEO 3 INPUT jacks q (10)
I/6 (power) q (18,23,24,37,
38)
