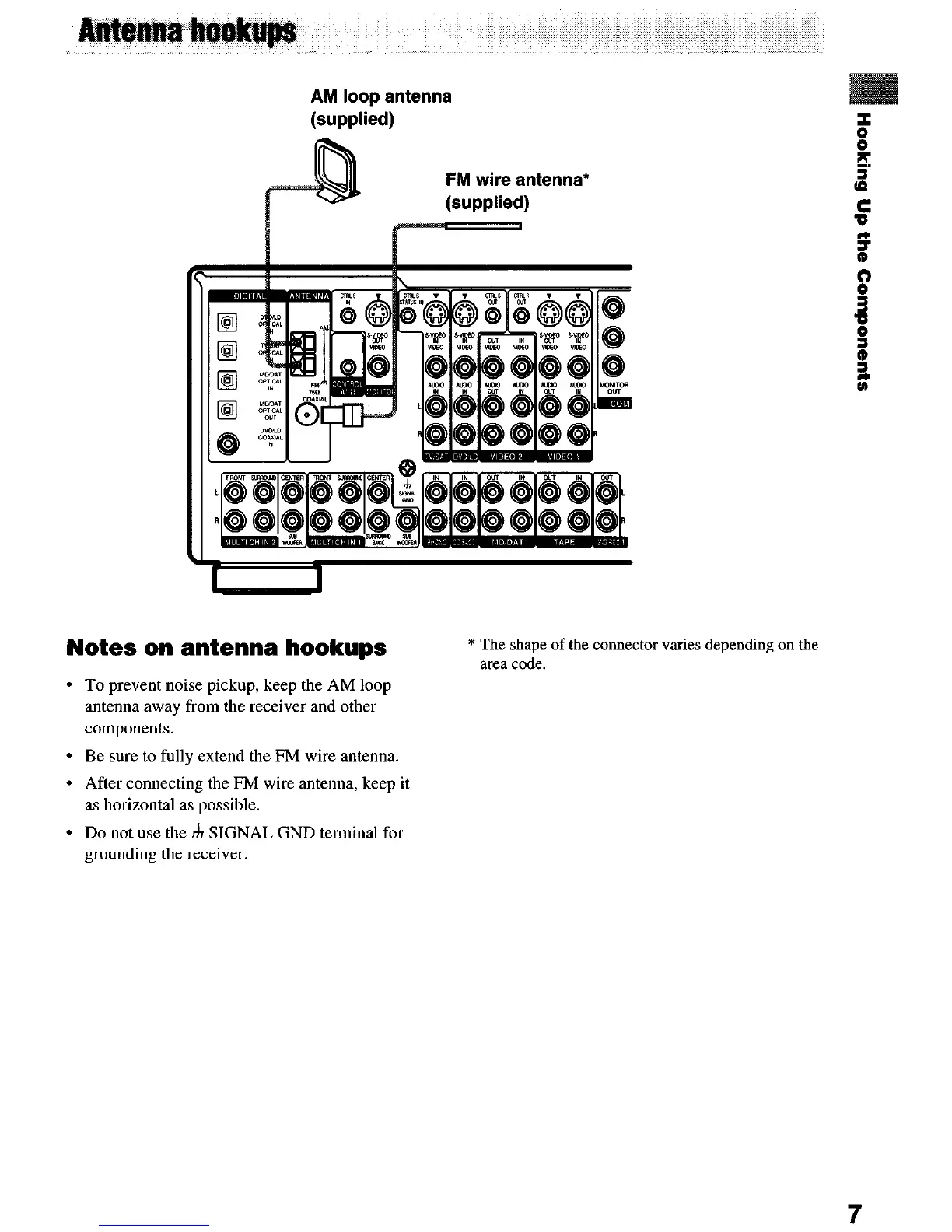

AM
loop
antenna
(supplied)
FM
wire
antenna*
(supplied)
Notes
on
antenna
hookups
l
To
prevent
noise
pickup,
keep
the
AM
loop
antenna
away
from
the
receiver
and
other
components.
l
Be
sure
to
fully
extend
the
FM
wire
antenna.
l
After
connecting
the
FM
wire
antenna,
keep
it
as
horizontal
as
possible.
l
Do
not
use
the
&
SIGNAL
GND
terminal
for
grounding
the
receiver.
*
The
shape
of
the
connector
varies
depending
on
the
area
code.
