STR-DA1ES/DB780

SECTION 1

SERVICING NOTES

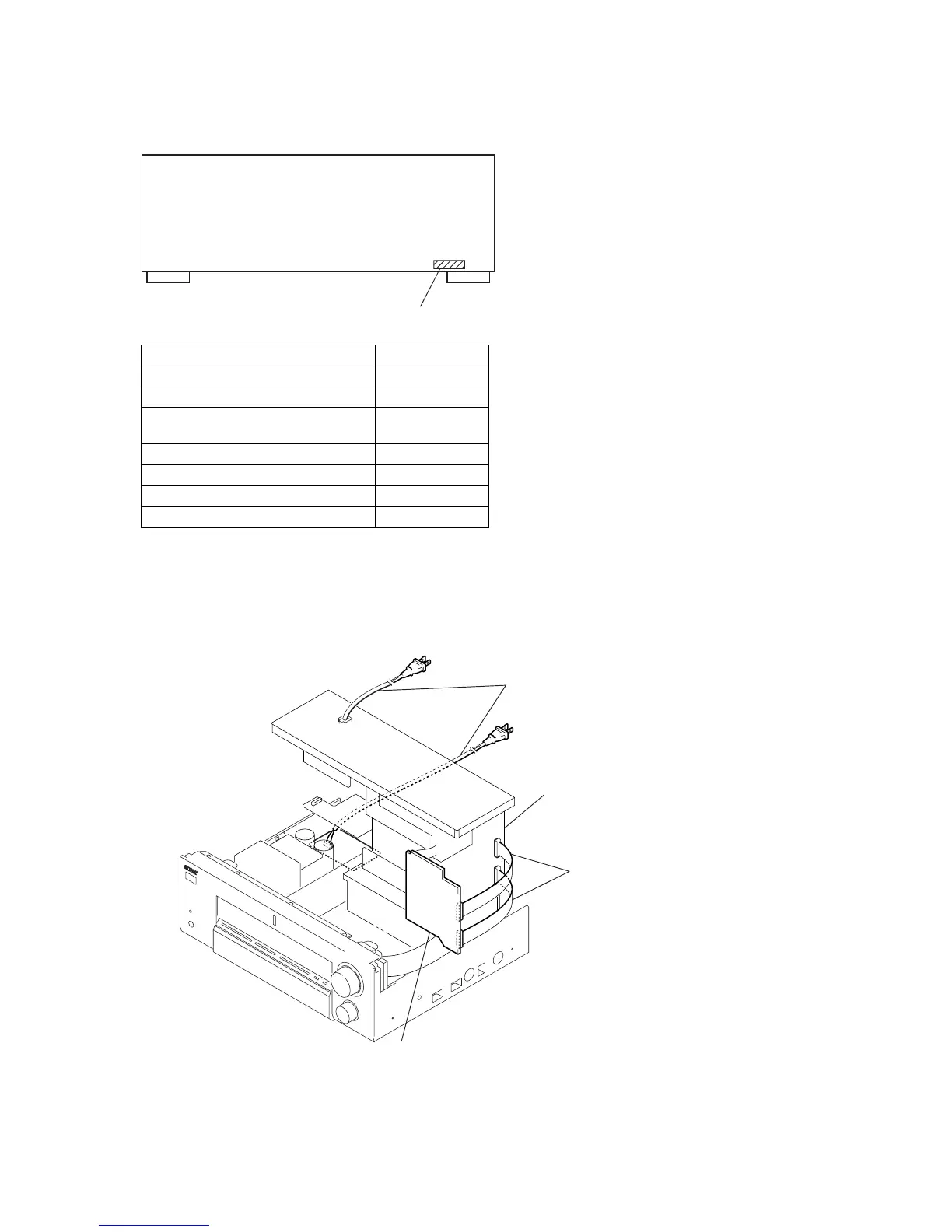

• MODEL IDENTIFICATION

– Back Panel –

PART No.

Model PART No.

DA1ES : US model 4-240-601-0

[]

DB780 : AEP and UK models 4-240-601-1

[]

DB780 : Singapore and

Malaysia models

4-240-601-2

[]

DB780 : Taiwan model 4-240-601-3

[]

DB780 : Korean model 4-240-601-4

[]

DB870 : Chinese model 4-240-601-5

[]

DA1ES : Canadian model 4-240-601-6

[]

Connect jig (extension cable J-2501-208-A)

to the MAIN board (CN806, CN807) and

DIGITAL board (CN1102, CN1103).

Note:

The power cord can be used unplugged from th

back panel though, as it is hard to do it,

it is easier to prepare other power cord and

use it as a jig.

DIGITAL board

MAIN board

power cord

SERVICE POSITION

In checking the DIGITAL board, prepare jig (extension cable J-2501-208-A: 200 mm 21 core).
