Sony STR-DB780 Service Manual

8
STR-DA1ES/DB780
Note: Follow the disassembly procedure in the numerical order given.

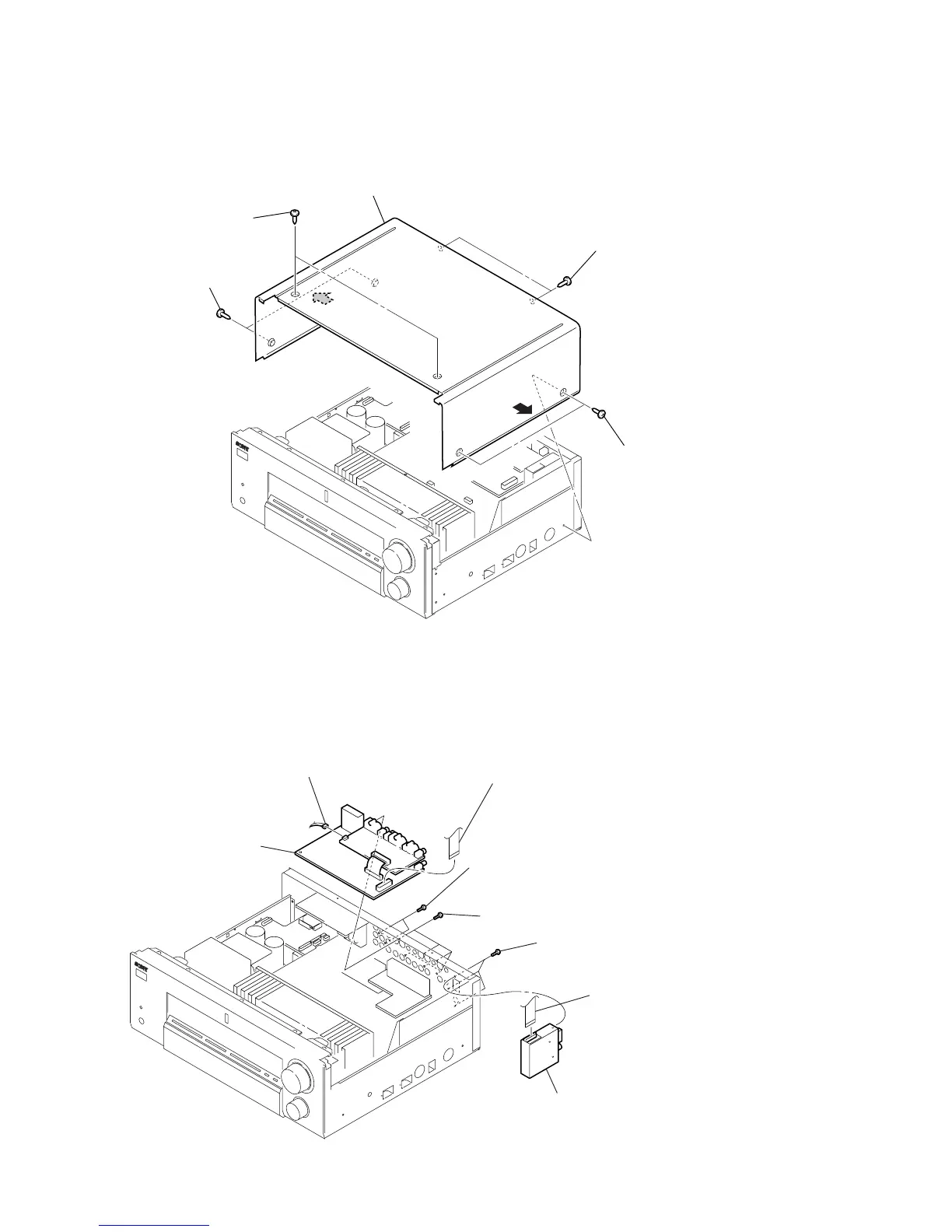

3-2. CASE (414535)
3-3. S-VIDEO BOARD, VIDEO BOARD AND TUNER
1 two flat head screws
1 two flat head screws
1 two flat head screws
1 two flat head screws
3 case (414535)
2
2
1 connector
(CN853)
4 S-video board,
video board
2 wire (flat type) (11 core)
(CN303)
5 wire (flat type) (11 core)
(except DB780: AEP, UK models
)
wire (flat type) (15 core)
(DB780: AEP, UK models)
3 six screws (BV/RING)
6 three screws (BV/RING)
3 two screws (BV/RING)
(except DB780: AEP, UK models)
7 tuner

Sony STR-DB780 Specifications

General

Type	Stereo Receiver
Total Harmonic Distortion	0.09 %
Digital inputs	2 Optical, 1 Coaxial
Weight	10.5 kg
Video inputs	composite
Video outputs	1 composite, 1 S-Video
Output Power	100 Watts (8 Ohms, 20 Hz - 20 kHz, 0.09% THD)
Signal-to-Noise Ratio	96 dB (Line in)
Input Sensitivity	150 mV (Line in)
