STR-DA1ES/DB780
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-240-199-01 PANEL, FRONT (BLACK) (DA1ES)
51 4-240-199-11 PANEL, FRONT (BLACK) (DB780: AEP, UK)
51 4-240-199-21 PANEL, FRONT (SILVER) (DB780: AEP, UK)
51 4-240-199-31 PANEL, FRONT (GOLD)
(DB780: SP, MY, TW, KR, CH)
53 A-4735-735-A LID ASSY (BLACK)
53 A-4680-808-A LID ASSY (GOLD)
53 A-4735-735-A LID ASSY (SILVER)
54 4-217-729-01 KNOB (JOG) (BLACK)
54 4-217-729-12 KNOB (JOG) (GOLD)
54 4-217-729-21 KNOB (JOG) (SILVER)
55 4-240-392-01 MAGNET (BLACK)
55 4-240-392-11 MAGNET (GOLD)
55 4-240-392-21 MAGNET (SILVER)
56 1-683-775-11 POWER BOARD
57 4-951-620-01 SCREW (2.6X8), +BVTP
59 4-223-621-01 BUTTON (ON SCREEN) (BLACK)
59 4-223-621-11 BUTTON (ON SCREEN) (GOLD)
59 4-223-621-21 BUTTON (ON SCREEN) (SILVER)
60 X-4952-753-1 BRACKET (DAMPER L) ASSY
61 4-240-391-01 DAMPER, OIL
62 4-227-153-01 SHEET (LIGHT INTERCEPTION)
64 1-773-342-11 WIRE (FLAT TYPE) (31 CORE)
65 A-4729-155-A DISPLAY BOARD, COMPLETE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-853-04 SCREW +BVTT 2X6 (S)
#1
#1
#1
#2
51
53
55
57
56
59
60
57
57
65
64
61
62
55
54
supplied with RV1601
not supplied
front panel section-2

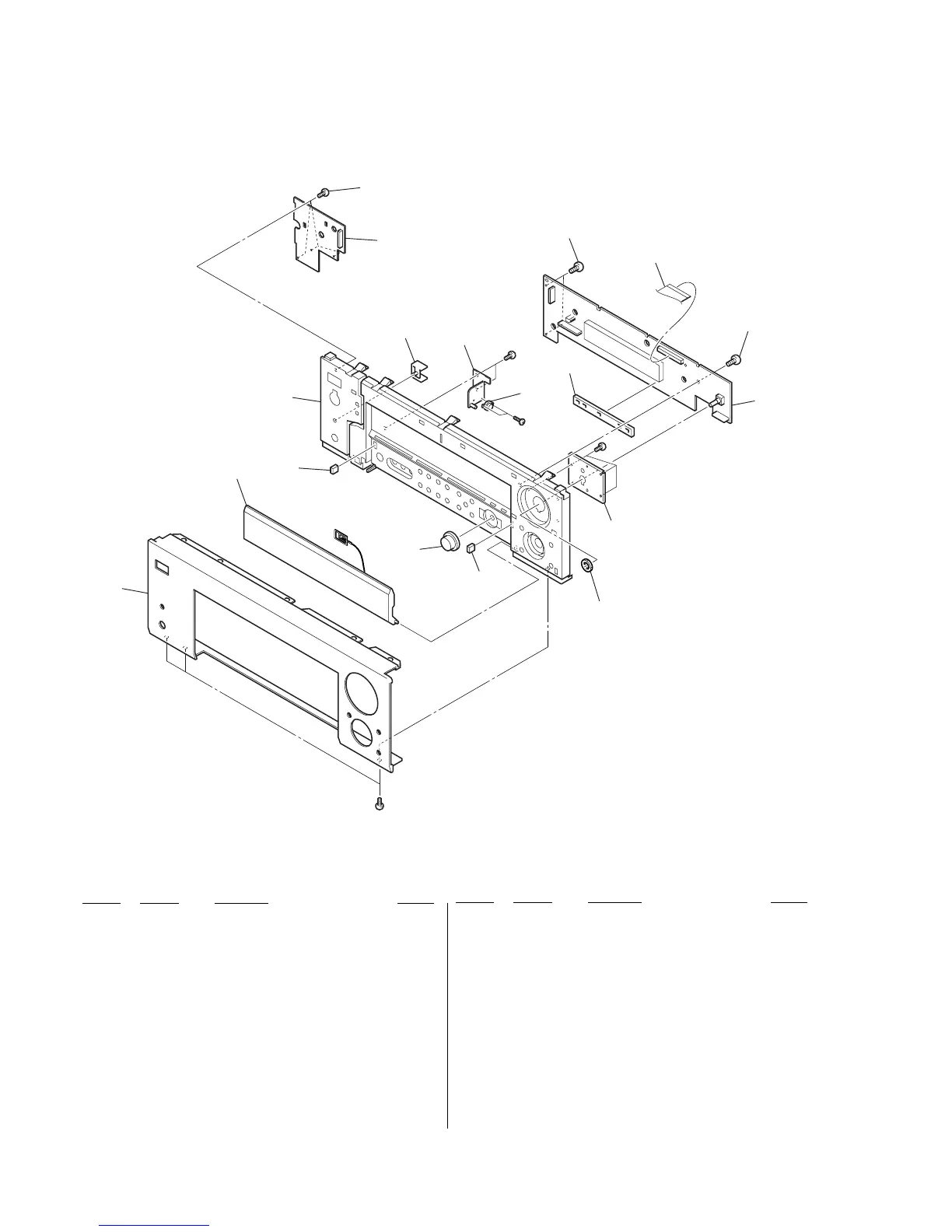

6-2. FRONT PANEL SECTION-1
