Sony STR-DB780 Service Manual

57
STR-DA1ES/DB780
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4954-457-1 BASE ASSY, PANEL (BLACK) (DB780: AEP, UK)
101 X-4954-458-1 BASE ASSY, PANEL (SILVER) (DB780: AEP, UK)
101 X-4954-804-1 BASE ASSY, PANEL (BLACK) (DA1ES)
101 X-4954-805-1 BASE ASSY, PANEL (GOLD)
(DB780: SP, MY, TW, KR, CH)
102 4-998-592-01 BUTTON (POWER) (BLACK)
102 4-998-592-12 BUTTON (POWER) (GOLD)
102 4-998-592-23 BUTTON (POWER) (SILVER)
104 1-683-873-11 FRONT OPT IN BOARD
105 A-4729-158-A KEY BOARD, COMPLETE
106 4-951-620-01 SCREW (2.6X8), +BVTP
107 4-227-150-01 SPRING, COMPRESSION
108 4-917-583-71 BRACKET, YOKE
109 4-227-143-01 LEVER (OPEN) (BLACK)
109 4-227-143-11 LEVER (OPEN) (GOLD)
109 4-227-143-21 LEVER (OPEN) (SILVER)
110 4-227-142-01 BUTTON (OPEN) (BLACK)
110 4-227-142-11 BUTTON (OPEN) (GOLD)
110 4-227-142-21 BUTTON (OPEN) (SILVER)
111 1-683-777-11 MUTING BOARD
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#1
not supplied
101
104
102
not supplied
105
106
106
111
106
107
108
109
110

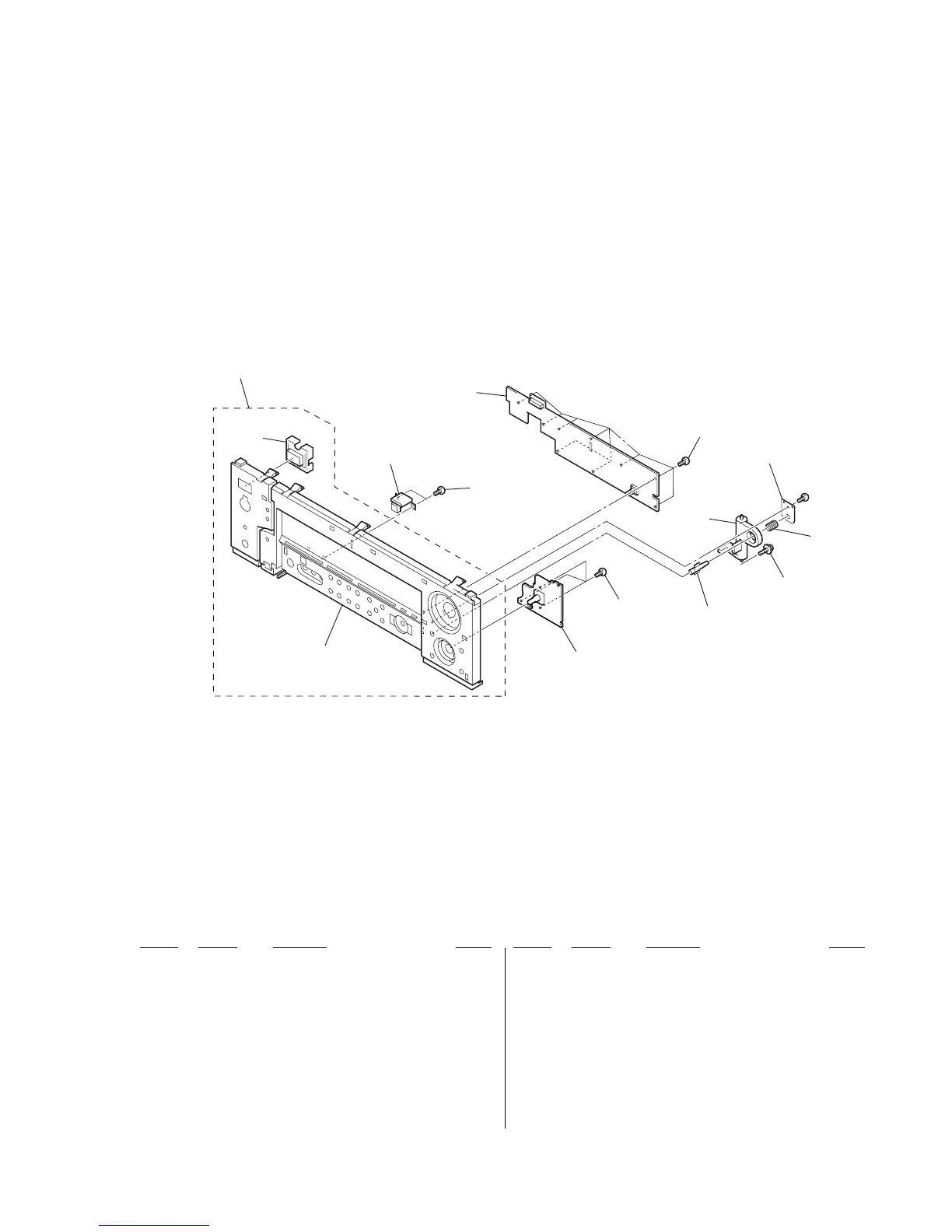

6-3. FRONT PANEL SECTION-2

Sony STR-DB780 Specifications

General

Type	Stereo Receiver
Total Harmonic Distortion	0.09 %
Digital inputs	2 Optical, 1 Coaxial
Weight	10.5 kg
Video inputs	composite
Video outputs	1 composite, 1 S-Video
Output Power	100 Watts (8 Ohms, 20 Hz - 20 kHz, 0.09% THD)
Signal-to-Noise Ratio	96 dB (Line in)
Input Sensitivity	150 mV (Line in)
