60
STR-DA1ES/DB780
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 4-900-386-01 SCREW
252 1-684-324-11 DC 1 BOARD
253 3-704-515-21 SCREW (BV/RING) (EXCEPT DB780: AEP, UK)
253 4-974-510-11 SCREW (+BV 3X8 CU) (DB780: AEP, UK)
254 A-4729-117-A AC BOARD, COMPLETE (DA1ES)
254 A-4729-118-A AC BOARD, COMPLETE (DB780: SP, MY)
254 A-4729-119-A AC BOARD, COMPLETE (DB780: KR)
254 A-4729-120-A AC BOARD, COMPLETE (DB780: TW)
254 A-4729-121-A AC BOARD, COMPLETE (DB780: AEP, UK)
254 A-4729-548-A AC BOARD, COMPLETE (DB780: CH)
* 255 3-703-244-00 BUSHING (2104), CORD
0 256 1-769-079-21 CORD, POWER (KR)
0 256 1-769-743-11 CORD, POWER (CND)
0 256 1-769-744-11 CORD, POWER (AEP, UK, SP, MY, TW)
0 256 1-782-464-21 CORD, POWER (CH)
0 256 1-783-532-11 CORD, POWER (US)
257 1-685-501-11 SEC 1 BOARD
258 1-685-500-11 PR 1 BOARD
0 F1 1-532-504-51 FUSE (T4AL/250V)
(EXCEPT DA1ES/DB780: TW)
0 F1 1-576-048-11 FUSE, GLASS TUBE (10A/125V)
(DA1ES/DB780: TW)
0 F2 1-532-464-51 FUSE (T2.5AL/250V) (DB780: SP, MY)
0 F2 1-576-048-11 FUSE, GLASS TUBE (10A/125V) (DA1ES)
0 F905 1-533-919-11 FUSE (12A/250V) (DA1ES/DB780: TW)
0 F906 1-533-919-11 FUSE (12A/250V) (DA1ES/DB780: TW)
0 T901 1-437-821-11 TRANSFORMER, POWER (US, CND)
0 T901 1-437-822-11 TRANSFORMER, POWER
(AEP, UK, SP, MY, KR, CH)
0 T901 1-437-842-11 TRANSFORMER, POWER (TW)
#4 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
(EXCEPT DB780: AEP, UK)
#4 4-974-510-11 SCREW (+BV 3X8 CU) (DB780: AEP, UK)
(DA1ES/DB780: SP, MY)(DA1ES/DB780: TW)
(DA1ES/DB780: SP, MY, TW)
#4
#4
not supplied
F2
F1
F906
F905
T901
254
253
256
255
chassis section-4
252
251
257
258

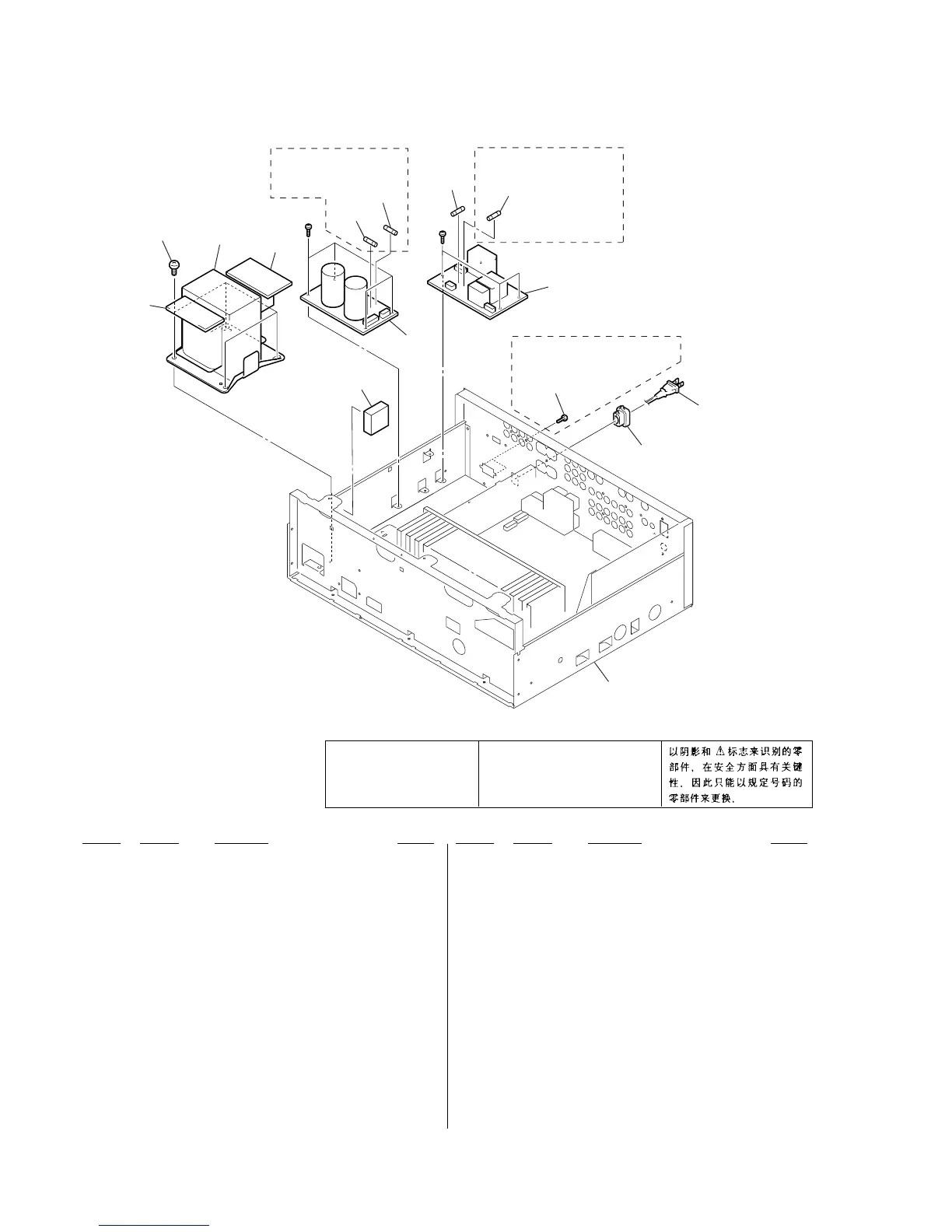

6-6. CHASSIS SECTION-3
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
