10
STR-DA1ES/DB780

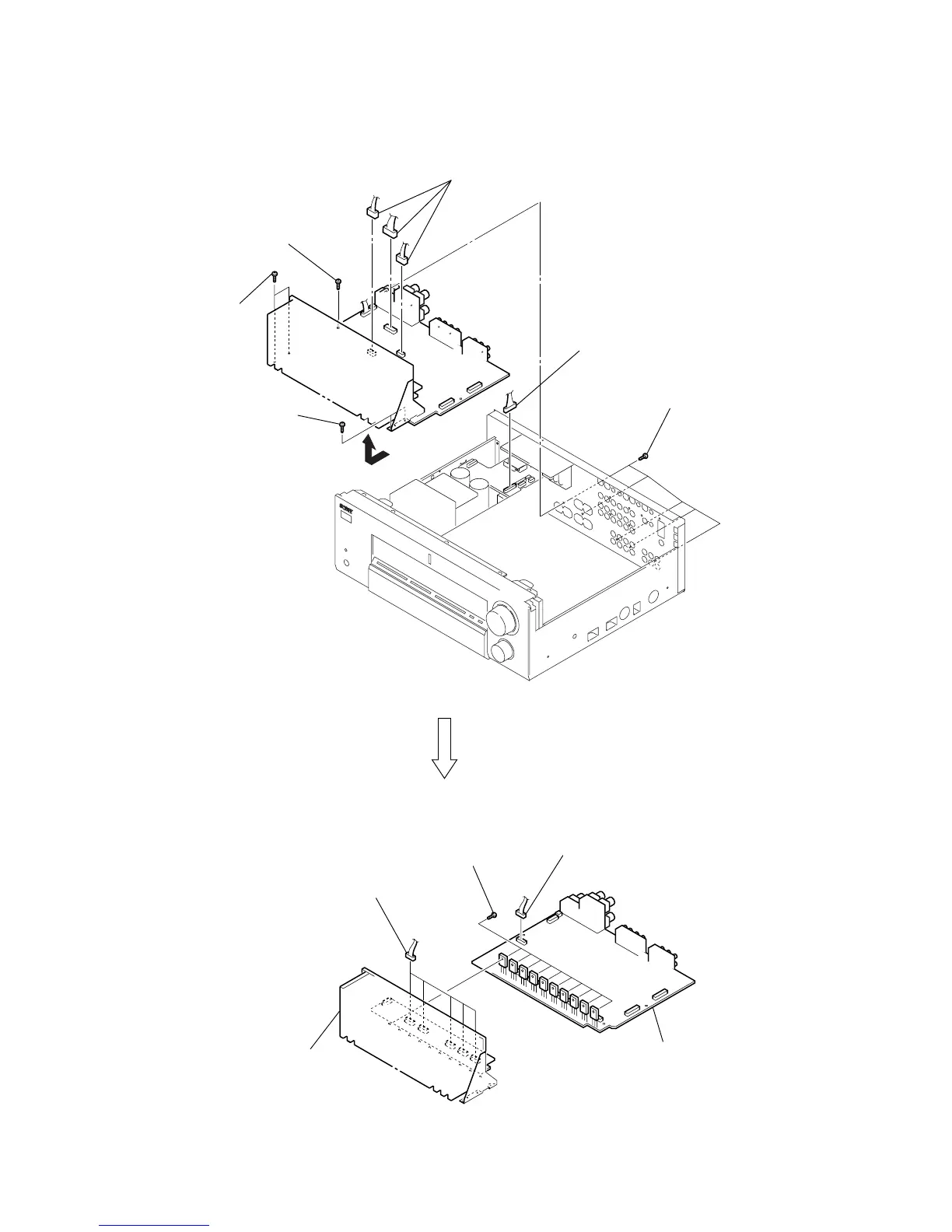

3-6. MAIN BOARD
3
two screws
(BVTP3
×
8)
3
two screws
(BVTP3
×
8)
4
screw (BVTP3
×
8)
2
five screws
(BV/RING)
1
three connectors
(CN801, CN803, CN805)
1
connector
(CN902)
5
6
connector (CN809)
7
ten screws
(transistor)
6
five connectors
(CN631, CN431, CN481, CN531, CN581)
9
main boar
d
8
heat sink
