6
STR-DA1ES/DB780
SECTION 2
GENERAL
This section is extracted from
instruction manual.
+
–
+–
+
–
1 23 4 5
67890
qs qaqdqfqhqjqk qg
ql w; wa ws wd wf
whwl
wk
e; wgwjeaef esed
AUTO DEC qs
CINEMA STUDIO EX A/B/C qg
Cursor buttons (
/ ) wh
CUSTOMIZE wl
Digital Cinema Sound indicator
3
DIMMER ed
DISPLAY ql
Display 4
DOOR OPEN 7
ENTER wg
EQ wj
EQUALIZER e;
FM/AM qf
FM MODE es
FUNCTION 6
INPUT MODE 9
IR receptor 2
Jog dial wf
LEVEL wd
MASTER VOLUME 5
MEMORY w;
MODE +/– 0
MULTI CH DIRECT 8
NORMAL SURR (;PLII) qh
PHONES jack qj
PRESET TUNING +/– qd
RDS PTY ea (28)
(Models of area code CEL, CEK
only)
SET UP ws
SLEEP ea
(Except for models of area code
CEL, CEK)
SPEAKERS ON/OFF qk
SURR wk
TUNING +/– wa
(Except for models of area code
CEL, CEK)
TUNING/PTY SELECT +/– wa
(Models of area code CEL, CEK
VIDEO 3 INPUT jacks ef
2CH ST qa
?/1 (power) 1

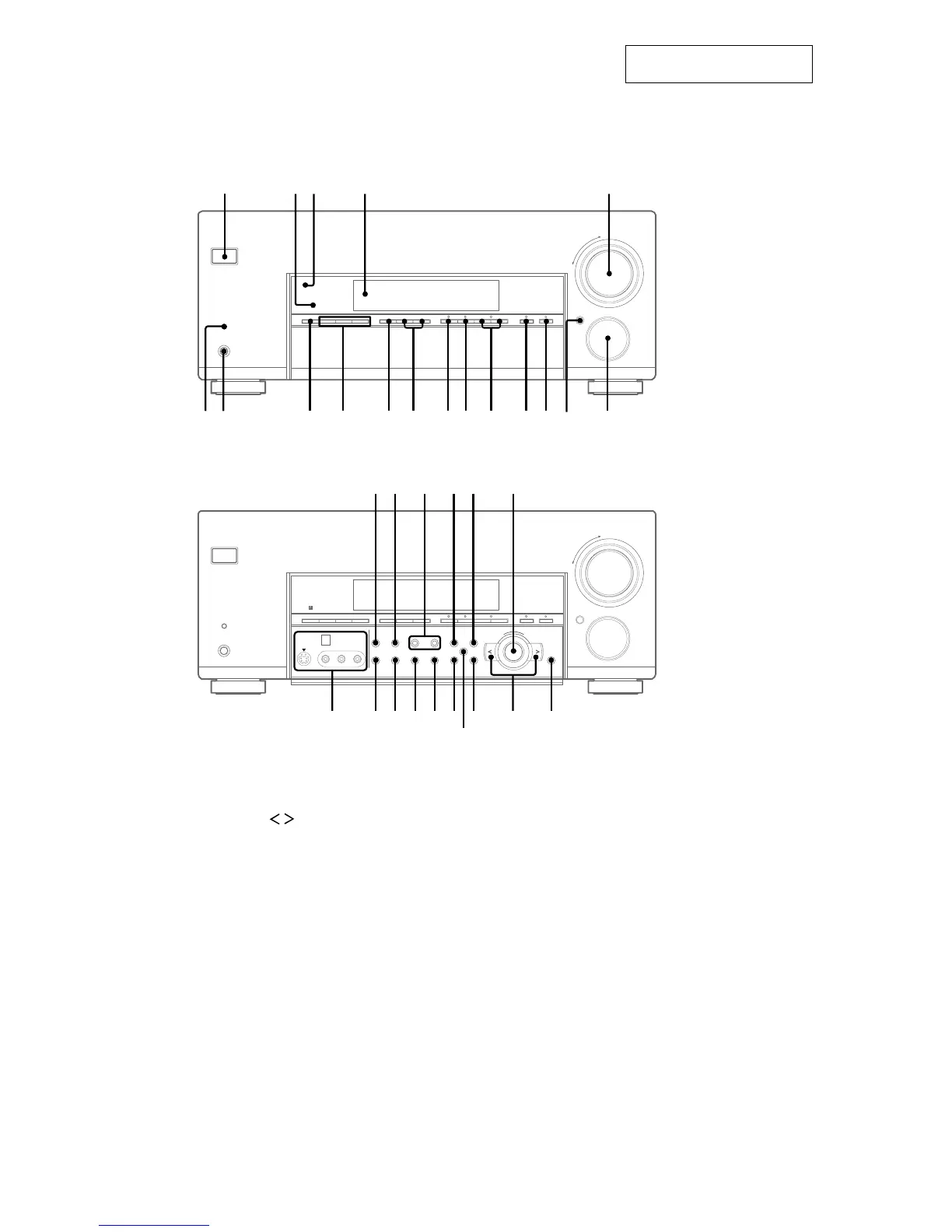

LOCATION OF CONTROLS
– Front Panel –

Sony STR-DB780 Specifications

General

Type	Stereo Receiver
Total Harmonic Distortion	0.09 %
Digital inputs	2 Optical, 1 Coaxial
Weight	10.5 kg
Video inputs	composite
Video outputs	1 composite, 1 S-Video
Output Power	100 Watts (8 Ohms, 20 Hz - 20 kHz, 0.09% THD)
Signal-to-Noise Ratio	96 dB (Line in)
Input Sensitivity	150 mV (Line in)
