Sony STR-DB780 Service Manual

64
STR-DA1ES/DB780
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 451 3-225-496-01 CLAMP (FLAT CLAMP 45)
452 X-4953-882-2 FOOT ASSY (DB780: AEP, UK)
452 X-4953-883-2 FOOT ASSY (DA1ES)
452 X-4953-884-2 FOOT ASSY (DB780: SP, MY, TW, KR, CH)
453 4-985-642-01 CUSHION
* 454 3-703-044-26 LABEL, CAUTION (DA1ES)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-885-09 SCREW +BVTT 4X16 (S)
not supplied
#1
#1
#1
not supplied
#1
#1
#1
#1
#3
#3
453
not supplied
not supplied
not supplied
not supplied
not supplied
452
451
452
453
(DA1ES)
454

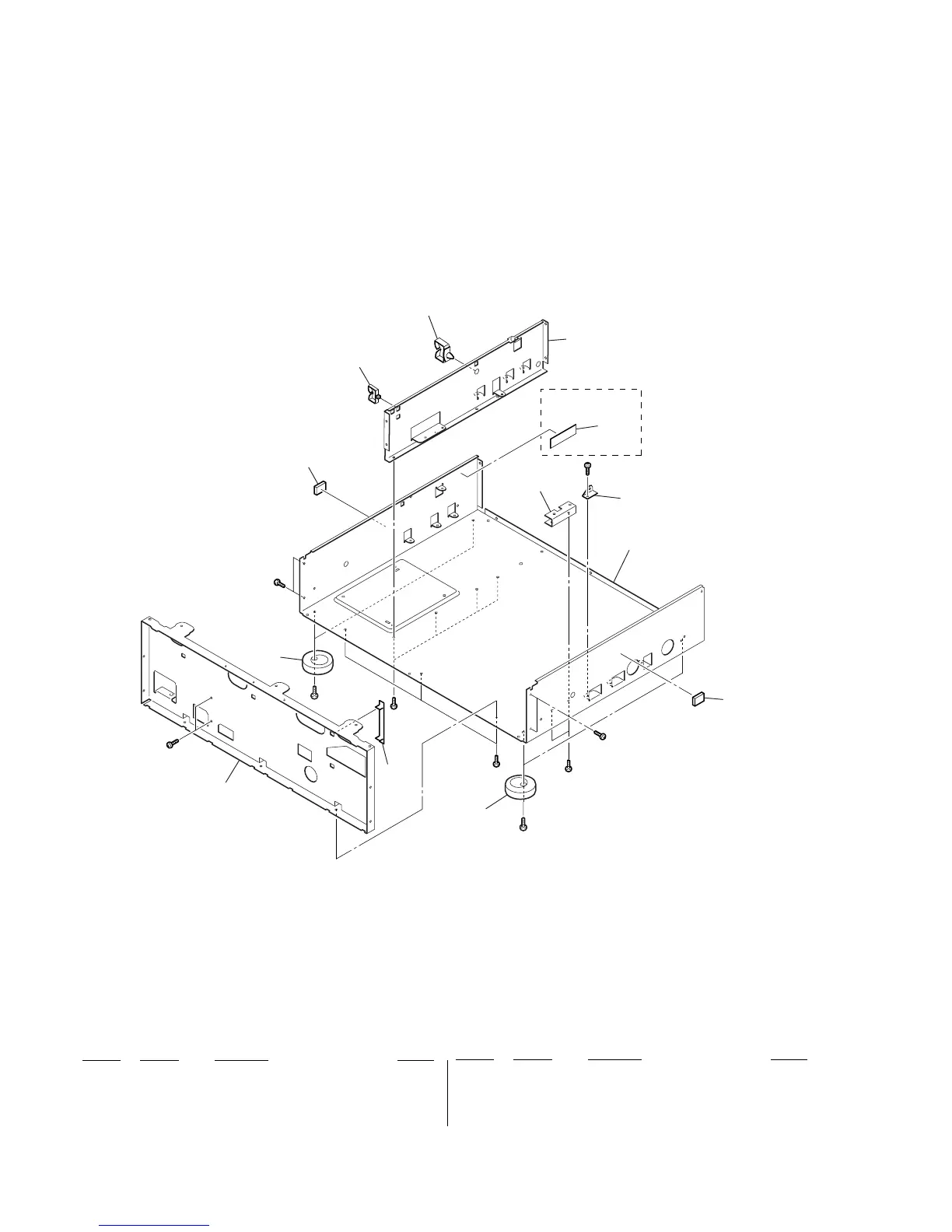

6-10. FOOT SECTION

Sony STR-DB780 Specifications

General

Type	Stereo Receiver
Total Harmonic Distortion	0.09 %
Digital inputs	2 Optical, 1 Coaxial
Weight	10.5 kg
Video inputs	composite
Video outputs	1 composite, 1 S-Video
Output Power	100 Watts (8 Ohms, 20 Hz - 20 kHz, 0.09% THD)
Signal-to-Noise Ratio	96 dB (Line in)
Input Sensitivity	150 mV (Line in)
