Sony STR-DB780 Service Manual

9
STR-DA1ES/DB780

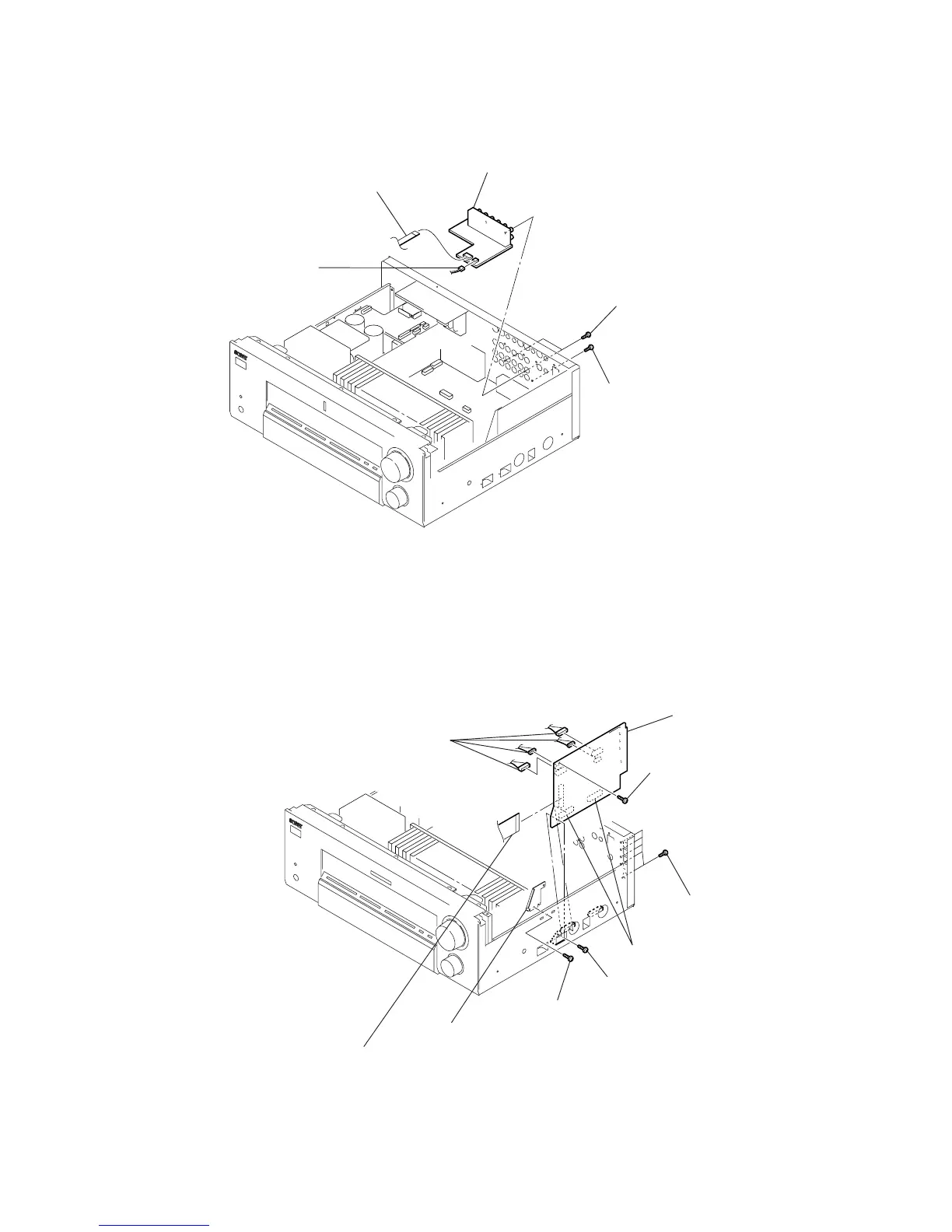

3-4. VIDEO.AU BOARD
1 wire (flat type) (9 core)
(CN201)
4 video.AU board
2 connector
(CN202)
3 two screws (BV/RING)
3 screw (BV/RING)
(DB780: AEP, UK models
)
3-5. DIGITAL BOARD
1 wire (flat type) (31 core)
(CNS4)
2 four connectors
(CN1109, CNP5, CNP6, CNP9)
6 five screw
s
(BV/RING)
8 digital board
7 two connectors
(CN1102, CN1103)
4 bracket (digital 3)
5 screw
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
3 screw
(BVTP3
× 8)
Note:When installing the digital board (CNS4), connecting the
wire (flat type) (31core) to the digital board beforehand
improves the operatability.

Sony STR-DB780 Specifications

General

Type	Stereo Receiver
Total Harmonic Distortion	0.09 %
Digital inputs	2 Optical, 1 Coaxial
Weight	10.5 kg
Video inputs	composite
Video outputs	1 composite, 1 S-Video
Output Power	100 Watts (8 Ohms, 20 Hz - 20 kHz, 0.09% THD)
Signal-to-Noise Ratio	96 dB (Line in)
Input Sensitivity	150 mV (Line in)
