Sony STR-DB795 Service Manual

10
STR-DB795

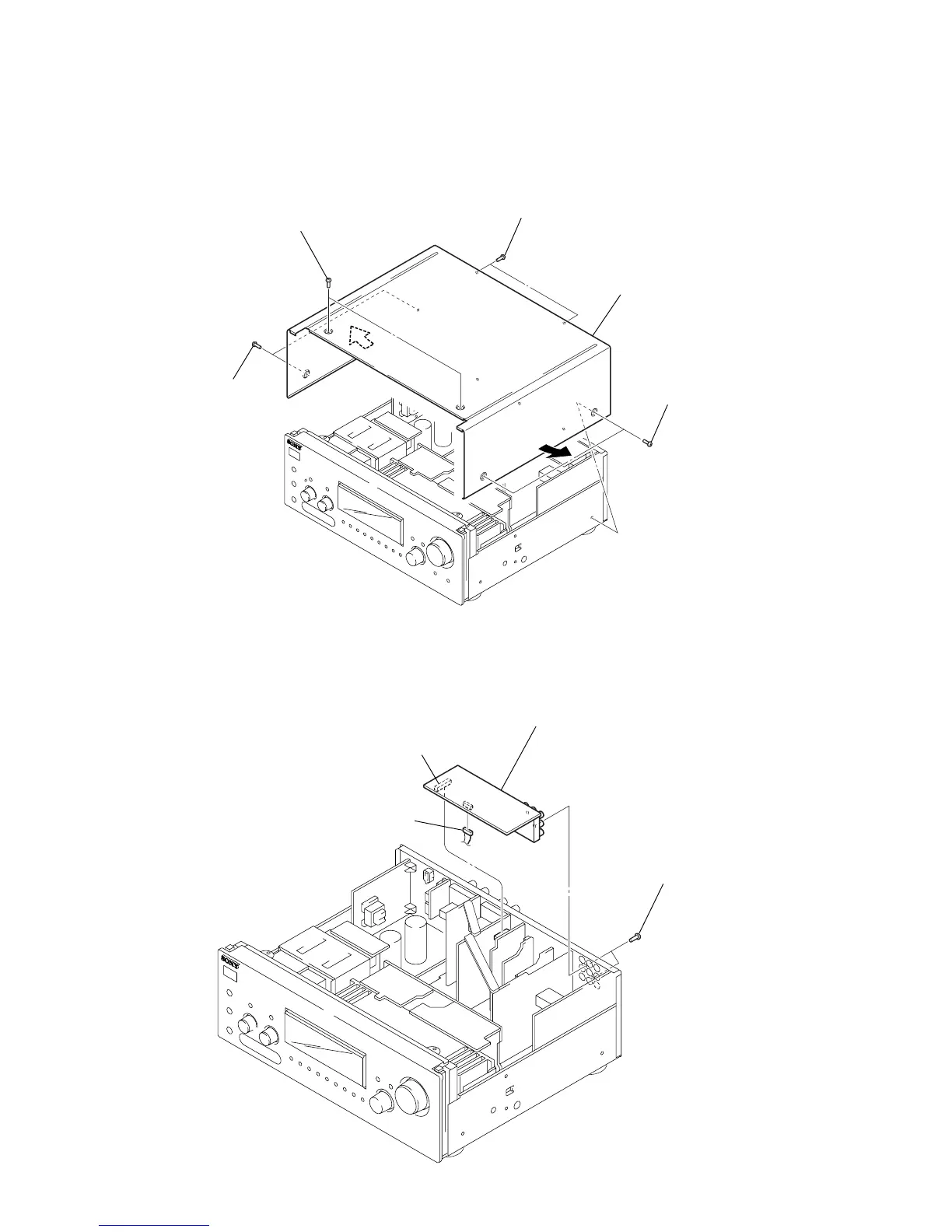

3-3. COMP-V BOARD
1 two screws
(BVTP3
× 8)
7 case (414535)
4 two screw
s
(flat head)
3 two screws
(flat head)
2 two screws
(flat head)
5
6
3 connector (CN351)
2 connector (CNP352)
4 COMP-V board
1 two screws
(BVTP3
× 8)
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE (414535)

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
