68
STR-DB795

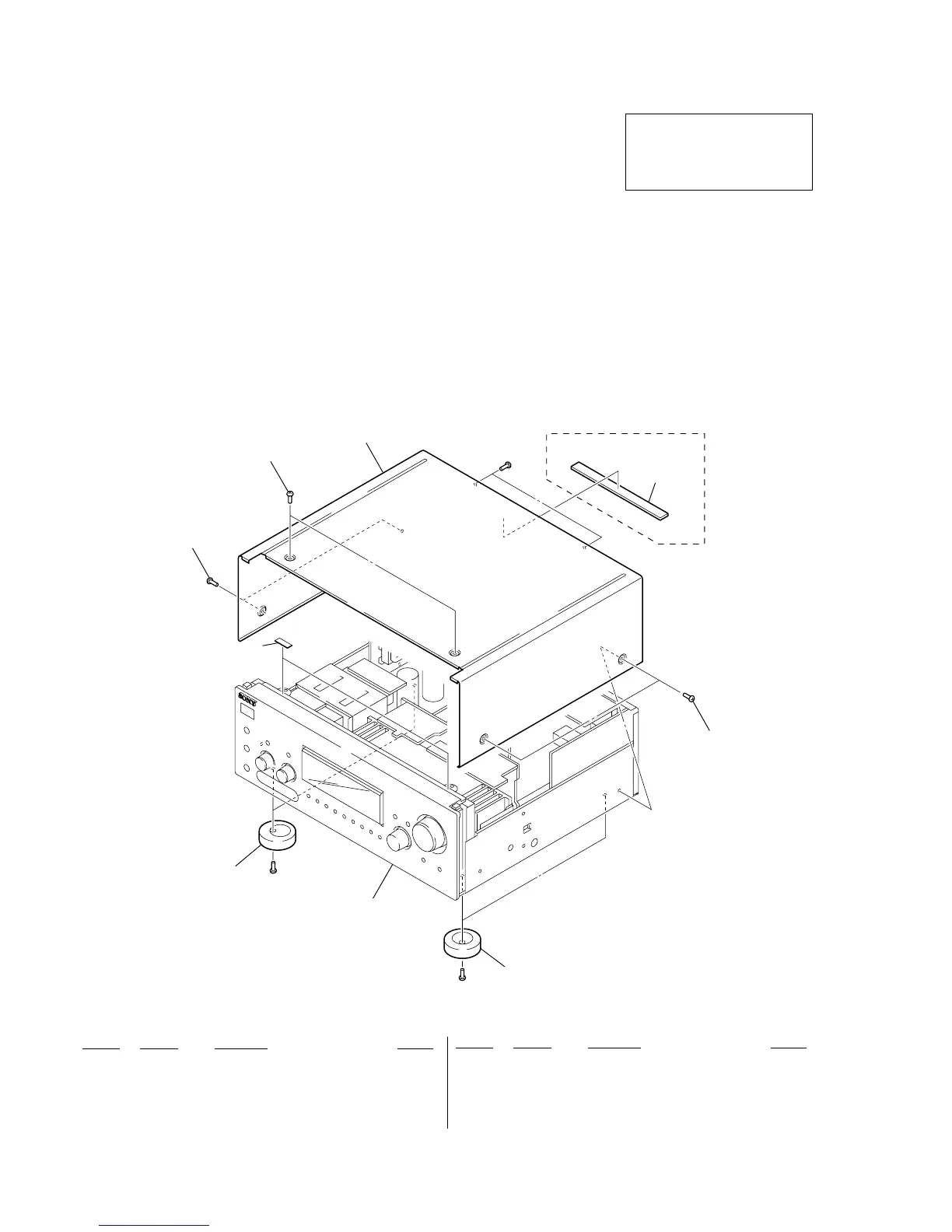

7-1. CASE SECTION
2
3
3
3
(EXCEPT AEP)
1
1
back panel section
#2
#3
not supplied
#2
4
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-2022-910-1 FOOT ASSY
2 4-248-594-01 CASE (414535) (SILVER)
2 4-248-594-21 CASE (414535) (GOLD)
2 4-900-512-02 CASE (414535) (BLACK)
3 4-227-843-03 SCREW (TP), FLAT HEAD (BLACK)
3 4-227-843-31 SCREW (TP), FLAT HEAD (SILVER, GOLD)
4 4-860-518-00 CUSHION
#2 7-685-885-09 SCREW +BVTT 4X16 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
• Abbreviation
AUS : Australian model
KR : Korean model
MY : Malaysia model
SP : Singapore model
• Color variation
SILVER : AEP, UK, Australian
GOLD : Korean, Singapore, Malaysia, Taiwan
BLACK : AEP, UK, Australian
TW : Taiwan model
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
To Next Page
