Sony STR-DB795 Service Manual

72
STR-DB795

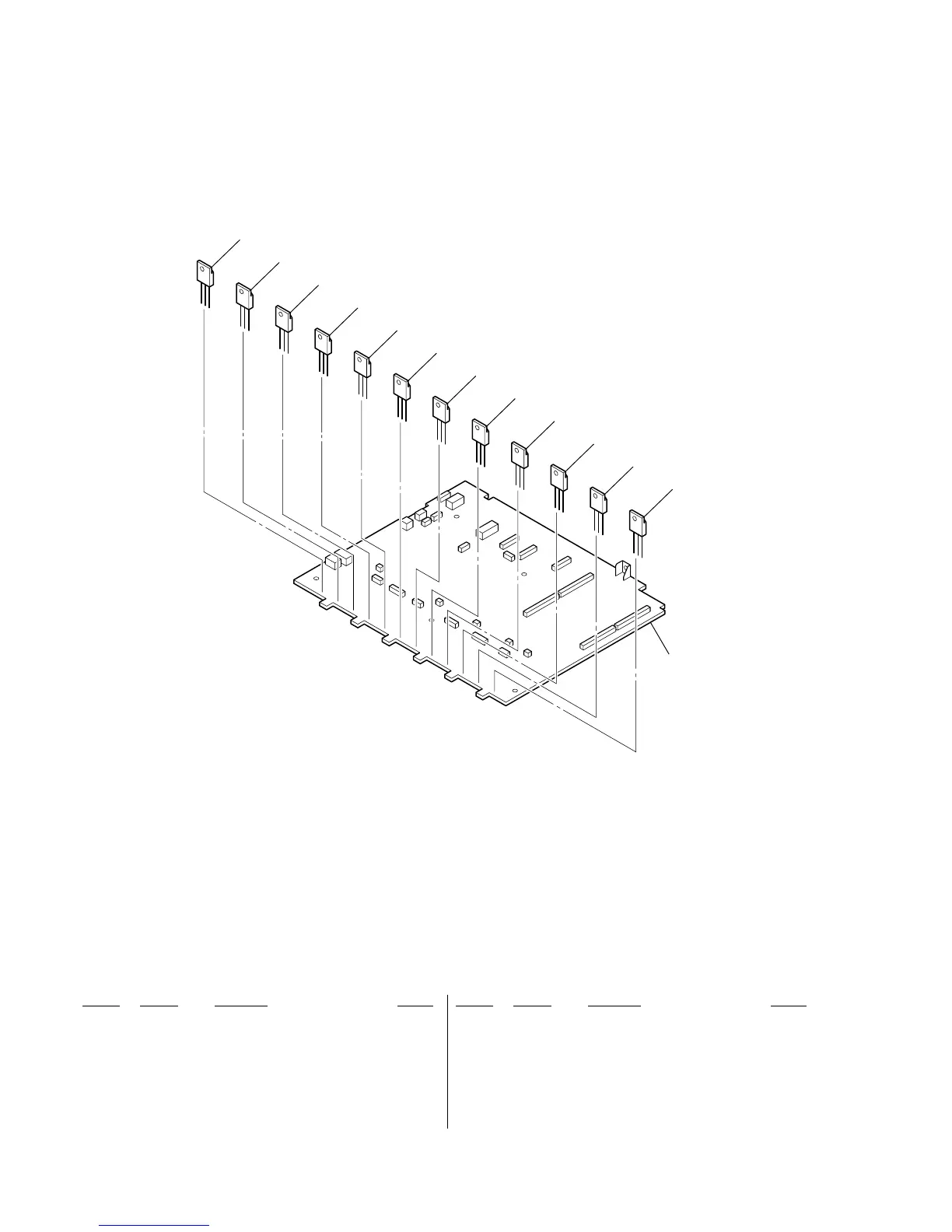

7-5. MAIN BOARD BLOCK
201
Q40
3
Q402
Q453
Q452
Q603
Q602
Q653
Q652
Q503
Q502
Q553
Q552
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 A-1054-310-A MAIN BOARD, COMPLETE
Q402 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q403 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q452 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q453 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q502 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q503 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q552 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q553 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q602 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q603 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q652 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q653 6-702-391-01 TRANSISTOR MP1620-OPY-MK

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
