Sony STR-DB795 Service Manual

76
STR-DB795

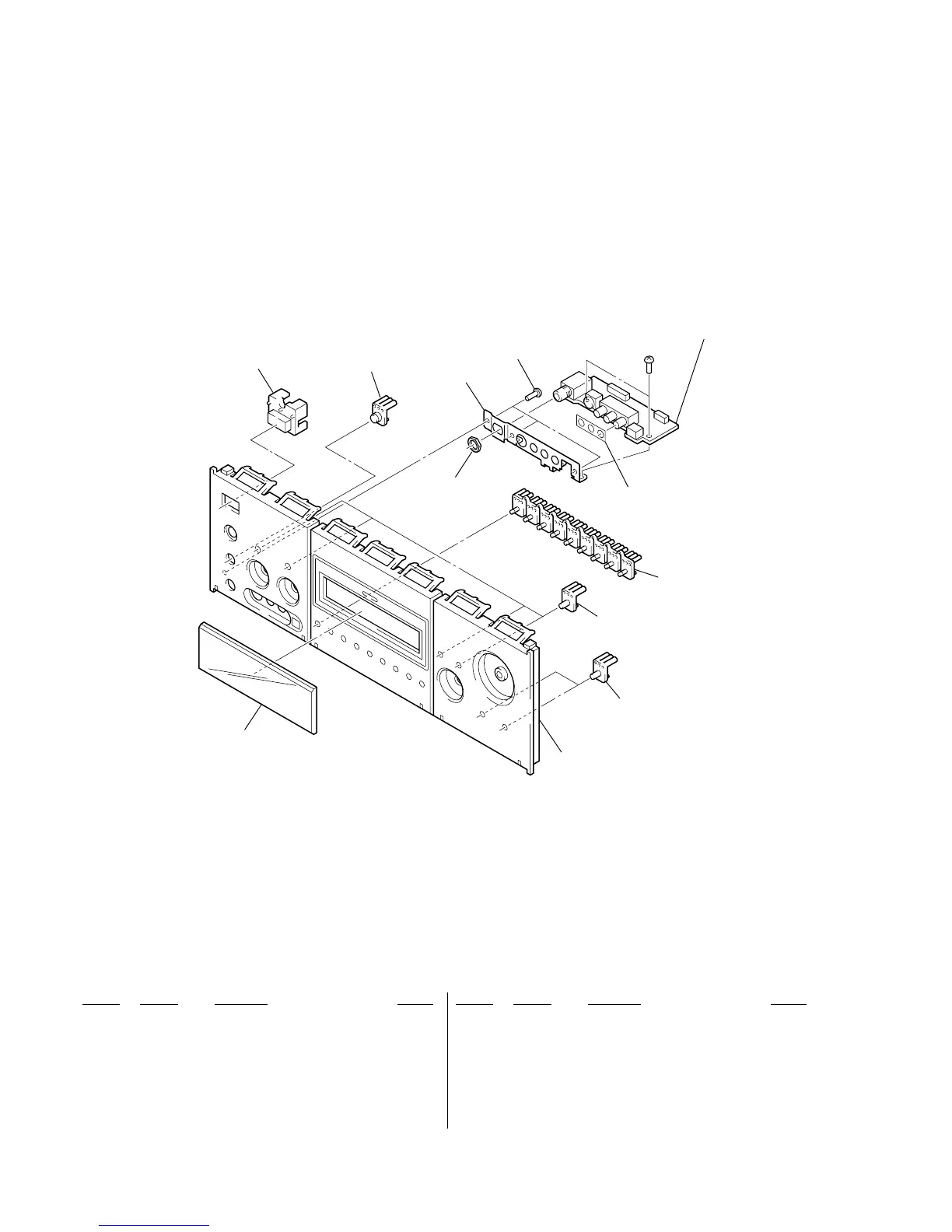

7-9. FRONT PANEL BLOCK-3
401
403
406
402
407
405
not supplied
not supplied
not supplied
(HP-V3 board)
#3
supplied with J1086
403
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 4-245-438-02 PLATE, INDICATION (BLACK)
401 4-245-438-12 PLATE, INDICATION (GOLD, SILVER)
402 4-998-592-01 BUTTON (POWER) (BLACK)
402 4-998-592-12 BUTTON (POWER) (GOLD)
402 4-998-592-31 BUTTON (POWER) (SILVER)
403 4-245-436-01 BUTTON (MENU) (BLACK)
403 4-245-436-21 BUTTON (MENU) (GOLD)
403 4-245-436-31 BUTTON (MENU) (SILVER)
405 4-951-620-01 SCREW (2.6X8), +BVTP
406 4-245-435-02 BUTTON (MODE)
407 4-245-434-01 BUTTON (SP) (BLACK)
407 4-245-434-21 BUTTON (SP) (GOLD)
407 4-245-434-31 BUTTON (SP) (SILVER)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
