Sony STR-DB795 Service Manual

73
STR-DB795

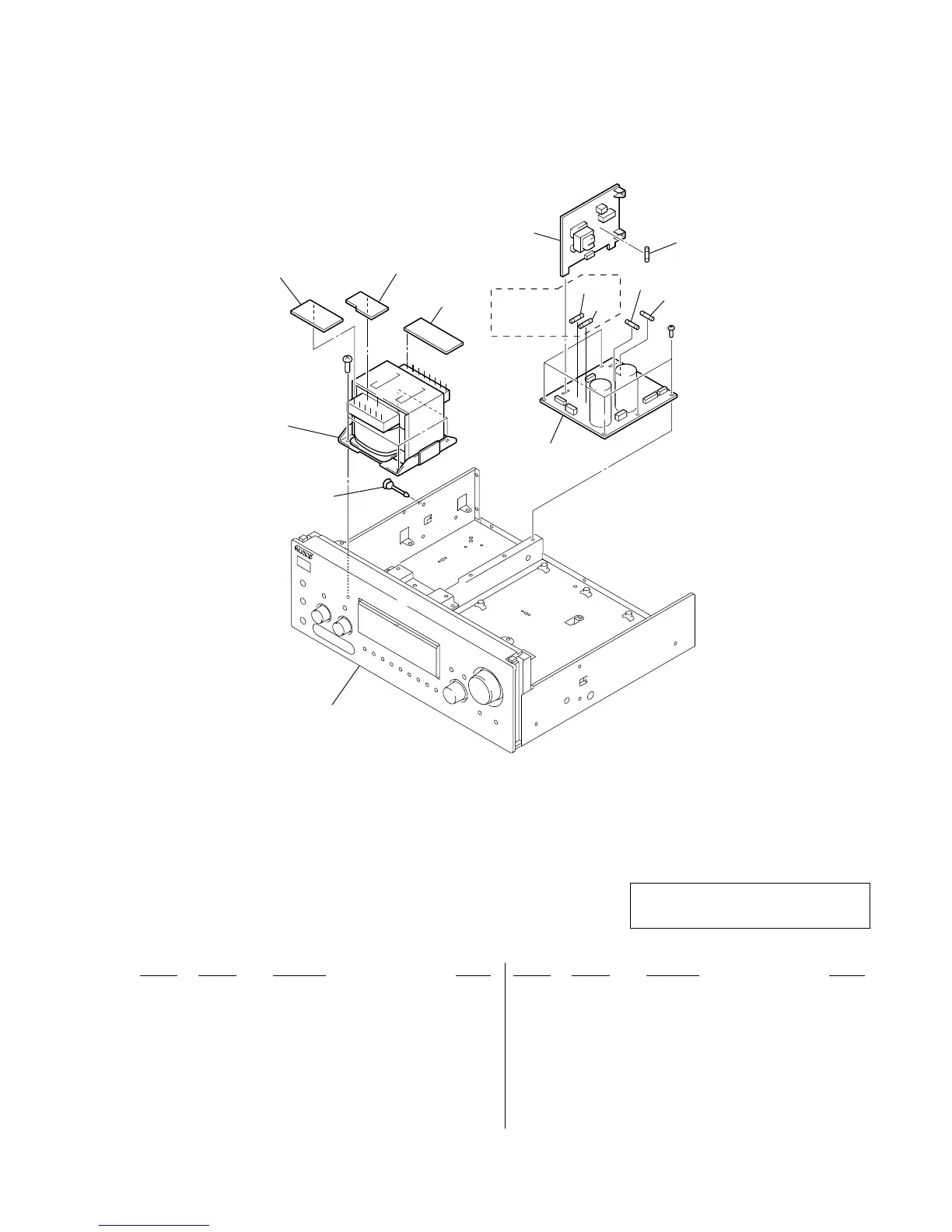

7-6. CHASSIS SECTION-3
251
252
253
254
T901
not supplied
front panel section
not supplied
(DC 1 board)
F1
F904
F905
F906
F903
#3
#4
(SP, MY)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 1-689-176-11 SEC (3) BOARD
252 1-689-173-11 PRI BOARD
253 1-689-174-11 SEC (1) BOARD
254 1-863-051-11 AC BOARD
0F1 1-532-504-51 FUSE (T4AL/250V) (EXCEPT TW)
0F1 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (TW)
0F903 1-532-465-32 FUSE (T3.15AL/250V)
0F904 1-532-465-32 FUSE (T3.15AL/250V)
0F905 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (SP, MY)
0F906 1-533-312-11 FUSE, GLASS CYLINDRICAL (DIA.5)
(10A/125V) (SP, MY)
0T901 1-443-436-11 POWER TRANSFORMER (TW)
0T901 1-443-437-11 POWER TRANSFORMER (SP, MY)
0T901 1-443-438-11 POWER TRANSFORMER (AEP, UK, KR, AUS)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-881-09 SCREW +BVTT 4X8 (S)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
