Sony STR-DB795 Service Manual

69
STR-DB795

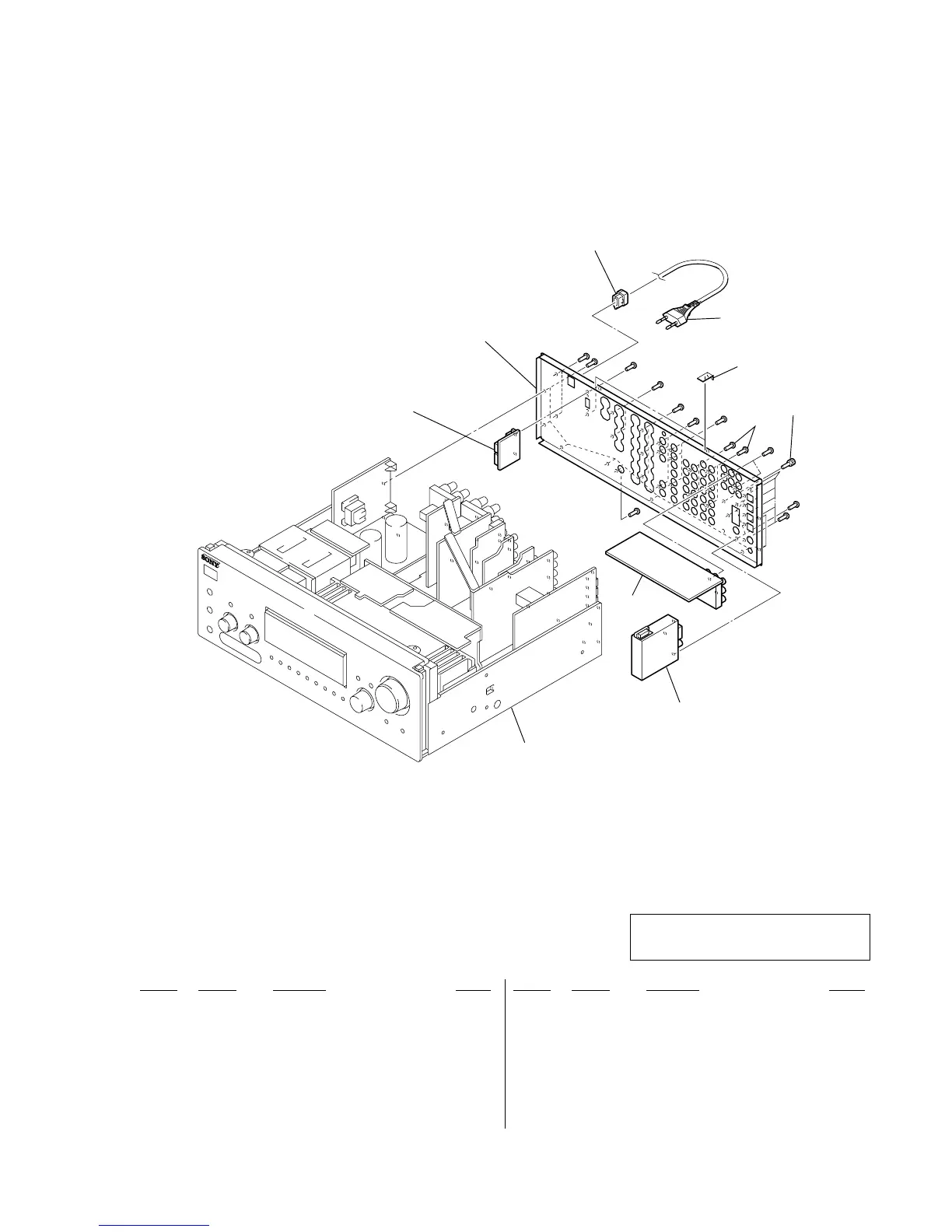

7-2. CHASSIS SECTION-1
52
53
54
55
51
not
supplied
(4-8 board)
not
supplied
TU301
#3
#3
#3
#3
#3
#7
#3
#3
not supplie
d
#3
#3
#3
chassis section
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 A-1054-326-A COMP-V BOARD, COMPLETE
(EXCEPT TW, KR)
51 A-1070-813-A COMP-V BOARD, COMPLETE (TW, KR)
* 52 3-703-244-00 BUSHING (2104), CORD
053 1-696-847-22 CORD, POWER (AUS)
053 1-769-079-23 CORD, POWER (KR)
053 1-777-071-23 CORD, POWER (SP, MY)
053 1-827-597-41 CORD, POWER (TW)
053 1-829-626-11 CORD, POWER (AEP, UK)
54 4-947-010-01 SCREW, FEEDER FIXED
55 4-974-510-11 SCREW (+BV 3X8 CU)
TU301 1-693-578-21 TUNER (AEP, UK)
TU301 1-693-580-24 TUNER (SP, MY, TW, KR, AUS)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE IT-3
#7 7-685-647-79 SCREW +BVTP 3X10 TYPE IT-3
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
