Sony STR-DB795 Service Manual

75
STR-DB795

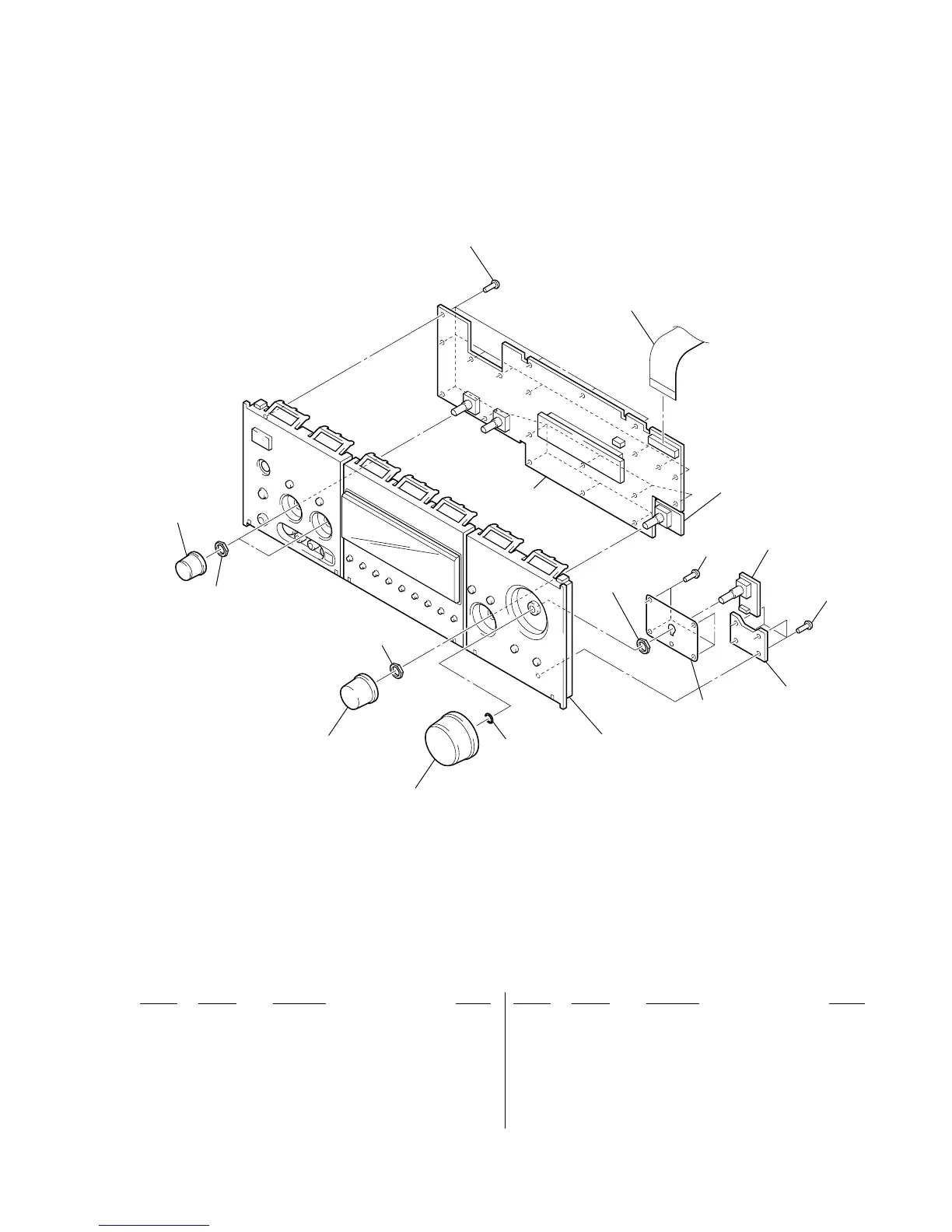

7-8. FRONT PANEL BLOCK-2
353
352
351
357
356
354
355
356
supplied
with RV1051, 1052
supplied
with RV1061
supplied
with RV1060
panel base section
not
supplied
not supplied
(VOL board)
not supplied
(DIRECT board
)
356
not supplied
(FUN board)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 4-240-507-01 KNOB (VOL) (BLACK)
351 X-4953-671-1 KNOB (VOL-E) ASSY (GOLD)
351 X-4953-672-1 KNOB (VOL-E) ASSY (SILVER)
352 4-232-569-02 KNOB (FN DE9) (BLACK)
352 4-232-569-12 KNOB (FN DE9) (GOLD)
352 4-232-569-22 KNOB (FN DE9) (SILVER)
353 4-245-437-01 KNOB (MENU) (BLACK)
353 4-245-437-21 KNOB (MENU) (GOLD)
353 4-245-437-31 KNOB (MENU) (SILVER)
354 1-773-339-11 WIRE (FLAT TYPE) (31 CORE)
355 A-1054-314-A DISPLAY BOARD, COMPLETE
356 4-951-620-01 SCREW (2.6X8), +BVTP
357 3-350-426-01 SPRING, RING

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
