71
STR-DB795

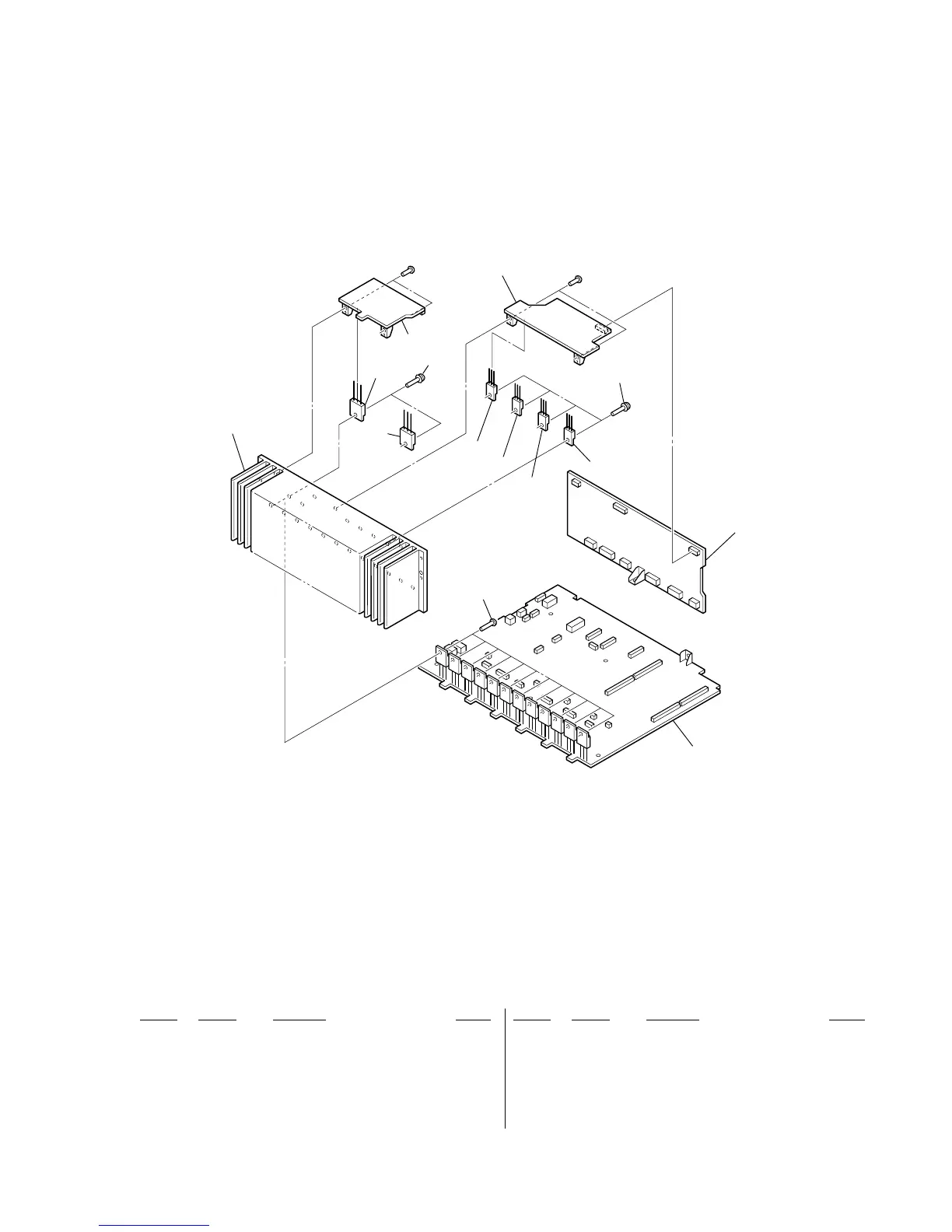

7-4. MAIN BLOCK SECTION
156
153
157
152
153
not
supplied
MAIN board section
Q702
Q703
IC952
IC953
IC954
IC955
#3
#3
153
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
152 A-1054-419-A SBL BOARD, COMPLETE
153 3-905-609-11 SCREW (TRANSISTOR)
156 A-1054-282-A DC2 BOARD, COMPLETE
157 A-1054-281-A A CLASS BOARD, COMPLETE
IC952 8-759-231-53 IC TA7805S
IC953 8-759-231-53 IC TA7805S
IC954 8-759-245-87 IC TA79015S
IC955 8-759-231-59 IC TA7815S
Q702 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q703 6-702-391-01 TRANSISTOR MP1620-OPY-MK
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
