Sony STR-DB795 Service Manual

74
STR-DB795

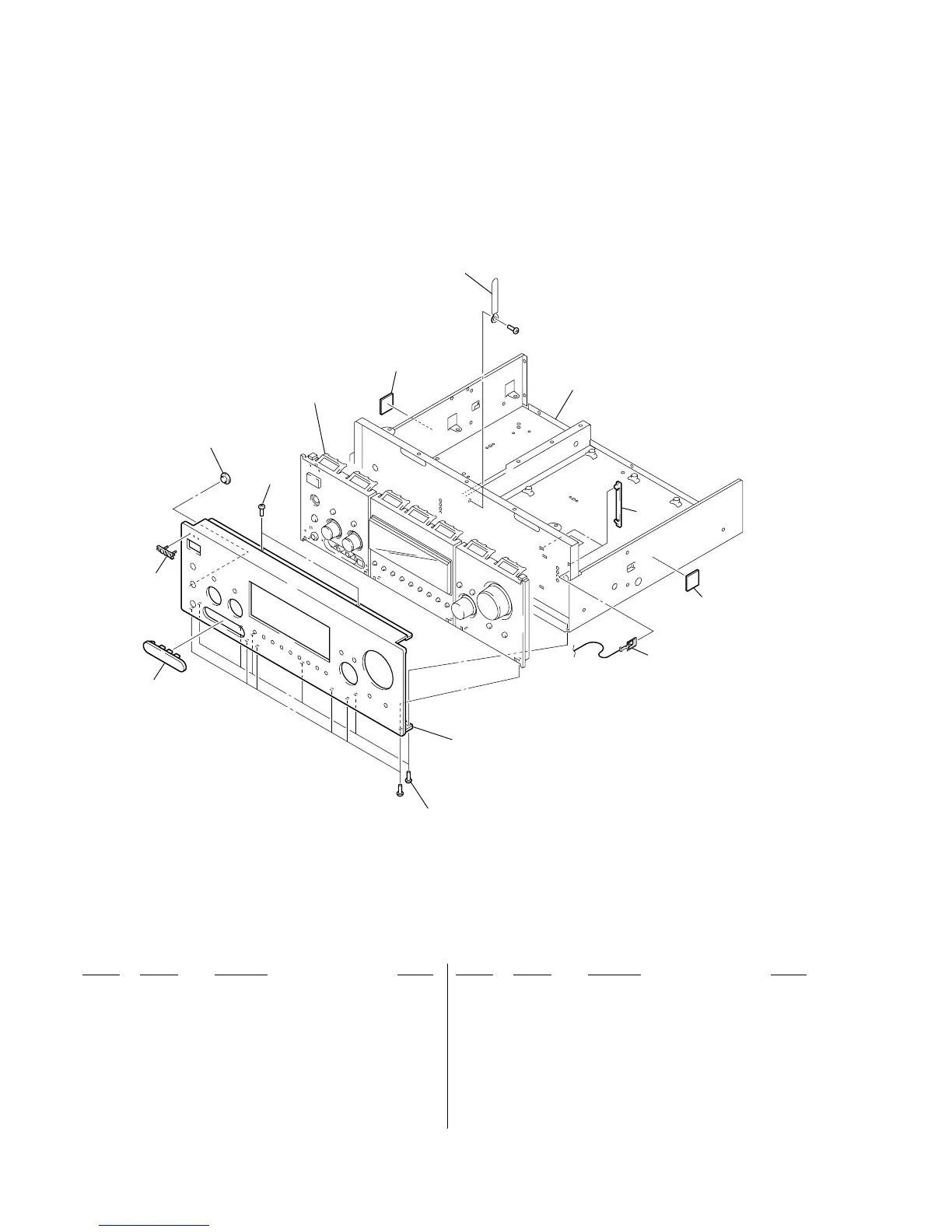

7-7. FRONT PANEL BLOCK-1
301
302
303
306
305
307
307
306
304
not
supplied
not supplied
#3
not
supplied
DISPLAY board section
#3
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 X-4955-963-2 LID ASSY (BLACK)
301 X-4955-967-1 LID ASSY (GOLD)
301 X-4955-968-2 LID ASSY (SILVER)
302 4-942-568-41 EMBLEM (No. 5), SONY (BLACK)
302 4-942-568-51 EMBLEM (No. 5), SONY (GOLD)
302 4-942-568-61 EMBLEM (No. 5), SONY (SILVER)
303 X-4953-000-1 WINDOW ASSY, REMOTE CONTROL
304 2-050-931-01 FRONT PANEL (AL DB795) (BLACK) (AEP, UK)
304 2-050-931-11 FRONT PANEL (AL DB795) (BLACK) (AUS)
304 2-050-931-21 FRONT PANEL (AL DB795) (SILVER) (AEP, UK)
304 2-050-931-31 FRONT PANEL (AL DB795) (SILVER) (AUS)
304 2-050-931-41 FRONT PANEL (AL DB795) (GOLD)
(SP, MY, KR)
305 3-064-084-01 CLAMP (FCR-60), FLAT
306 3-704-515-22 SCREW (BV/RING) (BLACK)
306 3-704-515-32 SCREW (BV/RING) (SILVER, GOLD)
307 4-985-642-01 CUSHION
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
