Sony STR-DB795 Service Manual

70
STR-DB795

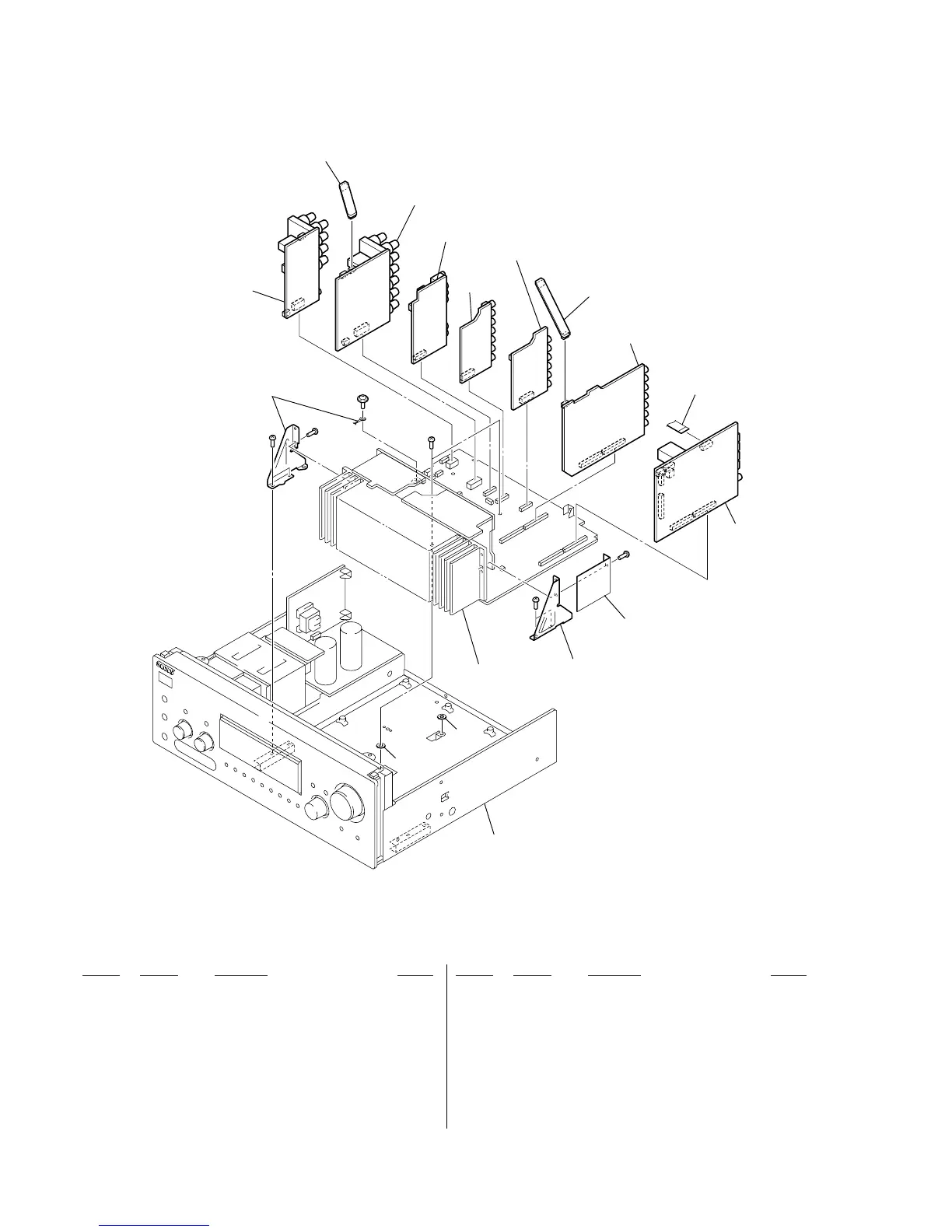

7-3. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-863-053-11 SP-B BOARD
102 1-863-050-11 STAY 4 BOARD
103 1-863-052-11 SP-A BOARD
104 1-863-054-11 STAY 3 BOARD
105 A-1054-327-A S-VIDEO BOARD, COMPLETE
106 1-688-645-11 VIDEO BOARD
107 A-1054-319-A AU-IN BOARD, COMPLETE
108 1-769-938-11 WIRE (FLAT TYPE) (11 CORE)
(SP, MY, TW, KR, AUS)
108 1-773-002-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
109 A-1054-338-A DIGITAL BOARD, COMPLETE (AEP, UK)
109 A-1055-433-A DIGITAL BOARD, COMPLETE (SP, MY)
109 A-1070-832-A DIGITAL BOARD, COMPLETE (TW, KR)
109 A-1070-859-A DIGITAL BOARD, COMPLETE (AUS)
110 4-971-099-01 WASHER (P)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-682-948-01 SCREW +PSW 3X8
103
101
102
105
104
107
108
109
#3
#3
#6
not supplied
(VIDEO-AU board)
#3
#3
#3
not
supplied
not
supplied
main block section
not
supplied
AC board section
106
110
110

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
