STR-DB795
5454
STR-DB795

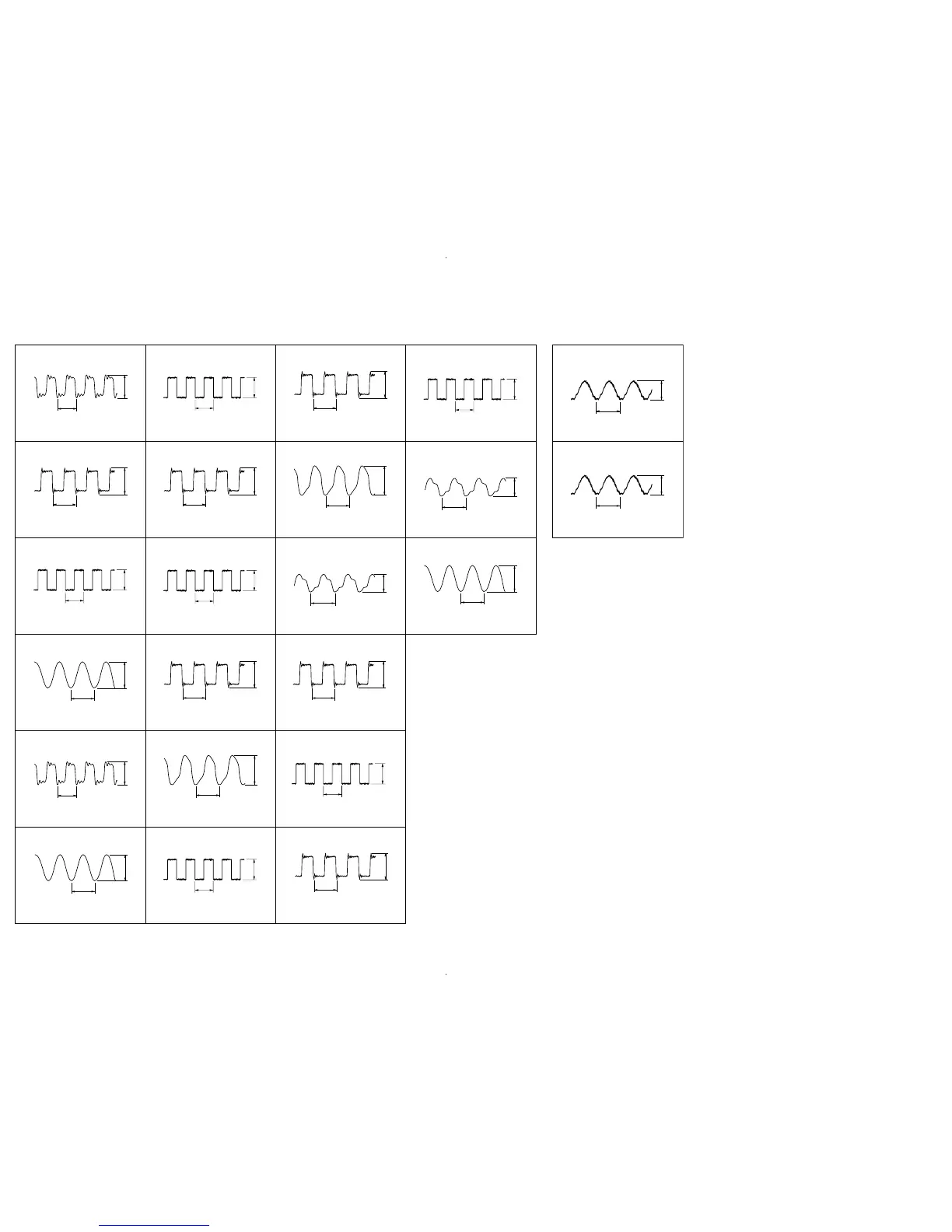

Waveforms
1
IC1101 qd (CKOUT)
1 V/DIV, 50 ns/DIV
2
IC1101 qf (BCK)
1 V/DIV, 100 ns/DIV
3
IC1101 qg (LRCK)
1 V/DIV, 10
µ
s/DIV
4
IC1101 w; (XMCK)
1 V/DIV, 20 ns/DIV
7
IC1201 qg (LRCKI1),
wk (LRCKI2)
1 V/DIV, 10
µ
s/DIV
8
IC1201 qj (BCKI1),
wl (BCKI2)
1 V/DIV, 100 ns/DIV
9
IC1201 ql (LRCKO)
1 V/DIV, 10
µ
s/DIV
q;
IC1201 w; (BCKO)
1 V/DIV, 100 ns/DIV
qa
IC1201 ws (KFSIO)
1 V/DIV, 20 ns/DIV
5
IC1101 wa (XOUT)
1 V/DIV, 20 ns/DIV
qs
IC1401 qd (LRCK)
1 V/DIV, 10
µ
s/DIV
qd
IC1401 qf (BCK)
1 V/DIV, 100 ns/DIV
qf
IC1401 qh (SYSCLK)
1 V/DIV, 20 ns/DIV
qg
IC1501 ek (SCKI)
1 V/DIV, 20 ns/DIV
qh
IC1501 r; (BCK)
2 V/DIV, 100 ns/DIV
wa
IC1703 tj (X1)
1 V/DIV, 20 ns/DIV
6
IC1201 qs (MCLK2)
1 V/DIV, 20 ns/DIV
qj
IC1501 ra (LRCK)
1 V/DIV, 10
µ
s/DIV
qk
IC1502 1 (BCK)
2 V/DIV, 100 ns/DIV
ql
IC1502 3 (LRCK)
1 V/DIV, 10
µ
s/DIV
w;
IC1502 qh (SCK)
1 V/DIV, 20 ns/DIV
ea
IC371 4 (XTAL) (VIDEO 1
mode) (EXCEPT TW, KR)
50 mV/DIV, 100 ns/DIV
ea
IC371 4 (XTAL)
(VIDEO 1 mode) (TW, KR)
50 mV/DIV, 100 ns/DIV
81 ns
4.2 Vp-p
81 ns
4.4 Vp-p
326 ns
4.0 Vp-p
326 ns
5.5 Vp-p
326 ns
5.4 Vp-p
326 ns
6.5 Vp-p
326 ns
6.5 Vp-p
326 ns
4.6 Vp-p
20.8
µ
s
3.4 Vp-p
20.8
µ
s
3.6 Vp-p
20.8
µ
s
3.6 Vp-p
20.8
µ
s
3.6 Vp-p
20.8
µ
s
3.6 Vp-p
20.8
µ
s
3.6 Vp-p
81 ns
4.6 Vp-p
72 ns
4.0 Vp-p
60.5 ns
3.8 Vp-p
81 ns
5.1 Vp-p
81 ns
4.9 Vp-p
5.3 Vp-p
81 ns
5.3 Vp-p
81 ns
226 ns
120 mVp-p
279 ns
120 mVp-p
– DIGITAL Board – – COMP-V Board –
