Sony STR-DB795 Service Manual

57
STR-DB795

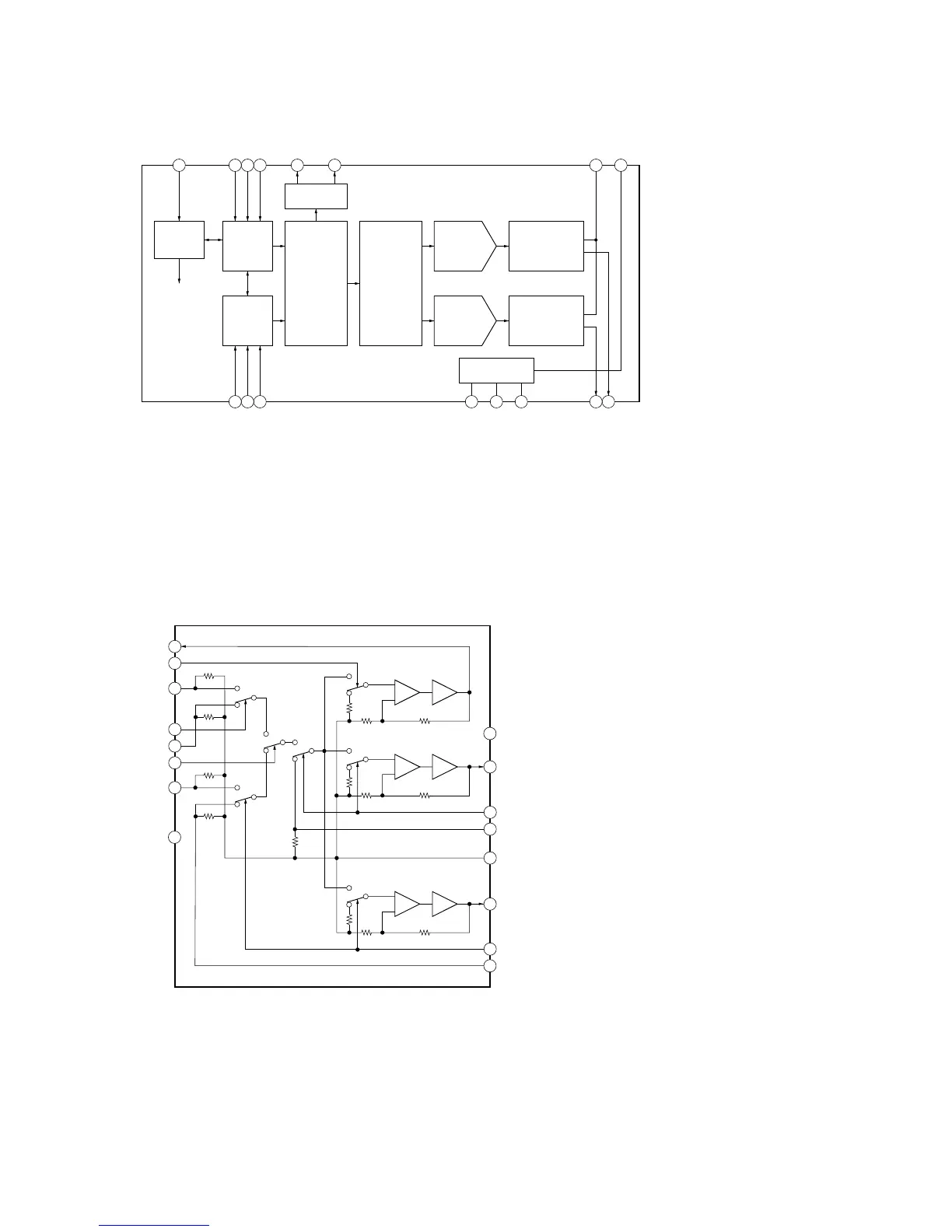

IC1502 PCM1748E/2K
– VIDEO Board –
IC301 NJM2590D
SCK
1 2 3
7 84 5 6
SERIAL
INPUT
INTERFACE
10
9
BCK
DATA LRCK
VOUTL
VOUTR
DGND
VDD
VCC
VCOM AGND
FUNCTION
CONTROL
INTERFACE
SYSTEM
CLOCK
MANAGER
8 TIME OVER
SAMPLING
DIGITAL FILTER
WITH
FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
D/A
CONVERTER
D/A
CONVERTER
OUTPUT AMP AND
LOW-PASS FILTER
OUTPUT AMP AND
LOW-PASS FILTER
ZERO DETECT
POWER SUPPLY
12
11
ZEROL ZEROR
15
14
ML MC
16
13
MD
SYSTEM
CLOCK
15 VOUT2
16 V+
14 SW1
75Ω
DRIVER
6dB
AMP
75Ω
DRIVER
6dB
AMP
11 VOUT3
75Ω
DRIVER
6dB
AMP
13 VIN1
12 GND
10 SW2
9 VIN2
3VIN5
4SW3
5VIN4
6SW4
7VIN3
2SW5
1VOUT1
8V–

Sony STR-DB795 Specifications

General

Dimensions (WxDxH)	430 x 401 x 161 mm
Power requirements	230V, 50/60Hz
Supported radio bands	FM, MW
Radio Data System (RDS)	Yes
I/O ports	5.1 Analogue Input - 1.0 Audio Input - 3.0 Audio Input Front - 1 AV, S-Video Audio Output - 1.0 Control A1 / A1 II Digital Input: coaxial - 1.0 Digital Input: optical - 4.0 Digital Output: optical - 1.0 Headphone Output Monitor Output (Picture): FBAS - 1.0 Monitor Output (Picture): S-Video - 1.0 Phono Input Speaker Selector A S-Video Input - 4.0 S-Video Output - 1.0 Video Input - 5.0 Video Output - 2.0
Connectivity technology	Wired
Frequency range	20 - 20000 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	290 W

Weight and Dimensions

Weight	12500 g
