Sony STR-DB925 Service Manual

– 19 – – 20 –
STR-DB925

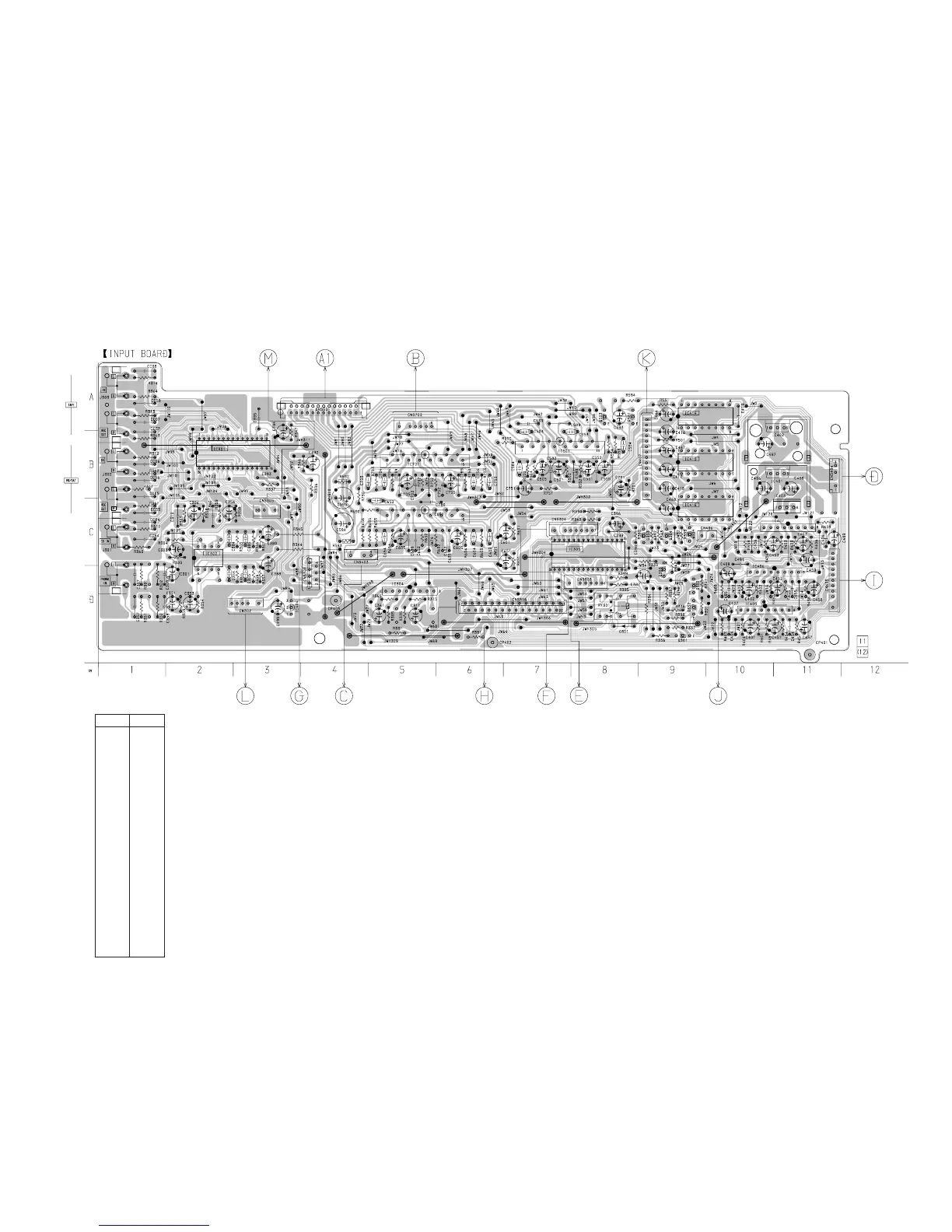

3-4. PRINTED WIRING BOARD – INPUT SECTION –
• See page 6 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D301 D-8
IC301 B-2
IC302 C-2
IC303 C-8
IC304 D-5
IC401 B-11
IC402 B-11
IC403 C-11
IC404 D-3
IC405 D-10
IC406 D-10
IC407 C-11
IC414 A-9
IC415 B-9
IC416 C-9
IC501 B-7
IC601 C-5
IC701 B-5
Q301 E-9
Q302 D-9
Q303 D-9
Q304 C-9
Q352 D-9
Q353 C-9
Q354 C-9
Q501 A-8
Q503 A-8
(Page 48) (Page 24) (Page 31) (Page 47)
(Page 47)
(Page 23)
(Page 47)(Page 40)(Page 40)(Page 56)(Page 32)(Page 43)(Page 44)
