Sony STR-DB925 Service Manual

– 71 –

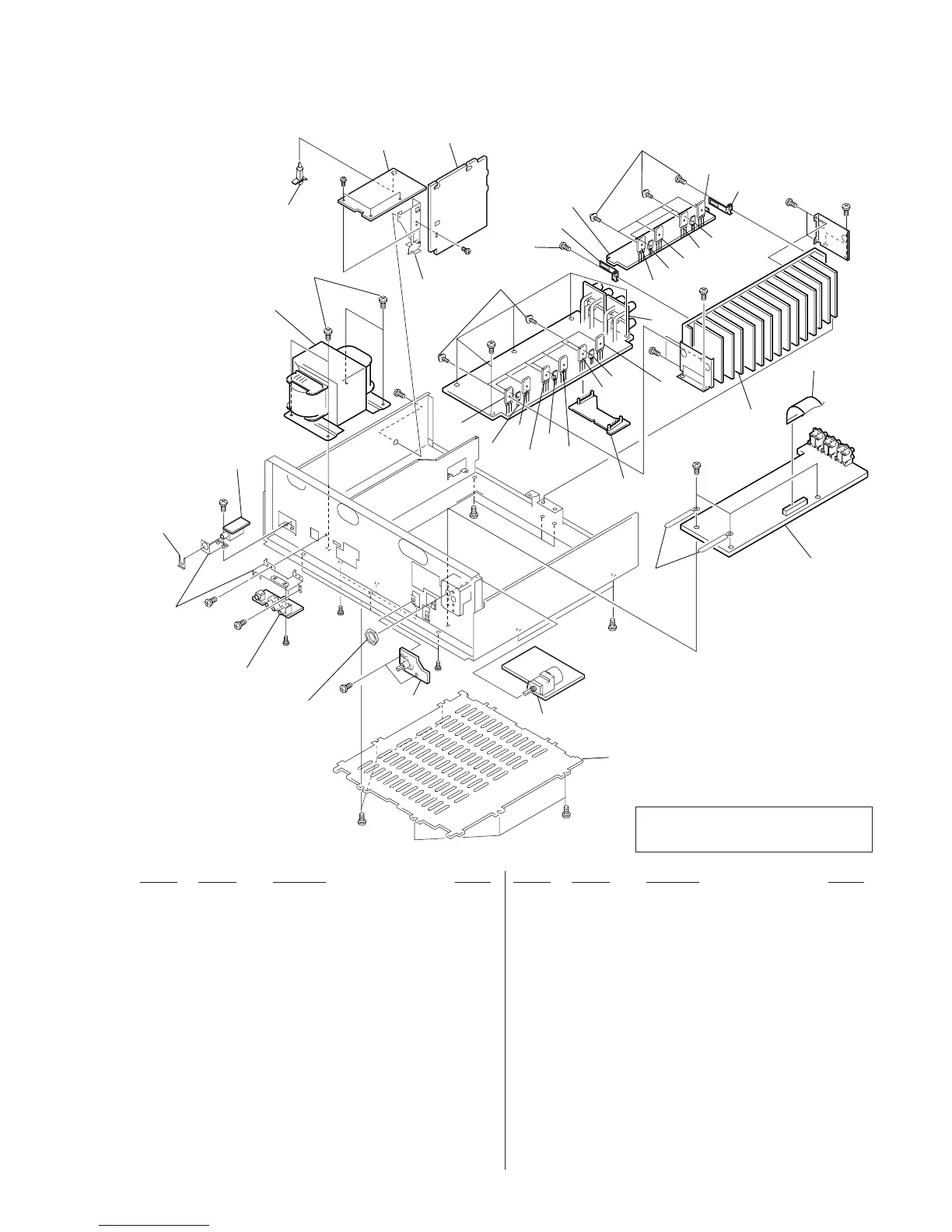

4-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Q506 8-749-010-25 IC MN2488-OPY-M
Q507 8-749-010-26 IC MP1620-OPY-M
Q555 8-729-209-15 TRANSISTOR 2SD2012
Q556 8-749-010-25 IC MN2488-OPY-M
Q557 8-749-010-26 IC MP1620-OPY-M
Q605 8-729-209-15 TRANSISTOR 2SD2012
Q606 8-749-010-25 IC MN2488-OPY-M
Q607 8-749-010-26 IC MP1620-OPY-M
Q705 8-729-209-15 TRANSISTOR 2SD2012
Q706 8-749-010-25 IC MN2488-OPY-M
Q707 8-749-010-26 IC MP1620-OPY-M
Q755 8-729-209-15 TRANSISTOR 2SD2012
Q756 8-749-010-25 IC MN2488-OPY-M
Q757 8-749-010-26 IC MP1620-OPY-M
! T901 1-431-889-11 TRANSFORMER, POWER
* 101 1-670-006-11 H.P BOARD
* 102 1-670-021-11 F-VIDEO BOARD
103 4-900-386-01 SCREW
* 104 1-670-020-11 BALANCE BOARD
* 105 1-670-019-11 VOLUME BOARD
106 3-703-397-01 STOPPER, WIRING
* 107 A-4414-095-A INPUT BOARD, COMPLETE
* 108 4-924-098-31 HOLDER, PC BOARD
109 1-773-285-11 WIRE (FLAT TYPE)(29 CORE)
110 3-905-609-11 SCREW (TRANSISTOR)
* 111 A-4414-112-A REAR AMP BOARD, COMPLETE
* 112 1-669-998-11 AC BOARD
* 113 A-4414-109-A REG BOARD, COMPLETE
* 114 A-4414-094-A AMP BOARD, COMPLETE
* 115 1-670-032-11 JOINT BOARD
Q505 8-729-209-15 TRANSISTOR 2SD2012
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
Q706
not supplied
not supplied
not supplied
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
not supplied
T901
Q705
Q707
Q756
Q755
Q757
Supplied with
J701
Supplied with
RV401
not supplied
not
supplied
101
102
104
105
107
109
110
110
111
112
113
108
110
103
114
115
Q557
Q555
Q556
Q607
Q605
Q606
Q507
Q506
Q505
106
