– 53 –
– 54 –
STR-DB925

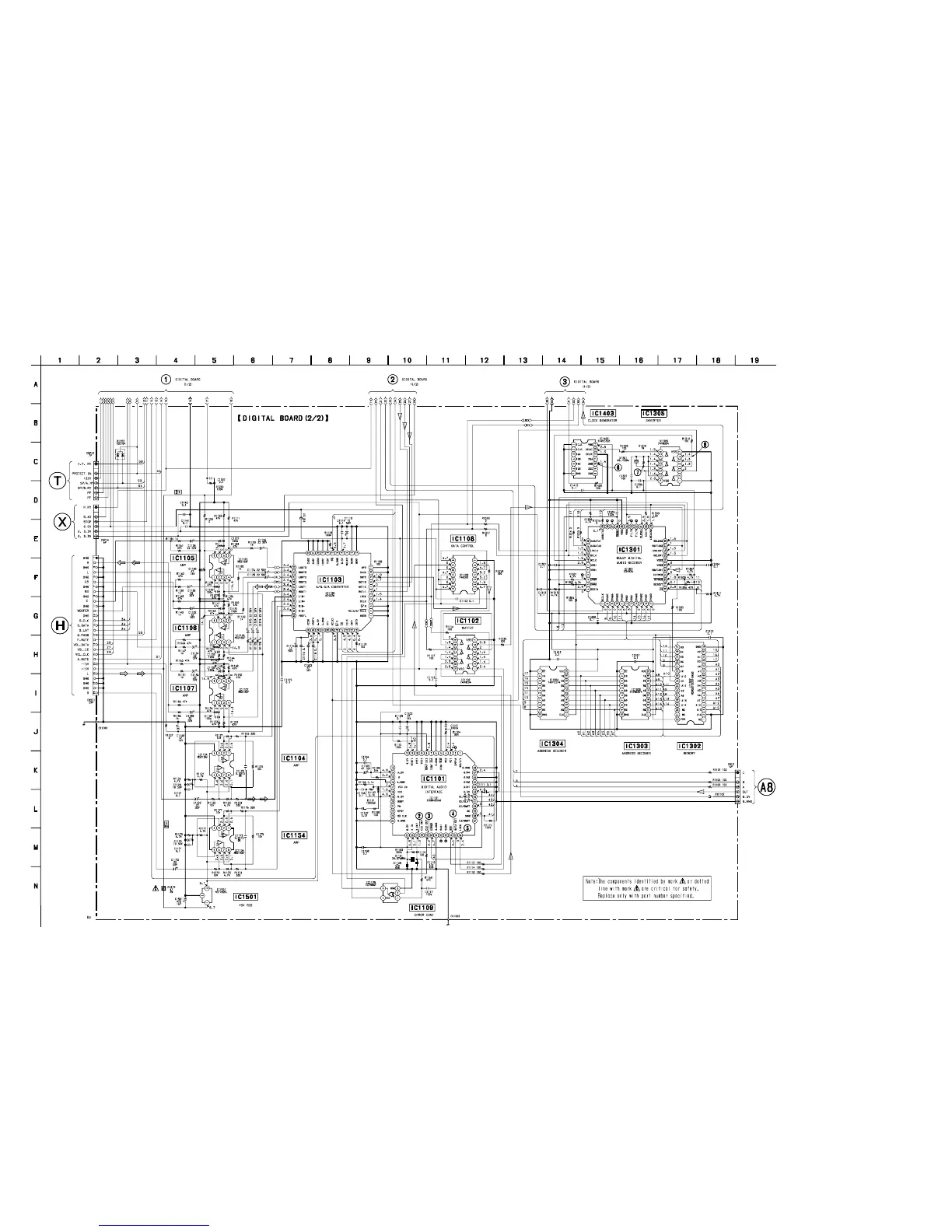

3-22. SCHEMATIC DIAGRAM – DIGITAL (2/2) SECTION –
• See page 16 for Waveforms.
• See page 59 for IC Block Diagrams
(Page 22)
(Page 25)
(Page 17)
(Page 49)
