– 17 –
– 18 –
STR-DB925

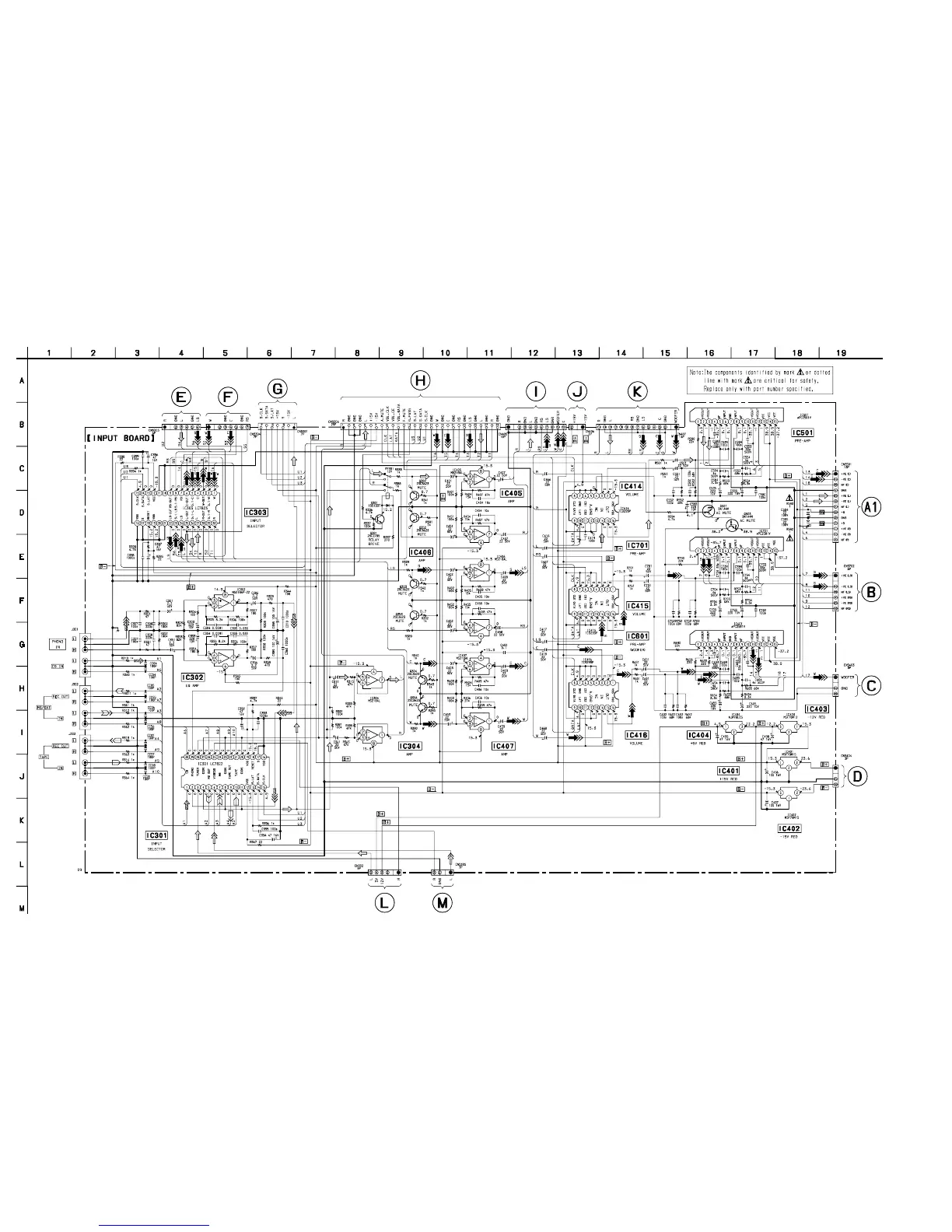

3-3. SCHEMATIC DIAGRAM – INPUT SECTION –
• See page 58 for IC Block Diagrams.
(Page 38) (Page 38)
(Page 53)
(Page 41)
(Page 45) (Page 45) (Page 45)
(Page 21)
(Page 29)
(Page 30)
(Page 22)
(Page 42) (Page 46)
