Sony STR-DB925 Service Manual

– 70 –

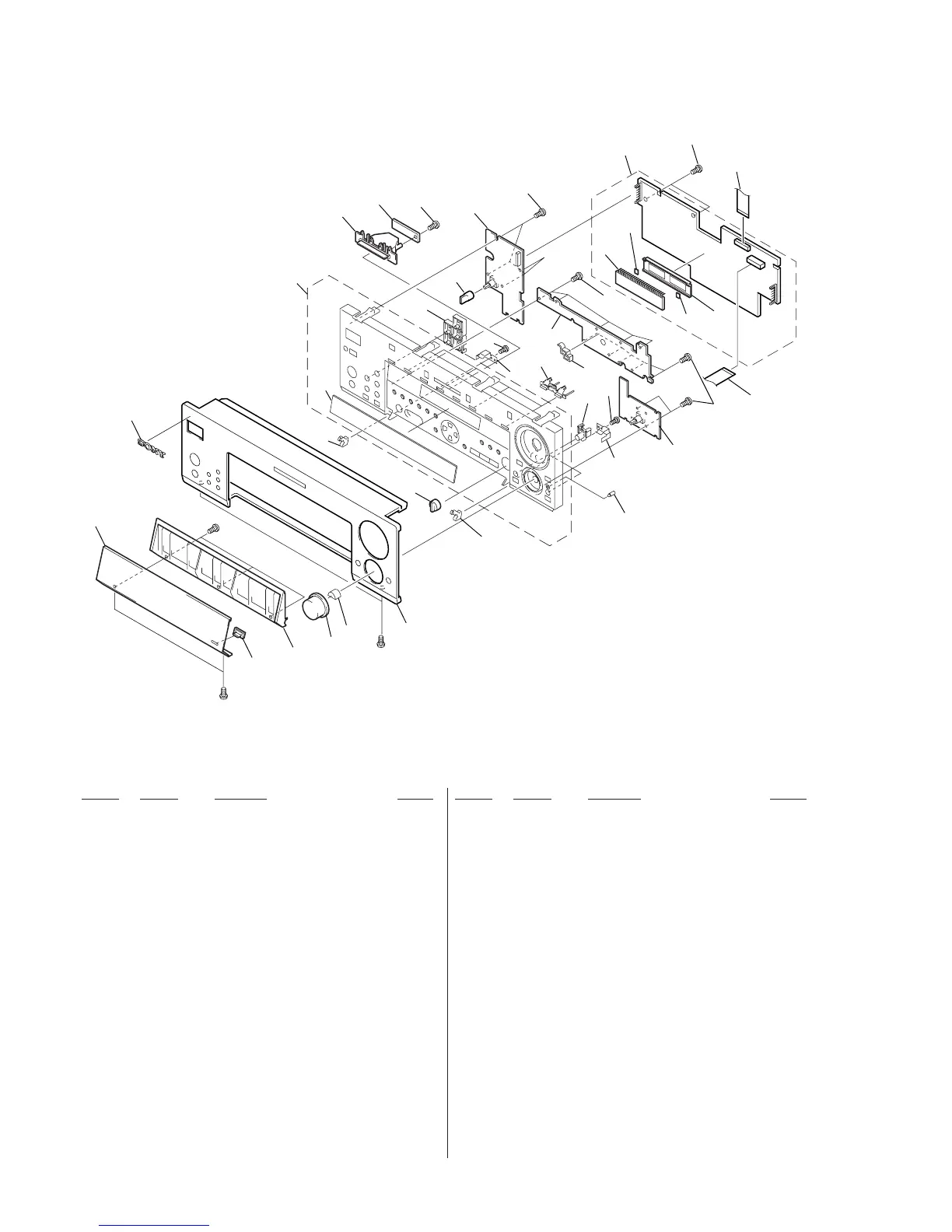

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 65 1-670-017-11 SW BOARD
66 4-900-565-01 INDICATOR (2)
67 4-900-491-01 BUTTON (MUTE)
* 68 1-670-023-11 ROTARY BOARD
69 4-951-620-01 SCREW (2.6X8), +BVTP
* 70 A-4414-097-A DISPLAY BOARD, COMPLETE
71 1-773-163-11 WIRE (FLAT TYPE)(21 CORE)
72 1-769-961-11 WIRE (FLAT TYPE)(11 CORE)
73 X-3375-588-1 ESCUTCHEON (WIN) ASSY
74 3-703-466-00 SPRING (6600)
75 4-942-568-41 EMBLEM (NO.5), SONY
76 4-900-577-01 SPRING (1)(R)
77 4-900-576-01 SPRING (1)(L)
* 78 1-670-024-11 LED BOARD
79 4-999-431-01 LENS, LED
* 80 4-921-941-01 CUSHION (FL)
* 81 4-990-797-01 HOLDER (FL)
FL101 1-517-781-11 INDICATOR TUBE, FLUORESCENT
51 4-900-570-01 ESCUTCHEON (A-LID)(BLACK)
51 4-900-570-11 ESCUTCHEON (A-LID)(SILVER)
52 4-900-492-01 KNOB (LID)
* 53 4-900-569-01 ESCUTCHEON (M-LID)
* 54 4-900-579-01 COVER (STI)
55 X-4948-601-1 KNOB (FUNC) ASSY (BLACK)
55 X-4950-280-1 KNOB (FUNC) ASSY (SILVER)
56 4-900-500-01 KNOB (BAL)(BLACK)
56 4-900-500-11 KNOB (BAL)(SILVER)
57 4-900-568-01 PANEL, FRONT (BLACK)
57 4-900-568-31 PANEL, FRONT (SILVER)
58 4-900-566-01 WINDOW
59 4-900-572-11 FULCRUM (L)
60 4-900-571-11 FULCRUM (R)
61 X-3375-590-1 BASE ASSY, PANEL (BLACK)
61 X-4950-278-1 BASE ASSY, PANEL (SILVER)
62 4-900-563-01 BUTTON (5)(BLACK)
62 4-900-563-11 BUTTON (5)(SILVER)
63 4-957-383-01 KNOB (F14)
* 64 1-670-018-11 SP SW BOARD
51
#3
#2
52
53
58
59
61
62
63
64
65
54
66
67
69
68
76
77
69
69
73
78
FL101
70
71
80
80
81
69
69
72
69
60
56
55
74
75
57
79
69
#3
