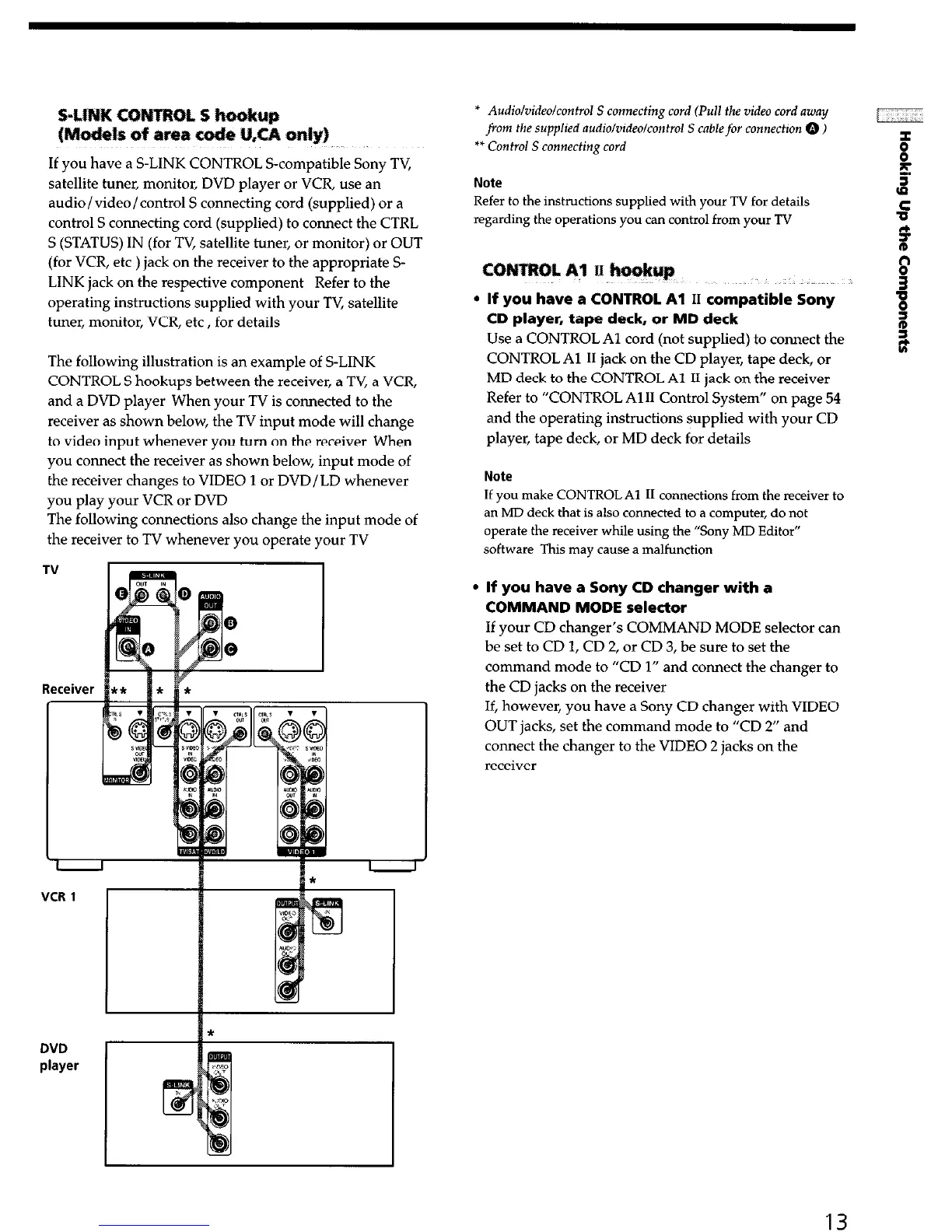

If you have a S-LINK CONTROL S-compatible Sony TV,
satellite tuner, monitor, DVD player or VCR, use an
audio/video/control S
connecting cord (supplied) or a
control S connecting cord (supplied) to connect the CTRL
S (STATUS) IN (for TV, satellite tuner, or monitor) or OUT
(for VCR, etc ) jack on the receiver to
the
appropriate S-
LINK jack on the respective component Refer to the
operating instructions supplied with your TV, satellite
tuner, monitor, VCR, etc , for details
The following illustration is an example of S-LINK
CONTROL S hookups between the receiver, a TV, a VCR,
and a DVD player When your TV is connected to the
receiver as shown below, the TV input mode will change
to video input whenever you turn on the receiver When
you connect
the
receiver as shown below, input mode of
the receiver changes to VIDEO 1 or DVD / LD whenever
you play your VCR or DVD
The following connections also change the input mode of
the receiver to TV whenever you operate your TV
VCR 1
c
DVD
player
* Audiolvideolcontrol S connecting cord (Pull the video cord away
from the supplied audio/video/control S cablefor connection 0)
** Control S connecting cord
Note
Refer to the instructions supplied with your TV for details
regarding the operations you can control from your TV
CO~~AI II
l
If you have a CONTROL Al
II
compatible Sony
CD player, tape deck, or MD deck
Use a CONTROL Al cord (not supplied) to connect the
CONTROL Al II jack on the CD player, tape deck, or
MD deck to the CONTROL Al II jack on the receiver
Refer to “CONTROL Al11 Control System” on page 54
and the operating instructions supplied with your CD
player, tape deck, or MD deck for details
Note
If you make CONTROL Al II connections from the receiver to
an MD deck that is also connected to a computer, do not
operate the receiver while using the “Sony MD Editor”
software This may cause a malfunction
l
If you have a Sony CD changer with a
COMMAND MODE selector
If your CD changer’s COMMAND MODE selector can
be set to CD 1, CD 2, or CD 3, be sure to set the
command mode to “CD 1” and connect the changer to
the CD jacks on the receiver
If, however, you have a Sony CD changer with VIDEO
OUT jacks, set the command mode to “CD 2” and
connect the changer to the VIDEO 2 jacks on the
receiver
13
