Sony STR-DB940 User Manual

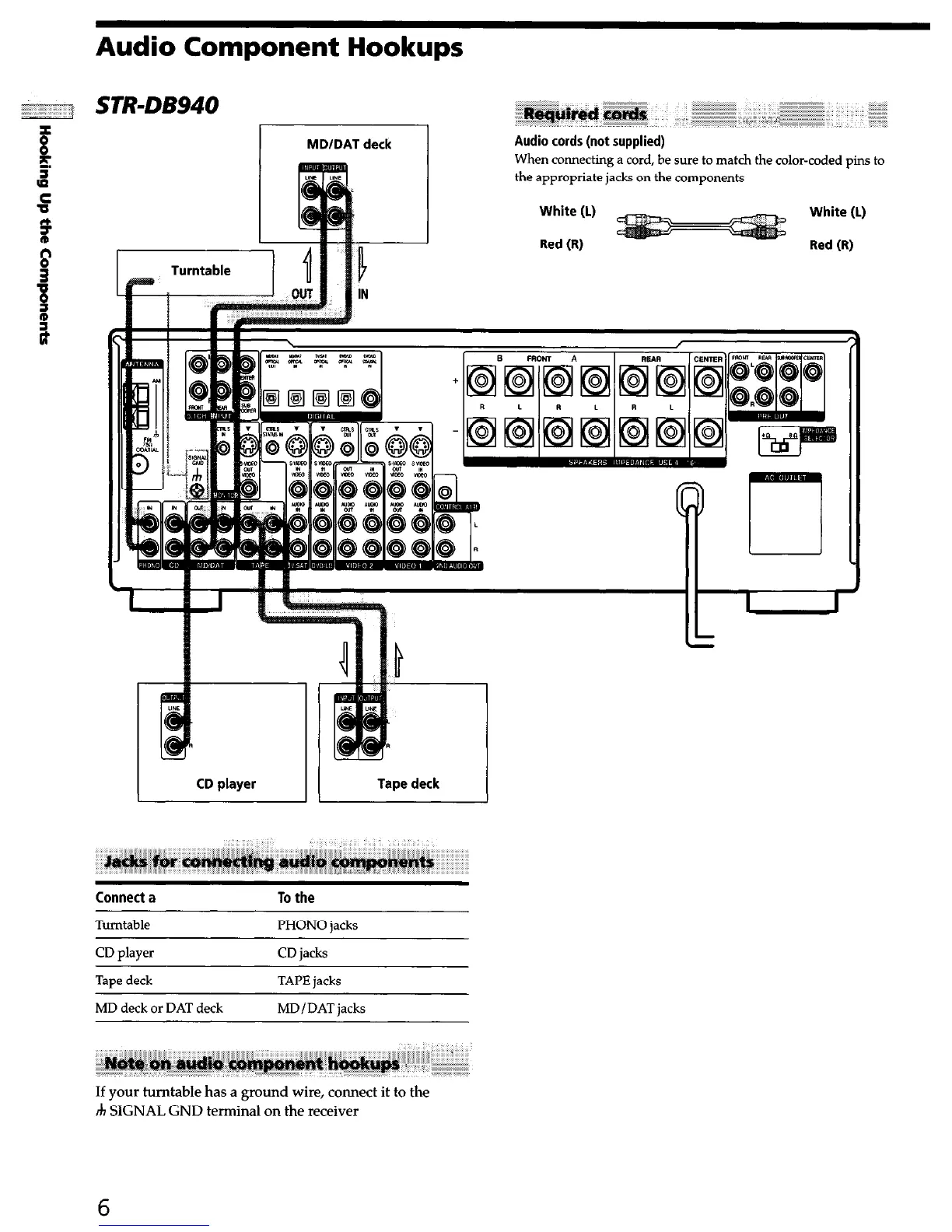

Audio Component Hookups
STR-DB940
MDlDAT deck
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components
( CD player 1 ( Tapedeck
Connect a To the
Turntable
CD player
PHONO jacks
CD jacks
Tape deck TAPE jacks
MD deck or DAT deck MD/DAT jacks
White (1)
Red (R)
White (1)
Red (R)
If your turntable has a ground wire, connect it to the
rh SIGNAL GND terminal on the receiver
6
