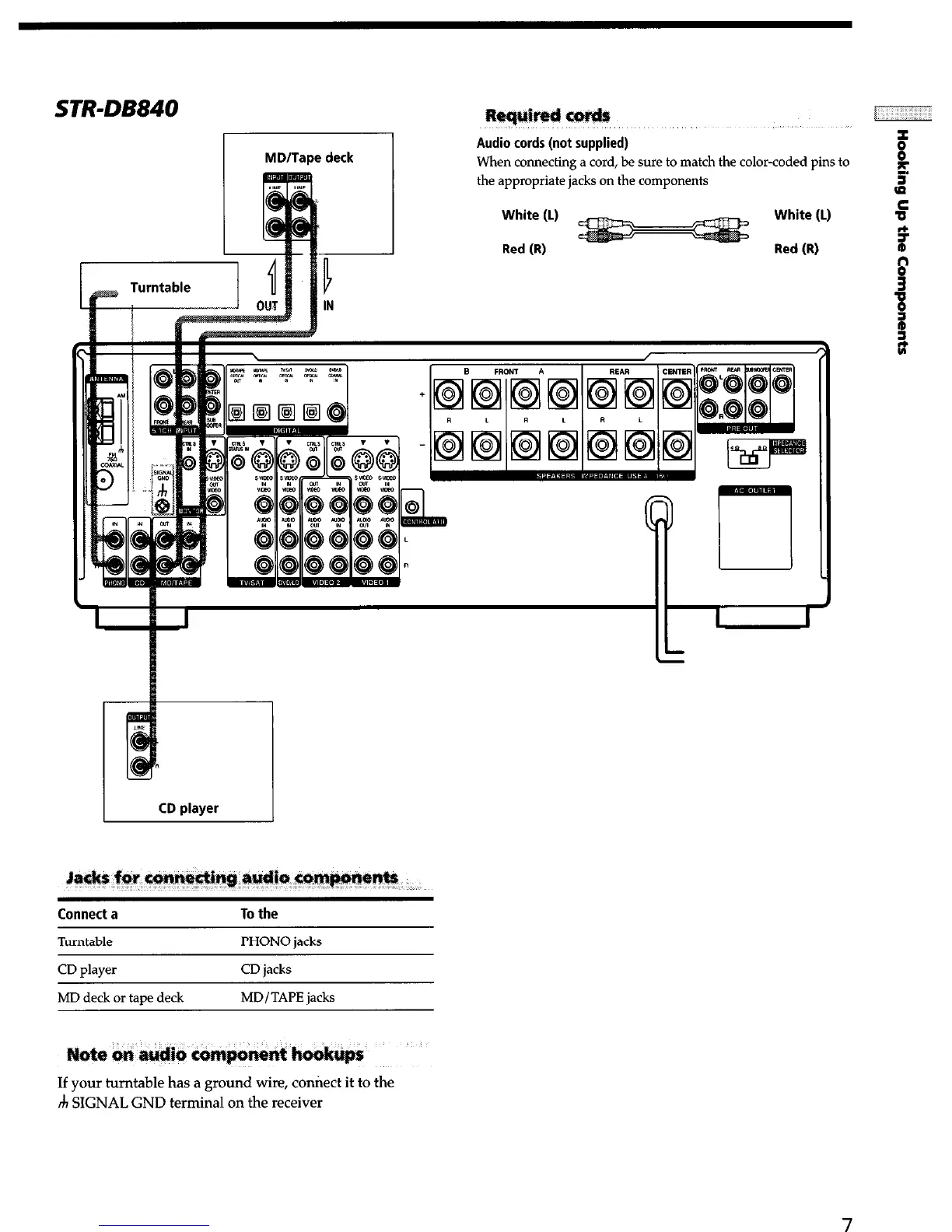

STR-DB840
Audio cords (not supplied)
When connecting a cord, be sure to match the color-coded pins to
the appropriate jacks on the components
White (1)
Red (R)
White (L)
Red (R)
I
CD player
Connect a To the
Turntable
CD player
PHONO jacks
CD jacks
MD deck or tape deck
MD/TAPE jacks
If your turntable has a ground wire, comiect it to the
Ih SIGNAL GND terminal on the receiver
7
