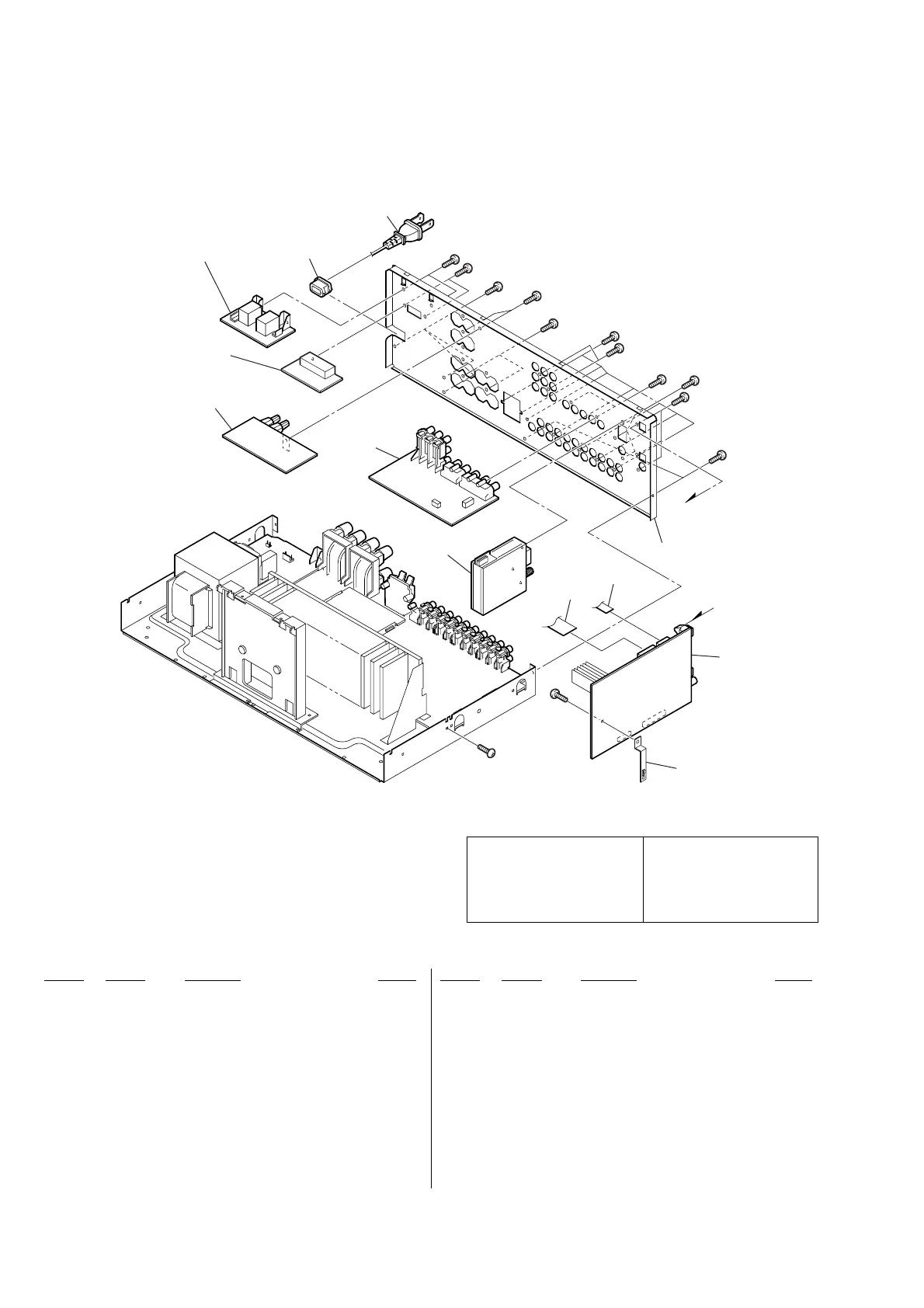

5-3. BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4750-663-A DIGITAL BOARD, COMPLETE (US,CND)
101 A-4750-722-A DIGITAL BOARD, COMPLETE (AEP,UK)
101 A-4750-809-A DIGITAL BOARD, COMPLETE (SP,MY)
101 A-4750-834-A DIGITAL BOARD, COMPLETE (AUS)
101 A-4750-840-A DIGITAL BOARD, COMPLETE (E2)
101 A-4752-713-A DIGITAL BOARD, COMPLETE (KR)
101 A-4753-052-A DIGITAL BOARD, COMPLETE (AR)
102 1-769-937-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP,UK)
102 1-773-001-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK)
103 1-769-879-11 WIRE (FLAT TYPE) (7 CORE)
* 104 3-703-244-00 BUSHING (2104), CORD
105 A-4750-662-A VIDEO BOARD, COMPLETE (EXCEPT AEP,UK)
105 A-4750-721-A VIDEO BOARD, COMPLETE (AEP,UK)
0 106 1-696-847-22 CORD, POWER (AUS)
0 106 1-769-079-23 CORD, POWER (KR)
0 106 1-777-071-23 CORD, POWER (AEP,UK,E2,SP,MY)
0 106 1-783-820-11 CORD, POWER (US,CND)
0 106 1-783-941-12 CORD, POWER (AR)
TN1 1-693-577-13 TUNER PACK (ANTENNA) (US,CND,E2,AR)
TN1 1-693-578-21 TUNER PACK (ANTENNA) (AEP,UK)
TN1 1-693-580-24 TUNER PACK (ANTENNA) (AUS,KR,SP,MY)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
not supplied
(BRIDGEABLE board)
not supplied
(AC SELECT board)
not supplied
(SPEAKER board)
101
102
103
105
104
106
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
A
A
#1
#1
not supplied
not supplied
TN1
The components identif ied by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
