Sony STR-DE597 - Chassis Section

43
STR-DE597
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 X-4953-448-1 FOOT ASSY
152 4-232-237-01 FOOT (DIA.30)
153 4-977-358-01 CUSHION
154 4-233-263-01 SUB MOLD (DE9)
155 A-4750-646-A STANDBY BOARD, COMPLETE (US,CND)
155 A-4750-714-A STANDBY BOARD, COMPLETE
(EXCEPT US,CND,E2)
155 A-4750-838-A STANDBY BOARD, COMPLETE (E2)
156 4-249-675-01 +BV SUMITITE S 4X6 ROUND
157 A-4750-650-A SB AMP BOARD, COMPLETE
158 3-905-609-01 SCREW (TRANSISTOR)
159 A-4750-642-A MAIN BOARD, COMPLETE (US,CND,E2)
159 A-4750-713-A MAIN BOARD, COMPLETE (EXCEPT US,CND,E2)
160 3-970-608-01 SUMITITE (B3), +BV
0 F901 1-532-464-32 FUSE (T2.5AL/250V) (EXCEPT US,CND,E2)
0 F901 1-532-465-32 FUSE (T3.15AL/250V) (E2)
0 F901 1-533-454-12 FUSE, GLASS TUBE (DIA.5) (6.3A/125V)
(US,CND)
Q503 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q504 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q572 8-729-026-08 TRANSISTOR 2SC4495
Q573 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q574 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q603 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q604 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q653 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q654 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q703 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q704 8-749-010-26 TRANSISTOR MP1620-OPY-M
Q753 8-749-010-25 TRANSISTOR MN2488-OPY-M
Q754 8-749-010-26 TRANSISTOR MP1620-OPY-M
0 T901 1-439-550-11 TRANSFORMER, POWER (EXCEPT US,CND,E2)
0 T901 1-439-553-11 TRANSFORMER, POWER (E2)
0 T901 1-439-611-11 TRANSFORMER, POWER (US,CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
151
151
152
153
152
153
154
155
156
160
160
160
160
160
156
157
158
158
159
not supplied
not supplied
not supplied
not supplied
T901
#1
#1
#1
#1
Q753
Q654
Q653
Q704
Q703
Q504
Q503
Q754
Q604
Q572
Q574
Q573
Q603
#1
F901

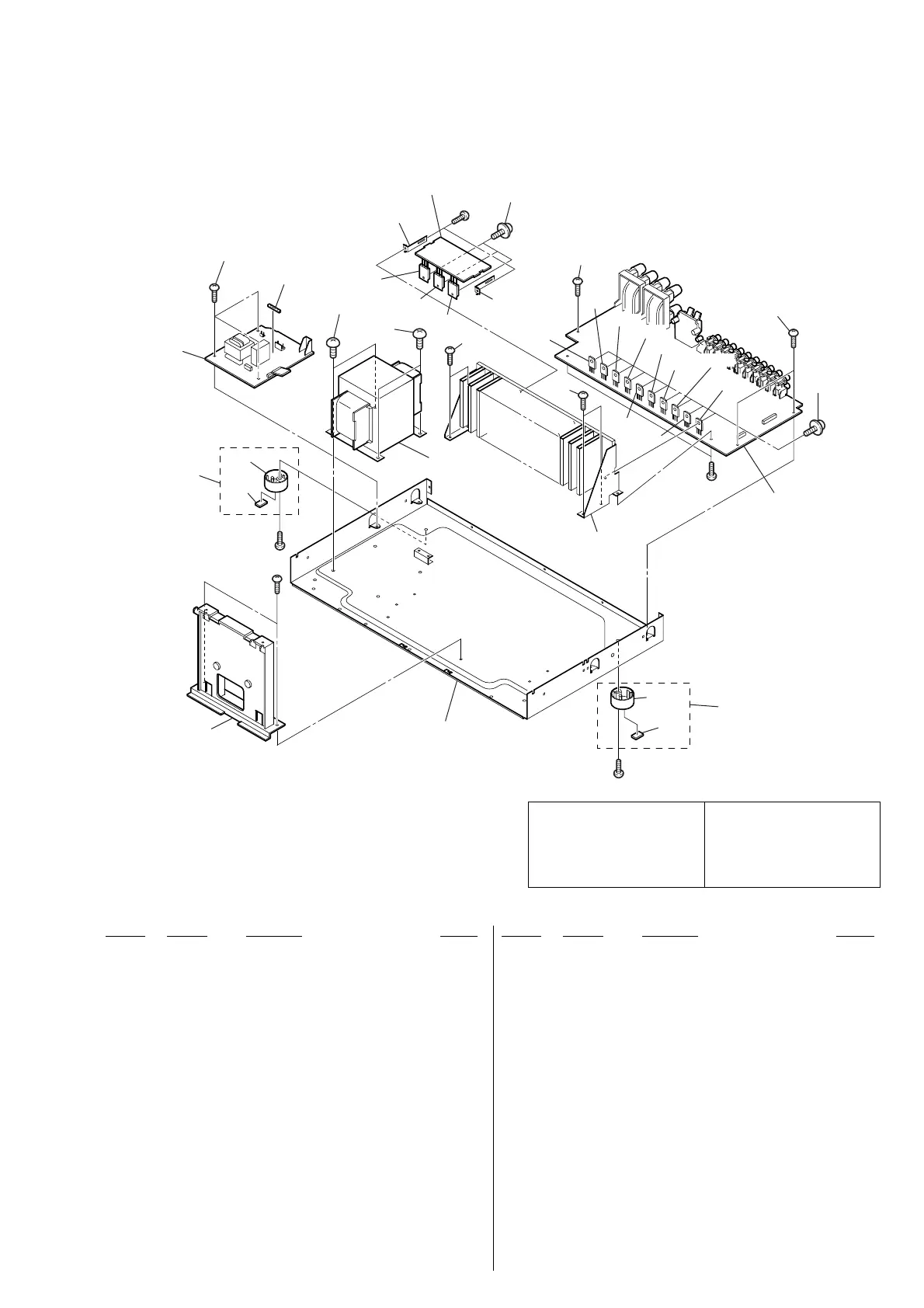

5-4. CHASSIS SECTION
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
