STR-DE875/DE975

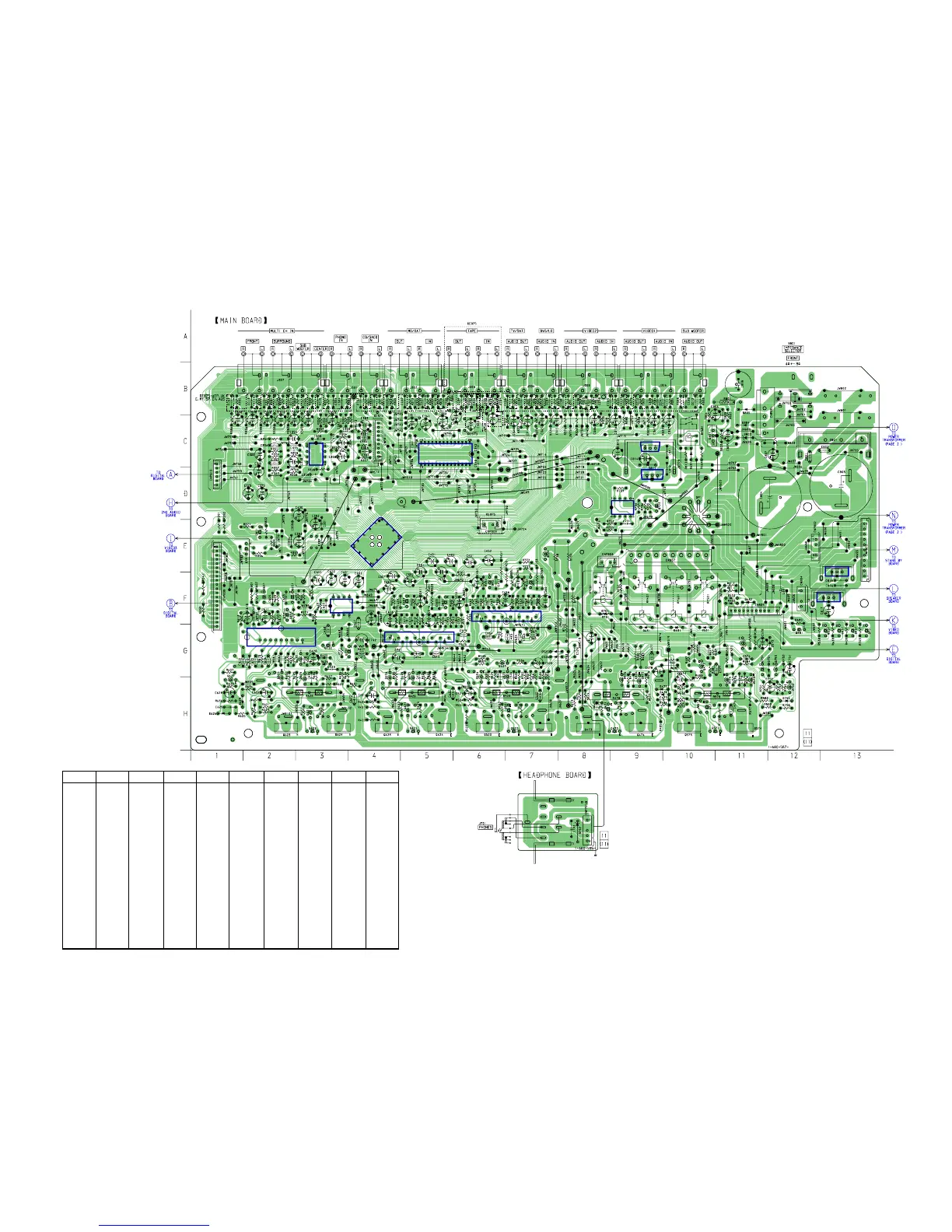

3-8. PRINTED WIRING BOARD – MAIN SECTION –
• See page 8 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D425 G-3
D426 G-3
D431 G-9
D432 F-11
D475 H-9
D476 H-10
D525 G-7
D526 G-7
D531 G-10
D532 F-11
D575 G-12
D576 G-11
D625 H-2
D626 H-1
D631 G-10
D632 F-11
D681 C-10
D701 F-8
D751 G-12
D752 H-12
Ref. No. Location Ref. No. Location
D753 G-12
D801 C-13
D802 C-11
D803 C-12
D804 C-11
D805 B-11
D811 D-9
IC301 C-3
IC302 C-5
IC303 E-4
IC304 F-3
IC305 D-9
IC501 F-6
IC551 G-5
IC601 G-2
IC811 C-9
IC812 D-9
IC814 F-13
IC815 E-13
Q391 E-2
Q401 F-5
Q421 H-5
Q422 H-5
Q423 H-4
Q424 H-5
Q425 H-5
Q426 H-4
Q427 G-3
Q431 G-13
Q451 F-6
Q471 H-8
Q472 H-9
Q473 H-8
Q474 H-9
Q475 H-9
Q476 H-9
Q477 G-10
Q501 F-5
Q521 H-7
Ref. No. Location
Q522 H-7
Q523 H-6
Q524 H-7
Q525 H-7
Q526 H-6
Q527 G-6
Q531 G-13
Q551 F-7
Q571 H-10
Q572 H-10
Q573 H-10
Q574 H-11
Q575 H-11
Q576 H-11
Q577 G-11
Q601 F-2
Q621 H-3
Q622 H-3
Q623 H-2
Q624 H-3
Q625 H-3
Q626 H-2
Q627 H-1
Q631 G-13
Q651 F-2
Q681 G-12
Q701 G-13
Q721 G-4
Q722 G-3
Q723 D-9
Q724 E-7
Q751 G-11
Q752 H-12
Q753 G-12
Q771 F-2
Q801 C-10
Q821 E-2
IC301
IC302
IC812
IC305
IC811
IC815
IC814
IC601
IC551
IC501
IC304
IC303
7
7
CNP813
(PAGE 27)
CNP817
(PAGE 25)
CNP254
(PAGE 23)
CNP507
(PAGE 12)
CNS501
(PAGE 12)
CN816
(PAGE 25)
CNP104
(PAGE 25)
CNS502
(PAGE 12)
